Summary of Contents for Sport-thieme 111 4515

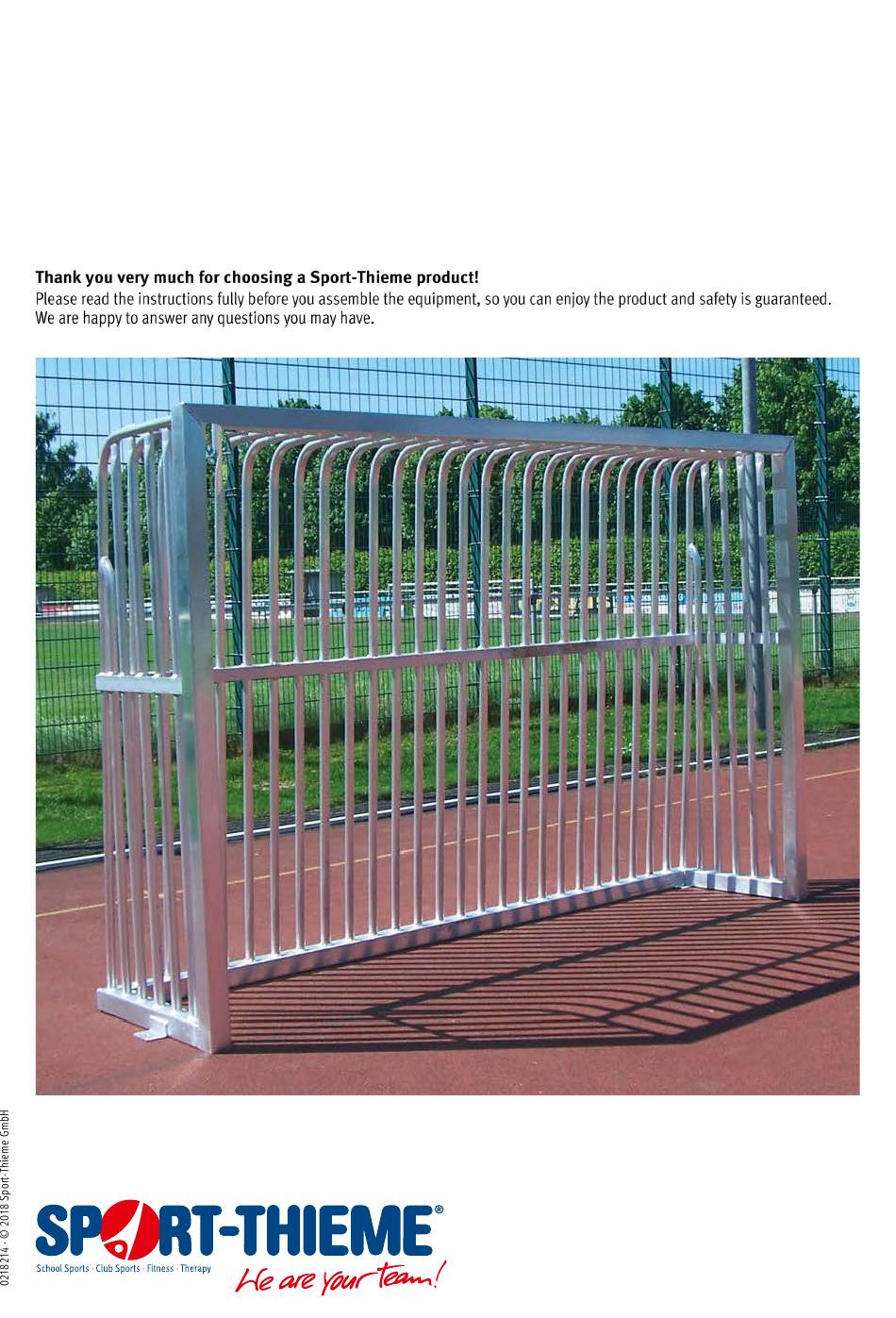

- Page 1 Assembly instructions Art.-Nr.: 111 4515 111 4528 111 4531 111 4616 111 4629 Sport-Thieme ® Fully Welded Leisure Goal D-38367 Grasleben · Germany sport-thieme.com · info @sport-thieme.com Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921...
- Page 2 Assembly instructions for Art.-Nr. 111 4515/111 4528/111 4531/111 4616/111 4629 This goal is completely welded so that it need not to be assembled. However, it has always to be protected against overturning according to DIN EN 15312 (see the information in chapter„ground fixing“).
- Page 3 Art.-Nr. 111 4515/111 4528/111 4531/111 4616/111 4629 b) Top view of ground fixing for playground goal 3.00 x 2.00 m: Art.-Nr. 111 4515 und 111 4616 c) Top view of ground fixing for playground goal 3.00 x 2.00 m: Art.-Nr. 111 4531, 111 4629 d) Top view of ground fixing for playground goal 5.00 x 2.00 m: Art.-Nr.
