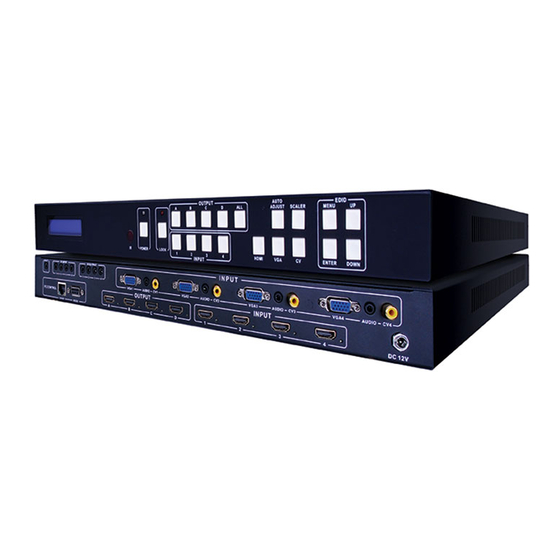

- Page 1 HDMI® 4x4 M A T R I X with Video Wall and Seamless Multiview Vanco Part Number EVMX44SL HDMI® 4 x 4 Multi- format Matrix with Video Wall and Seamless Multiview www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 FEATURES INTRODUCTION The EVMX44SL is a high-performance matrix with multiple modes to produce seamless matrix switching, as well as having multiview, and video wall modes. The switching of the matrix mode allows the speed of switching to be controlled allowing inputs to fade in/fade Multiview mode allows all of the sources to be seen on the displays equally in Quadview, or in PIP with a main source being larger than the other smaller sources.
-
Page 4: Specifications
SPECIFICATIONS Input Ports ..............4×HDMI, 4xVGA, 4xRCA, ................1×RS-232, 1xRJ-45(Control), ................5×IR RX 4xAudio Output Ports ............4×HDMI, 4xIR TX Input Resolutions ............Up to 1920x1080P@60Hz Output Resolutions ............ Up to 1920x1080P@60Hz Control ..............IR , RS-232 , TCP/TP , Manual Buttons ESD Protection ............ -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS 2 3 4 1. LCM: Displays the information of each input and output setting and EDID management. 2. IR: IR Receiver window (accepts the remote control signal of this device only). 3. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in ‘Standby’... -
Page 6: Connection Diagram
7. Connect the power supply to an available electrical outlet and power on the device. NOTICE 1. Vanco High Speed HDMI cables are strongly recommended for use with this product to ensure best results. 2. Incorrect placement of IR Blaster and Receiver may result in the failure of the unit. Please check carefully before plugging in the IR accessories into the respective IR sockets. -
Page 7: Remote Control
EDID EDID MODE EDID Description 1080i, 2CH AUDIO 1080p, 2CH AUDIO DVI 1920X1080 REMOTE CONTROL 1. Press this button to power on the matrix or set it to standby mode. 2. Output selection. Letters correspond with the outputs on the matrix. 3. - Page 8 PC CONTROLLER USER GUIDE Installation The matrix controller is a green software. Simply copy MatrixController.exe to the C which is used to control the Matrix by RS232 COM port or TCP/IP to complete installation. Note: All software and firmware for this product can be found on the product webpage at vanco1.com Preparation •...
- Page 9 PC CONTROLLER USER GUIDE CONTINUED EDID control page 1. Select the needed EDID to input port and click set button the EDID will write to the selected HDMI input ports. Matrix page 1. LED which display Input number for respective Output 2.
-
Page 10: Troubleshooting
4. If you are still encountering issues, attempt the “hot-plug concept. With all of the HDMI cables disconnected, turn on the source and plug in the HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. -
Page 11: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
