Guide Rail-Mounted Installation (Combined)
•
Before installation, prepare a standard 35 mm guide rail and secure it.
•
The recommended effective length of the guide rail is 360 mm or greater.
•
Ensure that the SIM card slot on the SmartLogger is not blocked.

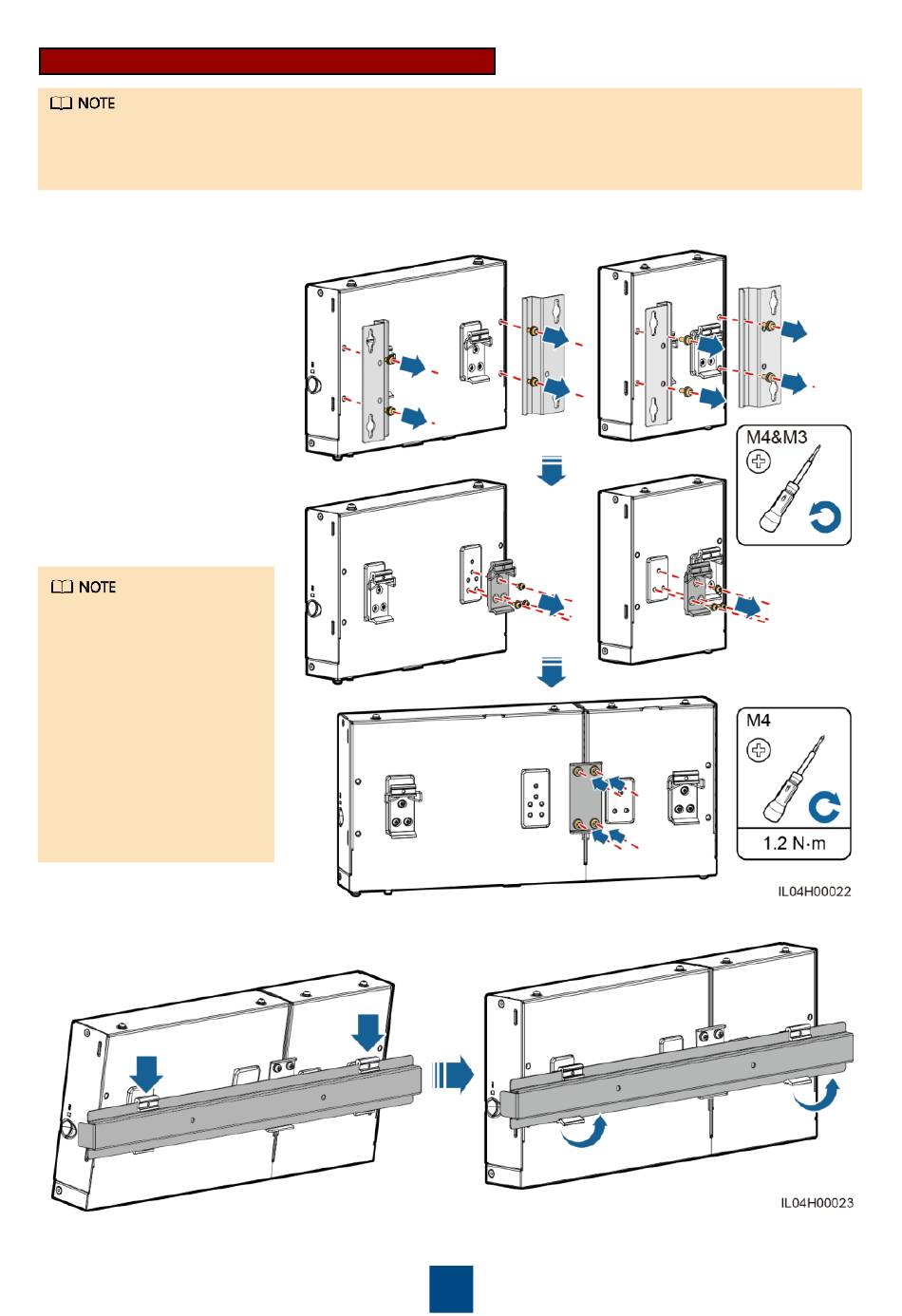

1. Connect the SmartLogger to the SmartModule using a connecting plate.
If the SmartLogger and
SmartModule have been
combined before delivery,
you only need to remove
the mounting ears and
guide rail clamps in the
middle. You do not need
to use a connecting plate
to connect the
SmartLogger and
SmartModule.
2. Install the SmartLogger and SmartModule.
