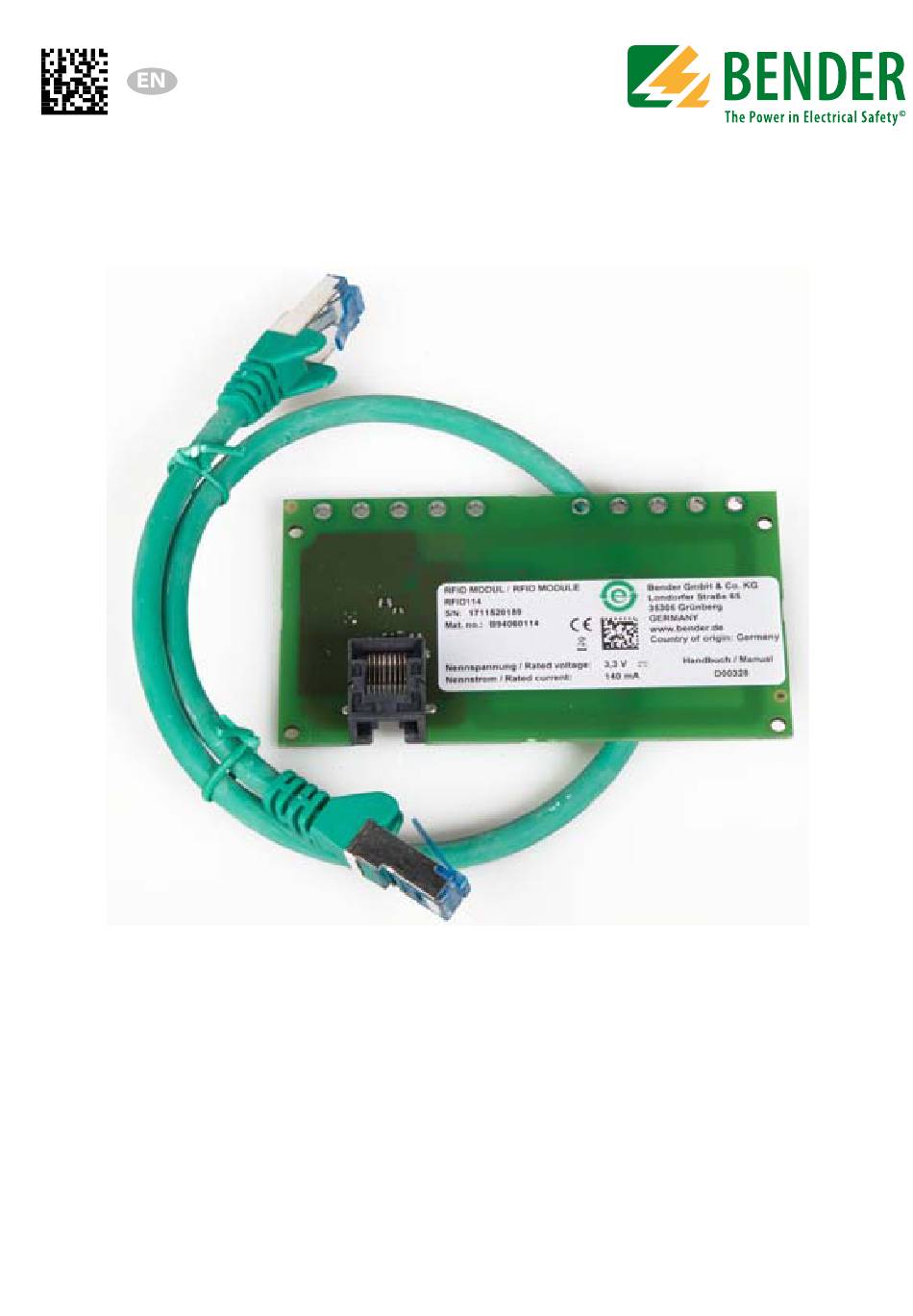

- Page 1 Manual RFID114 For use in combination with charge controllers used in electric vehicle charging stations, wall boxes or street light charging points RFID114_D00328_00_M_XXEN/04.2018...
- Page 2 Bender GmbH & Co. KG P.O. Box 1161 • 35301 Grünberg • Germany Londorfer Str. 65 • 35305 Grünberg • Germany Tel.: +49 6401 807-0 • Fax: +49 6401 807-259 E-mail: info@bender.de • www.bender.de © Bender GmbH & Co. KG All rights reserved.
-
Page 3: Table Of Contents
Table of Contents 1. Important information ..................5 How to use this manual ................. 5 Technical support: service and support ........... 5 Delivery conditions ..................6 Inspection, transport and storage .............. 6 Disposal ....................... 6 Intended use ...................... 6 2. RFID module ..................... 8 Dimensions for mounting ................ - Page 4 Table of Contents RFID114_D00328_00_M_XXEN/04.2018...
-
Page 5: Important Information
0700BenderHelp (telephone and fax) support@bender-service.de E-mail: *Available from 7.00 a.m. to 8.00 p.m. 365 days a year (CET/UTC +1) 1.3 Delivery conditions Bender sale and delivery conditions apply. These can be obtained from Bender in printed or electronic format. RFID114_D00328_00_M_XXEN/04.2018... -
Page 6: Inspection, Transport And Storage
Abide by the national regulations and laws governing the disposal of this de- vice. Ask your supplier if you are not sure how to dispose of the old equip- ment. For more information on the disposal of Bender devices, refer to our homepage at www.bender.de -> Service & support. 1.6 Intended use This manual provides a description of an RFID module which may only be used in combination with Bender charge controllers. -
Page 7: Rfid Module

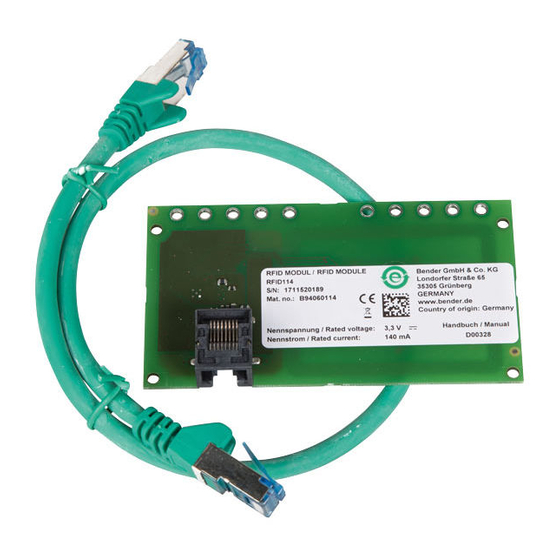

2. RFID module The RFID module shown below contains an antenna. 102.88 Note: Tolerance acc. to ISO 2768 - m All dimensions in mm It is a PCB that should be placed under a metal-free charging system enclo- sure. The RFID module must be mounted at a distance of at least 20 mm from any significant metal surface or metal parts to ensure an optimum reading performance of the RFID module. -
Page 8: Dimensions For Mounting
RFID module The RFID frequency is 13.56 MHz. Bender uses the PN532 Near Field Com- munication (NFC) controller for contactless communication, which supports virtually all RFID/NFC communication means on this frequency. Currently only passive tags with a UID are read. Further functionality is possible upon re- quest. -
Page 9: Operation
RFID module 2.2 Operation The charging process is initiated by holding a valid RFID card close to the an- tenna of the RFID module. The charging process can be finished by holding the RFID card close to the RFID module again. RFID114_D00328_00_M_XXEN/04.2018... -
Page 10: Technical Data
Technical data 3. Technical data 3.1 Tabular data Insulation coordination acc. to IEC 60664-1/IEC 60664-3 Rated voltage .................................12.5 V Overvoltage category..............................III Pollution degree................................3 Rated impulse withstand voltage........................... 800 V Rated insulation voltage............................12.5 V Altitude..............................≤ 2000 m AMSL Nominal voltage/nominal current Nominal voltage..............................DC 3.3 V Nominal voltage tolerance ............................ - Page 11 Mechanical conditions acc. to IEC 60721: Stationary use (IEC 60721-3-3) ..........................3M4 Transport (IEC 60721-3-2)............................2M2 Long-term storage (IEC 60721-3-1)........................1M3 Connection Connection to charge controller........................via RJ45 cable Maximum cable length ..............................3 m Other Degree of protection..............................IP00 Maximum reading distance ..........................100 mm Weight ..................................25 g RFID114_D00328_00_M_XXEN/04.2018...
-
Page 12: Standards, Approvals, Certifications
EN 300 330 V2.1.1: 2017 Subject to change! The specified standards take into account the edition valid until 04.2018 unless otherwise indicated. 3.3 Ordering information Type Art. No. RFID114 (RJ45 cable (length 500 mm) included) B94060114 RFID114_D00328_00_M_XXEN/04.2018... -
Page 13: Declaration Of Conformity
Technical data 3.4 Declaration of conformity Bender GmbH & Co. KG Postfach 1161 • 35301 Grünberg/Germany Londorfer Straße 65 • 35305 Grünberg/Germany Phone: +49 6401 807-0 • Fax: +49 6401 807-259 E-Mail: info@bender.de • www.bender.de EG - K o n f o r m i t ä t s e r k l ä r u n g... - Page 14 Technical data Bender GmbH & Co. KG Postfach 1161 • 35301 Grünberg/Germany Londorfer Straße 65 • 35305 Grünberg/Germany Phone: +49 6401 807-0 • Fax: +49 6401 807-259 E-Mail: info@bender.de • www.bender.de Anlage - Typenliste der EG-Konformitätserklärung RFID11x Annex - Typelist of EC-declaration RFID11x Produktgruppe Art.-Nr.
- Page 16 Bender GmbH & Co. KG P.O. Box 1161 • 35301 Grünberg • Germany Londorfer Str. 65 • 35305 Grünberg • Germany Tel.: +49 6401 807-0 • Fax: +49 6401 807-259 E-Mail: info@bender.de • www.bender.de Group Photos: Bender archives...
