Kurzanleitung DE
Quick-start guide EN
HMI140 / HMI145 / HMI150
Schnittstellen-Module für Bender-Laderegler
Interface modules for Bender charge controllers
HMI1xx_D00481_00_Q_DEEN/12.2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMI140 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bender HMI140

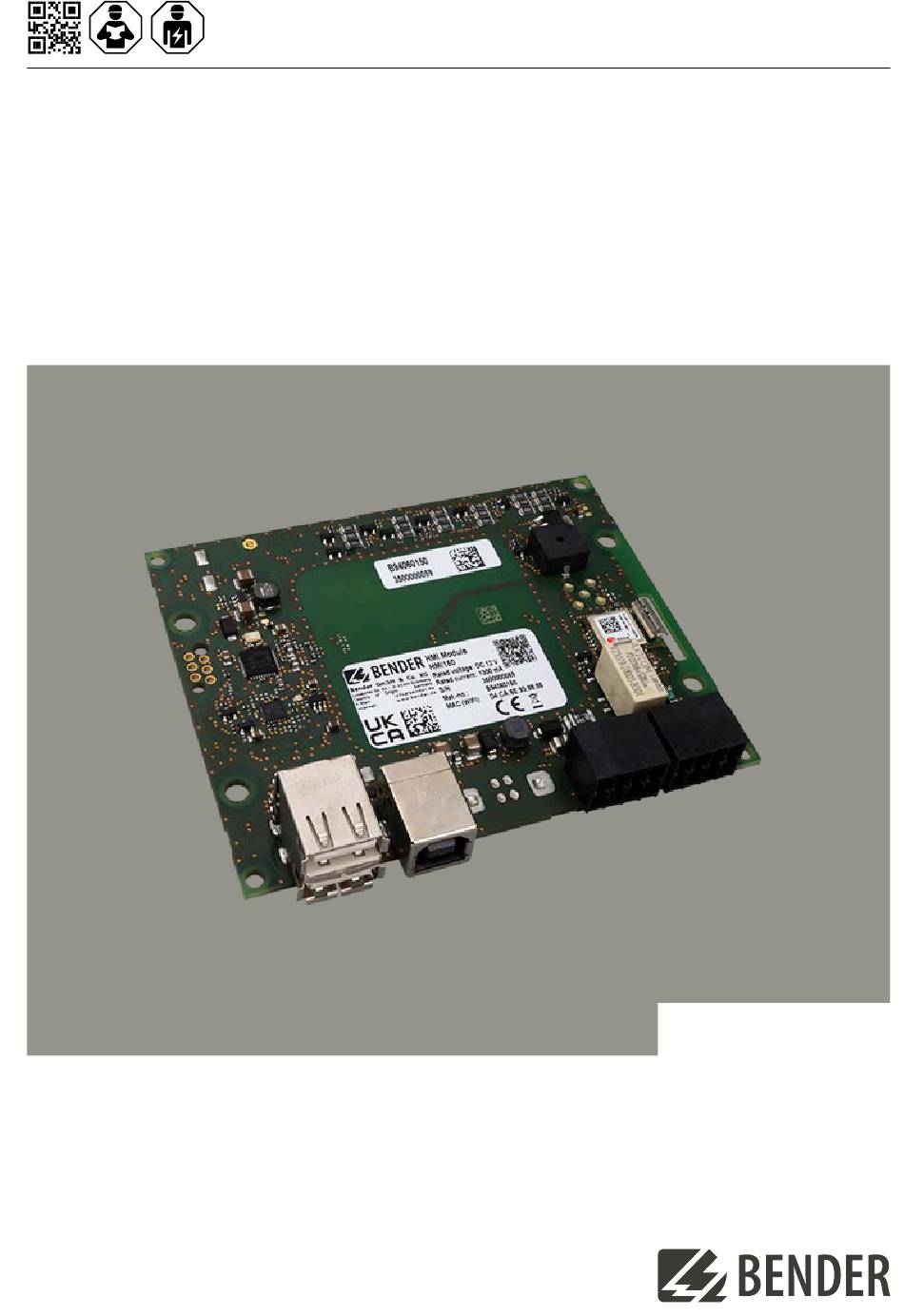

  • Page 1 Kurzanleitung DE Quick-start guide EN HMI140 / HMI145 / HMI150 Schnittstellen-Module für Bender-Laderegler Interface modules for Bender charge controllers HMI1xx_D00481_00_Q_DEEN/12.2023...
  • Page 2 HMI140 / HMI145 / HMI150 HMI140 / HMI145 / HMI150 HMI140 / HMI145 / HMI150 Bestandteil Geräte- Part of the device documentation dokumentation sind neben dieser in addition to this quickstart is the Kurzanleitung „Sicher- enclosed “Safety instructions for heitshinweise für...
  • Page 3 USB cable. The module must only be used in combina- Verbindung mit Ladereglern* der Firma Bender GmbH & tion with charge controllers* from Bender GmbH & Co. Co. KG verwendet werden, die den Betrieb des HMI- KG that support the operation of the HMI module. Any Moduls unterstützen.
  • Page 4: Montage

    HMI140 / HMI145 / HMI150 Maße Dimensions Maßangaben in mm Dimensions in mm Montage Mounting Ø 3,1 Ø 4,1 LED1 LED6 16,5 LED2 LED7 16,5 LED11 LED8 LED3 16,5 LED9 LED4 16,5 LED10 LED5 28,5 28,5 S1: Umgebungslichtsensor S1: Ambient light sensor...
  • Page 5: Voltage Supply Connection

    HMI140 / HMI145 / HMI150 Empfehlung zur Befestigung, Ø3,1: Fastening recommendation, Ø3.1: Schrauben: 2,5 mm Screws: 2.5 mm Kopf: max. 5 mm Head: max. 5 mm Verlängerungsbolzen: max. 5,1 mm Extension studs: 5.1 mm Drehmoment: 0,36 Nm Torque: 0.36 Nm Empfehlung zur Befestigung, Ø4,1:...
  • Page 6: Tabular Data

    Spannungsbereich ............11,4…15,8 V Voltage range ..............11.4…15.8 V Max. Leistungsaufnahme ohne USB-Last HMI140 / 145 / 150 ... Max. power consumption without USB load HMI140 / 145 / 150 .....................3,5 / 7,5 / 9,5 W ..................3.5 / 7.5 / 9.5 W Max.
  • Page 7: Eu-Konformitätserklärung

    Konformitätserklärungen Declarations of conformity EU-Konformitätserklärung EU Declaration of Conformity Hiermit erklärt die Bender GmbH & Co. KG, dass Hereby, Bender GmbH & Co. KG declares that the das unter die Funkanlagenrichtlinie fallende device covered by the Radio Directive complies Gerät der Richtlinie 2014/53/EU entspricht. Der with Directive 2014/53/EU.
  • Page 8 Alle Rechte vorbehalten. 35305 Grünberg Nachdruck und Vervielfältigung nur mit Germany Genehmigung des Herausgebers. © Bender GmbH & Co. KG, Germany Subject to change! The specified Tel.: +49 6401 807-707 All rights reserved. standards take into account the edition emobility@bender.de...
