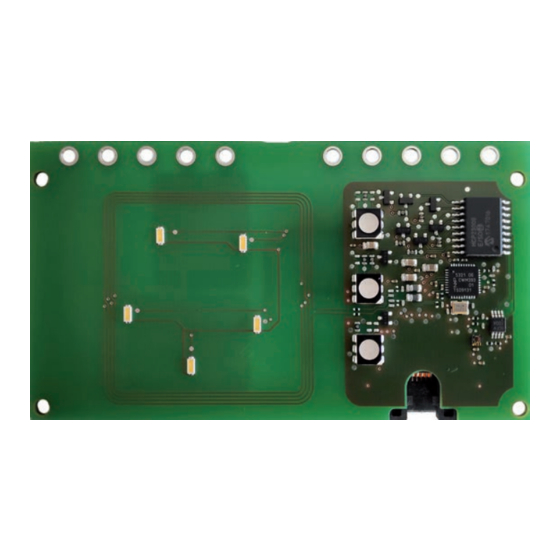

- Page 1 Manual EN RFID117-L1 For use in combination with charge controllers used in electric vehicle charging stations, wall boxes and street light charging points Illustration similar RFID117-L1_D00422_01_M / 08.2023...
-
Page 2: Table Of Contents
Indication of important instructions and information...............3 Signs and symbols............................3 Service and Support............................3 Training courses and seminars........................3 Delivery conditions............................4 Inspection, transport and storage......................4 Warranty and liability.............................4 Disposal of Bender devices..........................4 1.10 Safety..................................5 Device-specific safety instructions..............6 Function.......................7 Intended use..............................7 Functional description........................... 7 LED status................................ -
Page 3: General Information
Recycling RoHS directives Service and Support Information and contact details about customer service, repair service or field service for Bender devices are available on the following website: Fast assistance | Bender GmbH & Co. KG. Training courses and seminars Regular face-to-face or online seminars for customers and other interested parties: www.bender.de >... -
Page 4: Delivery Conditions
General information Delivery conditions The conditions of sale and delivery set out by Bender GmbH & Co. KG apply. These can be obtained in printed or electronic format. The following applies to software products: ‘Software clause in respect of the licensing of standard software as part of deliveries,... -
Page 5: Safety
RFID117-L1 1.10 Safety If the device is used outside the Federal Republic of Germany, the applicable local standards and regulations must be complied with. In Europe, the European standard EN 50110 applies. DANGER Risk of fatal injury due to electric shock! Touching live parts of the system carries the risk of: •... -
Page 6: Device-Specific Safety Instructions
Device-specific safety instructions Device-specific safety instructions ADVICE The RFID module complies with the relevant harmonized standards to ensure that the requirements of the Radio Equipment Directive (see the chapter “Declarations of Conformity”) are met. It is the responsibility of the distributor of the complete system to ensure conformity with this and any additional legal requirements. -
Page 7: Function
Function Intended use The RFID module must only be used in combination with charge controllers from Bender GmbH & Co. KG. The module is a separate PCB which facilitates user interaction with the charging system. Any other use or a use that goes beyond this constitutes improper use. -
Page 8: Operation
Function Status continuously lighting • Charging system is reserved • No vehicle is connected slow flashing • Charging system is reserved • Vehicle is connected fast flashing • Charging system is exchanging data with the backend • Waiting for an authorisation slow flashing •... -
Page 9: Dimensions And Mounting
RFID117-L1 Dimensions and mounting Dimensions Dimensions in mm; Tolerance acc. to ISO 2768-m Red markings: possible attachment points Mounting The RFID module is installed under a semi-transparent part of the charging system housing. It must be placed at a distance of at least 20 mm from any significant metal surface or metal parts to ensure optimum RFID reading performance. -
Page 10: Technical Data
Technical Data Technical Data Tabular data Insulation coordination acc. to IEC 60664-1/ IEC 60664-3 Rated voltage 12.5 V Pollution degree Rated impulse withstand voltage 800 V Rated insulation voltage 12.5 V Altitude ≤ 2000 m AMSL Rated voltage/rated current Rated voltage DC 3.3 / 5 V ±... -
Page 11: Standards And Approvals
Declarations of Conformity EU Declaration of Conformity Hereby, Bender GmbH & Co. KG declares that the device covered by the Radio Directive complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: https://www.bender.de/fileadmin/content/Products/CE/CEKO_RFID11x.pdf... - Page 12 Alle Rechte vorbehalten. 35305 Grünberg Nachdruck und Vervielfältigung nur mit Germany Genehmigung des Herausgebers. © Bender GmbH & Co. KG, Germany Subject to change! The specified Tel.: +49 6401 807-707 All rights reserved. standards take into account the edition emobility@bender.de Reprinting and duplicating only with valid until 08.2023 unless otherwise...
