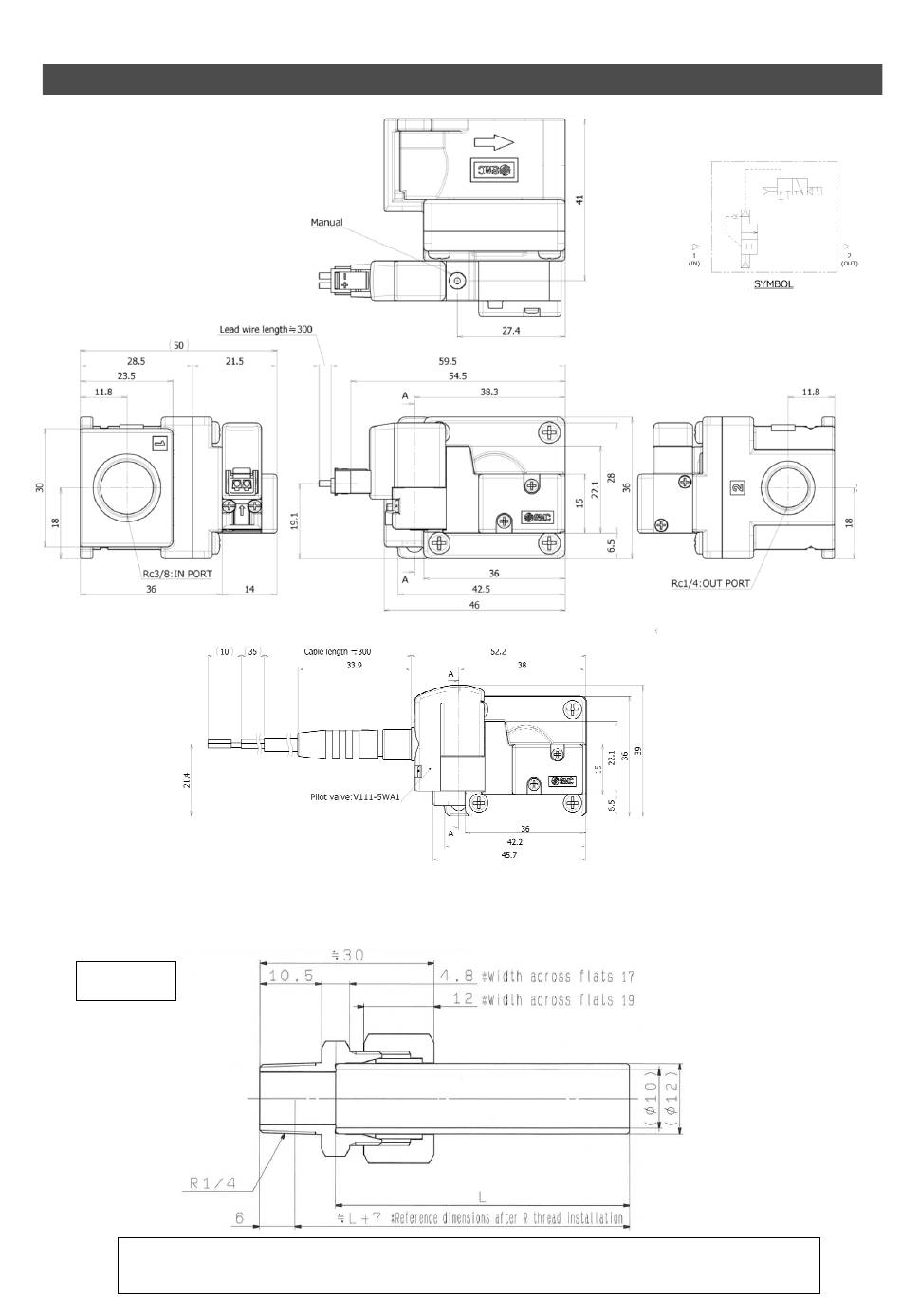

4. Dimensions
L plug connector
M8 connector
Contact us for the dimension for Grommet type, M plug connector type, and AC type.
Nozzle
*L: Nozzle length
Note) The nozzle and flareless fitting are included in the same package unassembled.
Refer to "How to mount to mount a nozzle" on the next page for the assembly instructions.
