A S S E M B LY I N S T R U C T I O N S

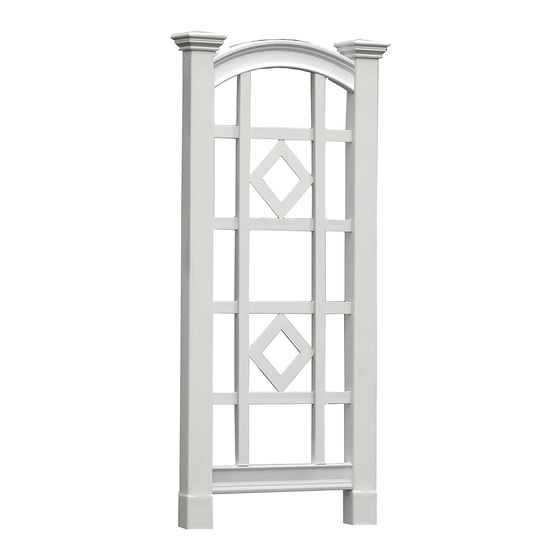

The Milan Trellis
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM
to 4:00 PM EST).
(UK Tel: (44) 2038 687160 (Mon. to Fri. 1:00 PM to 10:00 PM GMT).
1. Arched Top Rail (1)
- 10643-1
2. Post Caps (2)
-10611
3. Posts Left (1)
-10629
4. Posts Right (1)
-10630
5. Vertical Spindle Left (1)
-10631
6. Vertical Spindle Right (1)
7. Horizontal Spindles (4)
-10633
8. Diamonds (2) -
10646-1
9. Bottom Rail (1) -
10650-1
10. Ground Mounting Extensions (2) -
11. 5/8" (16 mm) Self-Auguring Stainless Steel Screw (12) -
Tools You Will Need
• Cordless Drill
• Hammer
• Tape Measure
• Level
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' (1.5m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
55.25 in
(140 cm)
4 in (10 cm)
-10632
10636-1
20 in
(51 cm)
27.25in
(69 cm)
1
2
3
4
5
6
7
20016
8
9
10
www.newenglandarbors.com
www.newenglandarbors.co.uk
59.25 in
(151 cm)
11
Not to Scale
V2.1/072617
1
Advertisement
Table of Contents
Related Manuals for New England Arbors The Milan Trellis
Summary of Contents for New England Arbors The Milan Trellis
- Page 1 A S S E M B LY I N S T R U C T I O N S The Milan Trellis www.newenglandarbors.com www.newenglandarbors.co.uk 59.25 in 55.25 in (151 cm) (140 cm) 4 in (10 cm) 20 in (51 cm) Please read through before starting assembly.
- Page 2 Flip the trellis over and install screws into the intersection of the posts and the two rails as shown. This will lock the horizontal rails into the vertical post. Insert 1st Insert 1st Insert 2nd Insert 2nd Insert 3rd Insert 3rd The Milan Trellis www.edenarbors.com...
- Page 3 Mounting Into the Ground Trellises must be well secured in the event of high winds, etc. We have provided two ground mounting extensions for securing the privacy screen either into the ground or into a concrete footing. If you are installing your trellis directly to the wall of your home, or on a wood deck or concrete surface, please see your hardware store for the appropriate galvanized bracket hardware.
