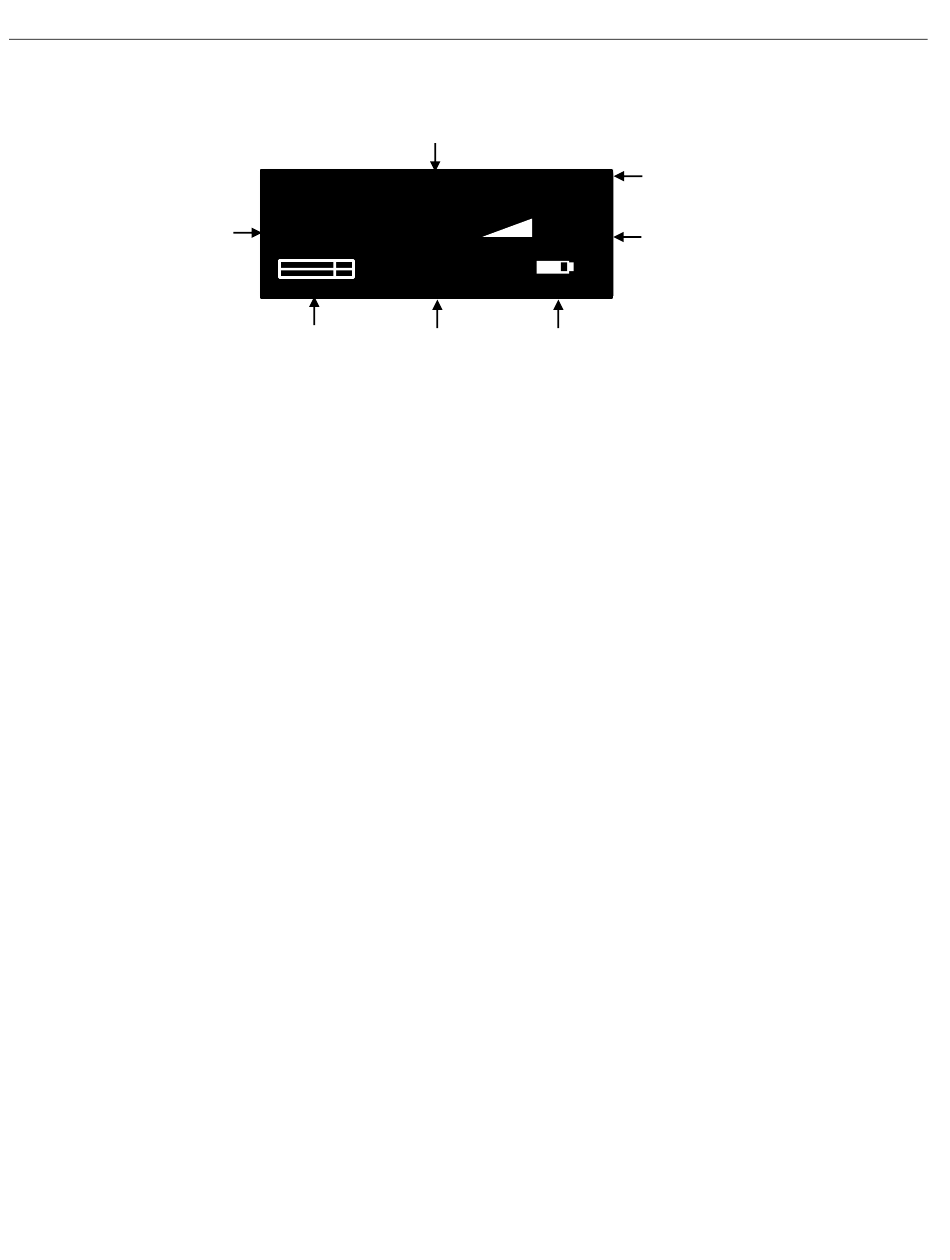

Home Screen

Received
Frequency
Received Transmitter Name
This is the name of the transmitter being received by the URX50.
Received Transmitter Record Status
This displays the status of the internal recorder of the transmitter being received by the URX50. Stop (STP) Play
(PLY) or Record (REC) will be displayed.
Save Indicator
The save indicator will briefly flash when after a setting change as a parameter is being written to the memory
of the URX50
.
Received Frequency
This is the preset position number and the UHF frequency that the URX50 is receiving
RF Signal Strength
The RF strength meter shows the radio signal strength of the transmitter. The RF signal is depicted as a staircase
pattern with the lowest step (low signal strength) on the left and building up to the right (higher signal strength).
When more stairs are showing the stronger the signal is.
Audio Level
Displays the incoming audio level, the meter extends from the left to the right. The vertical bar is the -20dBFS
mark and the far-right side of the box is 0dBFS.
Time Code
This is the time code of the transmitter that the URX50 is receiving.
Battery Meter
This displays a rough indication of the transmitter's battery level. For a more accurate battery reading the battery
type being used in the transmitter needs to be set in the setup menu.
Received TX Name
TX NAME
(P1) 570.1
09:18:05:03
Audio Level Meter TC
Save Indicator
REC RF Signal Strength Meter
Battery Meter
8
Home Screen
TX Record Status
.
