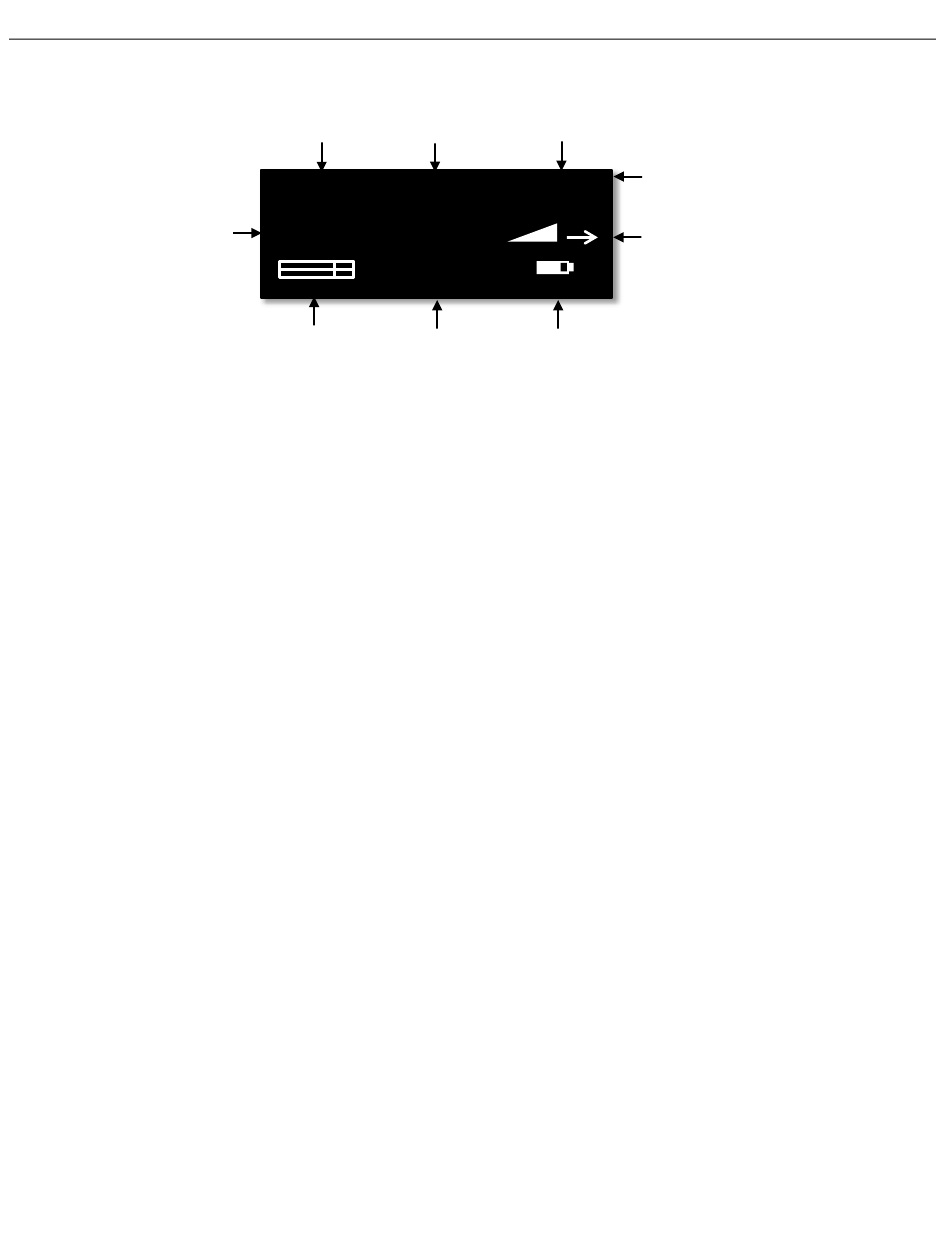

Home Screen

Received
Frequency
Received Transmitter Name
This is the name of the transmitter being received by the URX100.
Received Transmitter Record Status
This displays the status of the internal recorder of the transmitter being received by the URX100. Stop (STP) Play
(PLY) or Record (REC) will be displayed.
Low Battery Indicator of Received Transmitter
TX BATT will appear when the battery level of the transmitter being received is low.
Save Indicator
The save indicator will briefly flash when after a setting change as a parameter is being written to the memory
of the URX100.
.
Received Frequency
This is the preset position number and the UHF frequency that the URX100 is receiving
RF Signal Strength
The RF strength meter shows the radio signal strength of the transmitter. The RF signal is depicted as a staircase
pattern with the lowest step (low signal strength) on the left and building up to the right (higher signal strength).
When more stairs are showing the stronger the signal is.
Receiving Antenna
This shows the antenna that is receiving the RF signal.
Audio Level
Displays the incoming audio level, the meter extends from the left to the right. The vertical bar is the -20dBFS
mark and the far right side of the box is 0dBFS.
Time Code
This is the time code of the transmitter that the URX100 is receiving.
Battery Meter
This displays a rough indication of the transmitter's battery level. For a more accurate battery reading the battery
type being used in the transmitter needs to be set in the setup menu.
Received TX Name Rec Status Low Battery Indicator
TX NAME REC
(P1) 570.1
09:18:05:03
Audio Level Meter
TXBATT
TC Battery Meter
7
Home Screen
Save Indicator
RF Signal Strength Meter
Receiving Antenna
.
