SCAN MENU

Frequency Scan

PRESS
(ALL 200: 512 – 698)
The frequency scan menu is where the URX50 will scan the user specified frequency range and search for a
clear frequencies. The frequency range that will be scanned will be displayed on the bottom half of the screen.
The frequency range that will be scanned is set and can be changed in the next menu.
After the scan is completed a graphic display of the RF that is present, in the specified range, will be shown.
The URX50 will also suggest a clear frequency. That frequency can be accepted by pressing the CH UP key. Or
press the CH DOWN key to skip the first chosen frequency and have the URX50 suggest another frequency.

Scanning for a frequency

Turn off the transmitter(s).
•
From the scan menu press the CH UP key to initiate a scan.
•

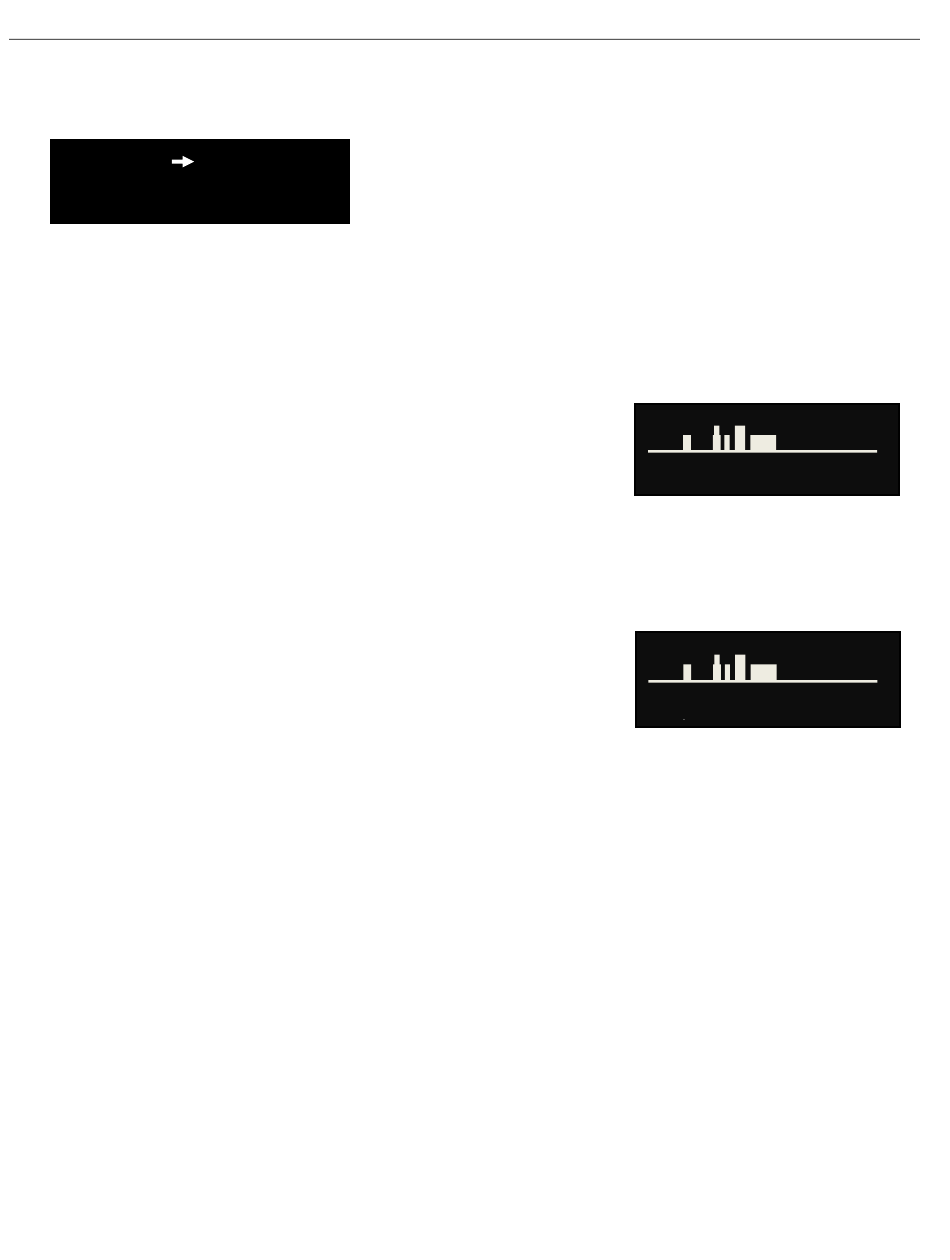

While the URX50 is scanning, the frequency being examined is
•
displayed in the bottom half of the screen. Once the scan has
completed a graphic map of the scan will be displayed. The low end of the frequency range is on
the left side and the high end is on the right. Wherever RF is found, a vertical line will be drawn.
The line extends from the baseline up. The length of the line indicates the level or strength of the
found RF at that frequency.

Selecting the frequency

When the scan is complete the URX50 will draw a vertical blinking line
on the display to indicate where the first suggested frequency is, and
the frequency in MHz will appear below the scan graphic.
Press the CH UP key to accept the new frequency.
•
Press the CH DOWN key to decline and suggest a different frequency.
•
TO SCAN
12
Scan Menu
SCANNING 568.9
TO TAKE 618.2
