Smoke

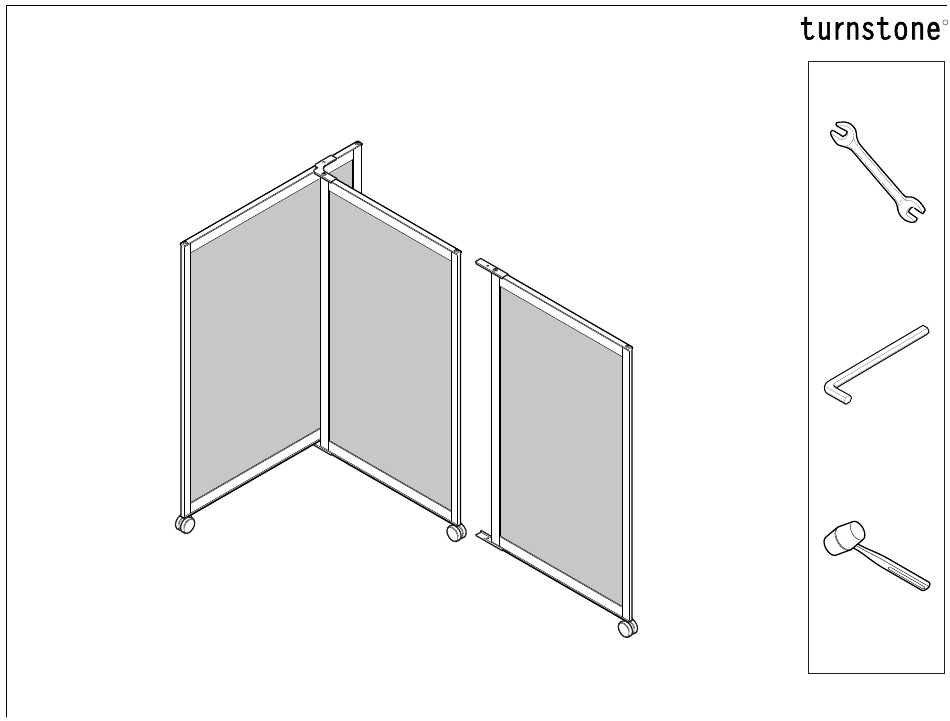

Extension Panel Screen
Note: Please handle the screen frames and infills
with care while unpacking and assembly.
©
2001 Steelcase Inc.
Grand Rapids, MI 49501 U.S.A.
Printed in U.S.A.
Only one extension screen
per 'T' and 'L' screen.
R
1/2"
7/32" Hex
Rubber
Mallet
Page 1 of 4
TS5YFMXS Rev C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Turnstone Smoke
Summary of Contents for Steelcase Turnstone Smoke
- Page 1 Note: Please handle the screen frames and infills with care while unpacking and assembly. 1/2" Only one extension screen per 'T' and 'L' screen. 7/32" Hex Rubber Mallet © 2001 Steelcase Inc. Grand Rapids, MI 49501 U.S.A. Page 1 of 4 Printed in U.S.A. TS5YFMXS Rev C...
- Page 2 For Ribbed Privacy, Frosted Acrylic Orient infill so that the burn label is in the lower right hand corner of the screen. Perforated steel and Perforated Infills infill will not have a label. Place extension panel screen so it is laying flat Attach the two side bars before attaching the top against the floor.
- Page 3 For Markerboard Infills Attach caster stem and caster to one end of panel and attach in-line bracket on opposite side. Place the markerboard, aluminum The other in-line bracket goes bar and perforated infill so it is above the first. laying flat against the floor. Push the markerboard into the top of the Snap the eraser tray onto the aluminum bar, and the perforated...
- Page 4 Remove these two casters & caster stems and add one additional washer to each caster stem to add height to the panel. Remove caster, caster stem and washer. Place in-line NOTE: Before tightening the top bracket bolt, be sure top and bottom bracket over hole and replace caster stem and caster.
