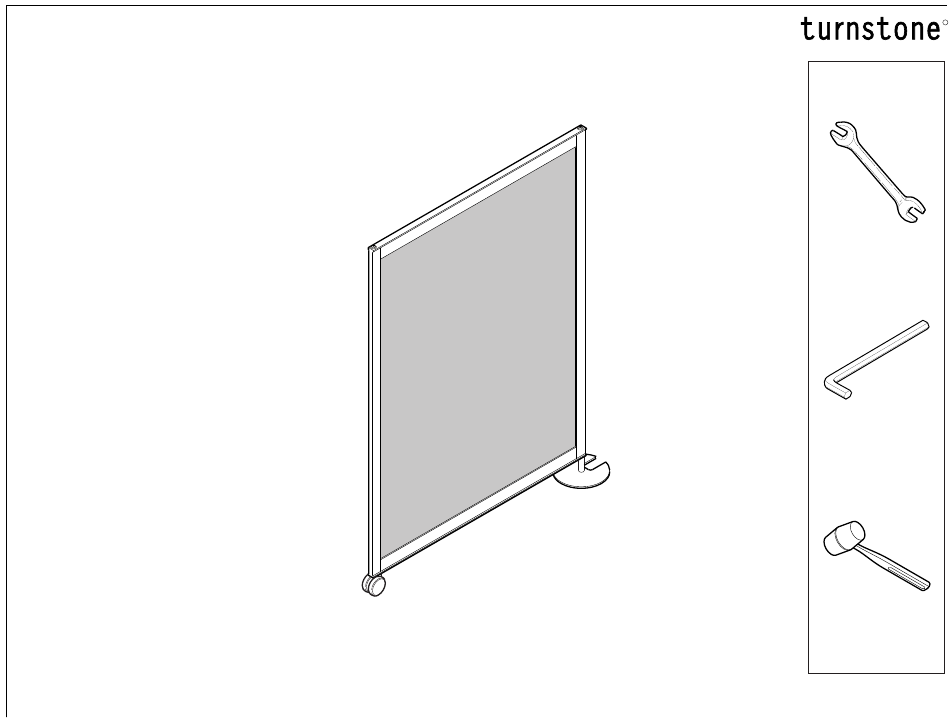

- Page 1 Note: Please handle the screen frames and infills with care while unpacking and assembly. 1/2" 7/32" & 1/4" Hex Rubber mallet © 2001 Steelcase Inc. Grand Rapids, MI 49501 U.S.A. Page 1 of 4 Printed in U.S.A. TS5YFMRS Rev E...
- Page 2 For Ribbed Privacy, Frosted Acrylic Orient infill so that the burn label is in the lower right hand corner of the screen. and Perforated Infills Perforated steel infill will not have a label. Place panel flat against the floor. Attach lock Attach the two side bars before attaching washer, flat washer, flange bearing and shoulder the top and bottom.
- Page 3 For Markerboard Infills Attach lock washer, flat washer, flange bearing and shoulder screw to one end of panel and Place the markerboard, aluminum attach flat washer, caster stem bar and perforated infill so it is and caster on opposite side. laying flat against the floor.
- Page 4 Stand panel upright and carefully place flange bearing assembly into base assembly. NOTE: Tighten all bolts completely to a torque of 200-230 in/lbs. Page 4 of 4 TS5YFMRS Rev E...
