Introduction
Welcome to Multi-Tech's new DSU ProxyServer, model number MTPSR2-201, a single, secure
gateway that provides multiple LAN users with high performance Internet access over a leased
line. The DSU ProxyServer functions as a TCP/IP proxy server that resides on the outer edge of
your firewall and provides up to 56K of bandwidth to LAN users. The DSU ProxyServer features
a 10BaseT port for local LAN connection, a command port for configuration, a 56K bps DDS 4-
wire WAN connection, and a RS232 port for an optional Data Communications Equipment (DCE)
device (i.e., external modem, T1 CSU, etc.). System management is provided through the
command port using bundled Windows® software which provides easy-to-use configuration
menus.
The MTPSR2-201 also supports dial-in Remote Access Server (RAS) when the WAN 2 port is
configured to support it. Refer to the
system for more details on RAS.
RD TD
CL
LK

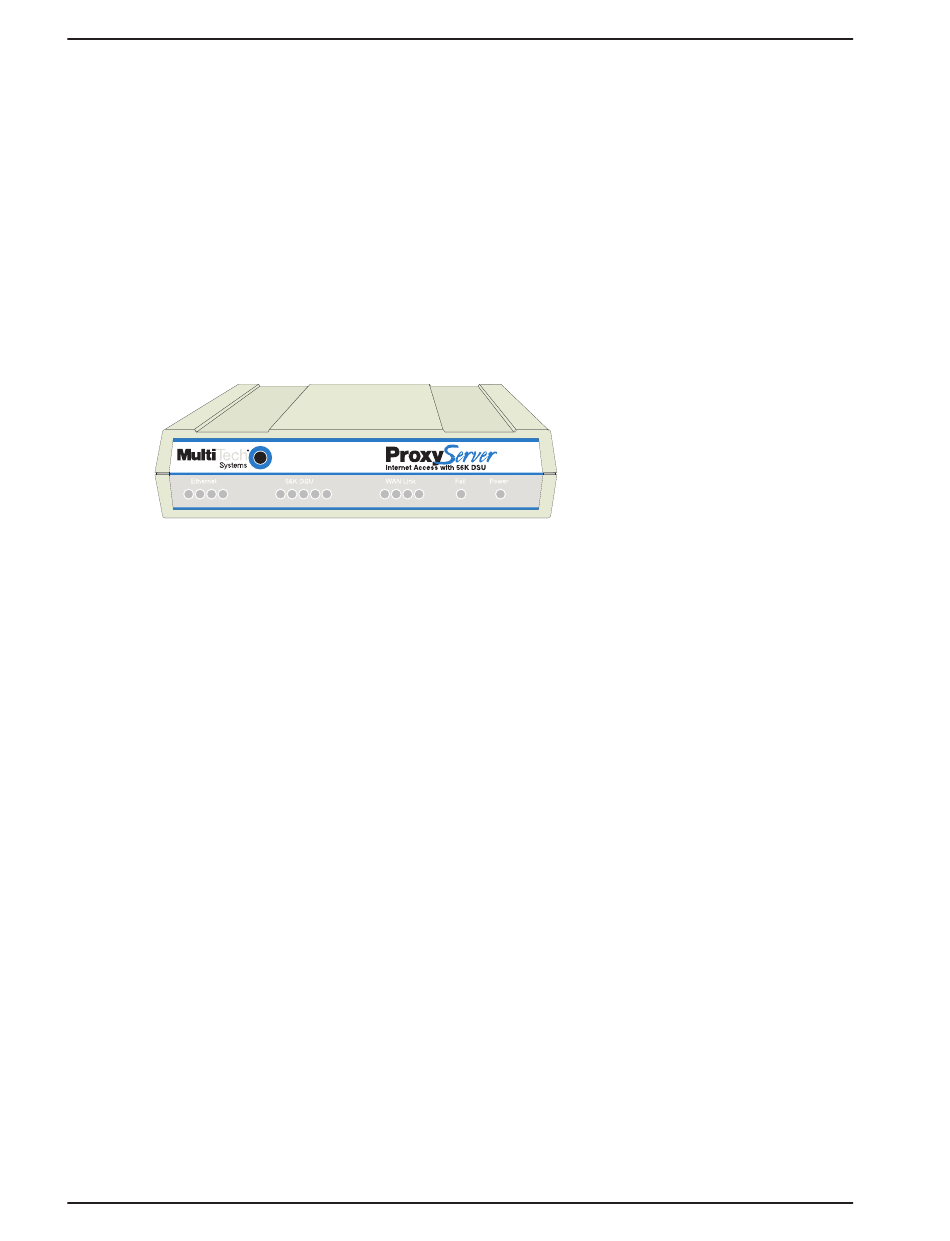

Figure 1-1. DSU ProxyServer
Preview of this Guide
This guide describes the ProxyServer and tells you how to install and configure the unit. The
information contained in each chapter is as follows:
Chapter 1 - Introduction and Description
Chapter 1 describes the ProxyServer. Front panel indicator, and back panel connector
descriptions are provided. In addition, a list of relevant specifications is provided at the end of the
chapter.
Chapter 2 - Installation
Chapter 2
provides information on unpacking and cabling your ProxyServer. The installation
procedure describes each cable connection.
Chapter 3 - Software Loading and Configuration
Chapter 3
provides instructions for software loading and initial configuration. The ProxyServer
software diskettes are Windows® based. Later chapters, as well as your on-line help program will
describe the ProxyServer software in more detail.
Chapter 4 - ProxyServer Software
Chapter 4
describes the ProxyServer software package designed for the Windows ®
environment. This chapter describes the ProxyServer software from an applications standpoint,
and in so doing, not every screen is shown, nor is each field within a screen defined. For
explanations and parameters of each field within a dialog box please refer to the on-line help
system provided within the software.
6
Chapter 4, ProxyServer
RD
TD
CD
NS
DS
RD
TD
CD
V35
Software, and your on-line help
