Installation and Operation
TAS-UNI
V4
4.2

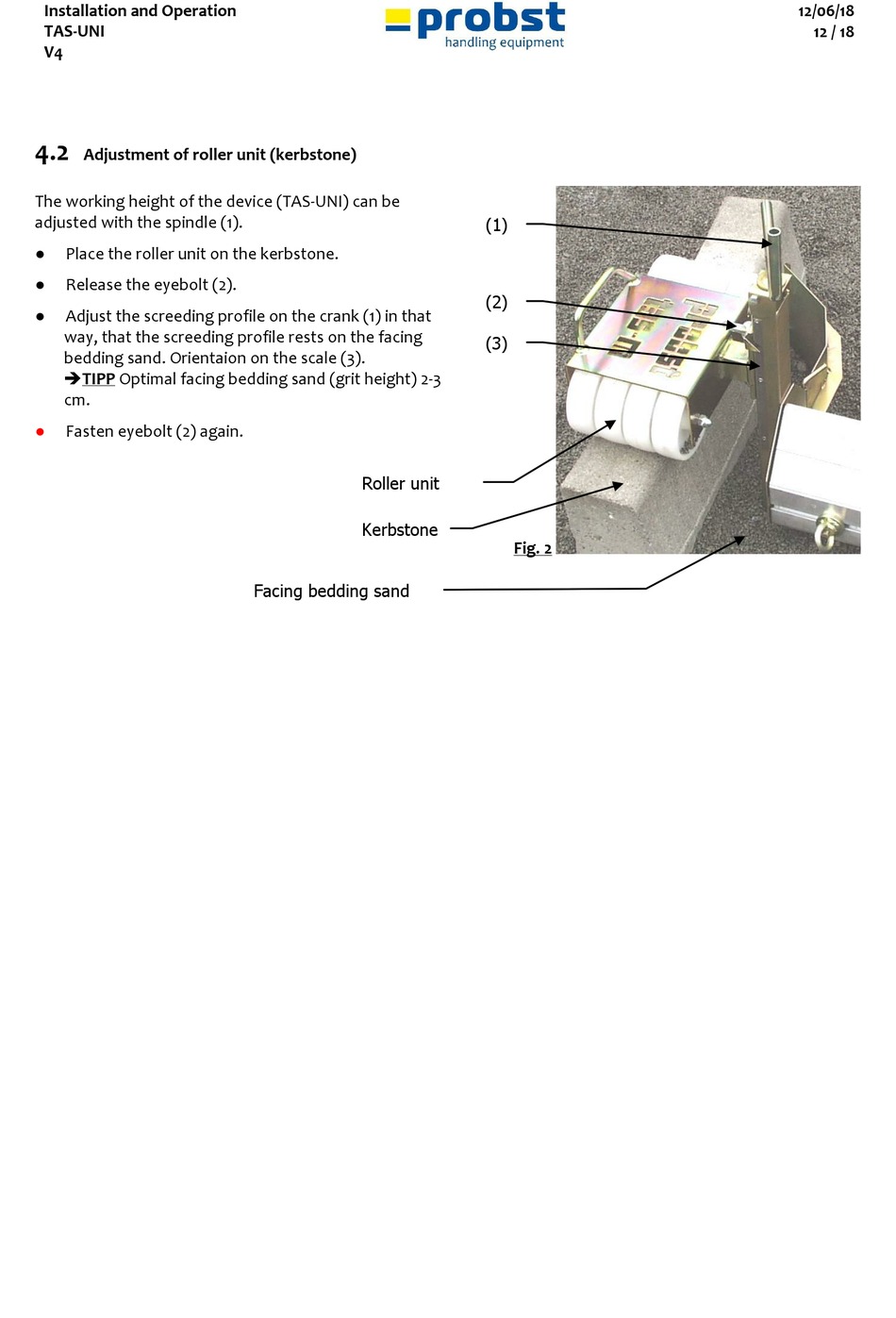

Adjustment of roller unit (kerbstone)

The working height of the device (TAS-UNI) can be
adjusted with the spindle (1).
Place the roller unit on the kerbstone.
Release the eyebolt (2).
Adjust the screeding profile on the crank (1) in that
way, that the screeding profile rests on the facing
bedding sand. Orientaion on the scale (3).
TIPP Optimal facing bedding sand (grit height) 2-3
cm.
Fasten eyebolt (2) again.
Roller unit
Kerbstone
Facing bedding sand
(1)
(2)
(3)
Fig. 2
12/06/18
12 / 18
