probst TAS-UNI Translation Of Original Operating Instructions page 10

Installation and Operation
TAS-UNI
V4

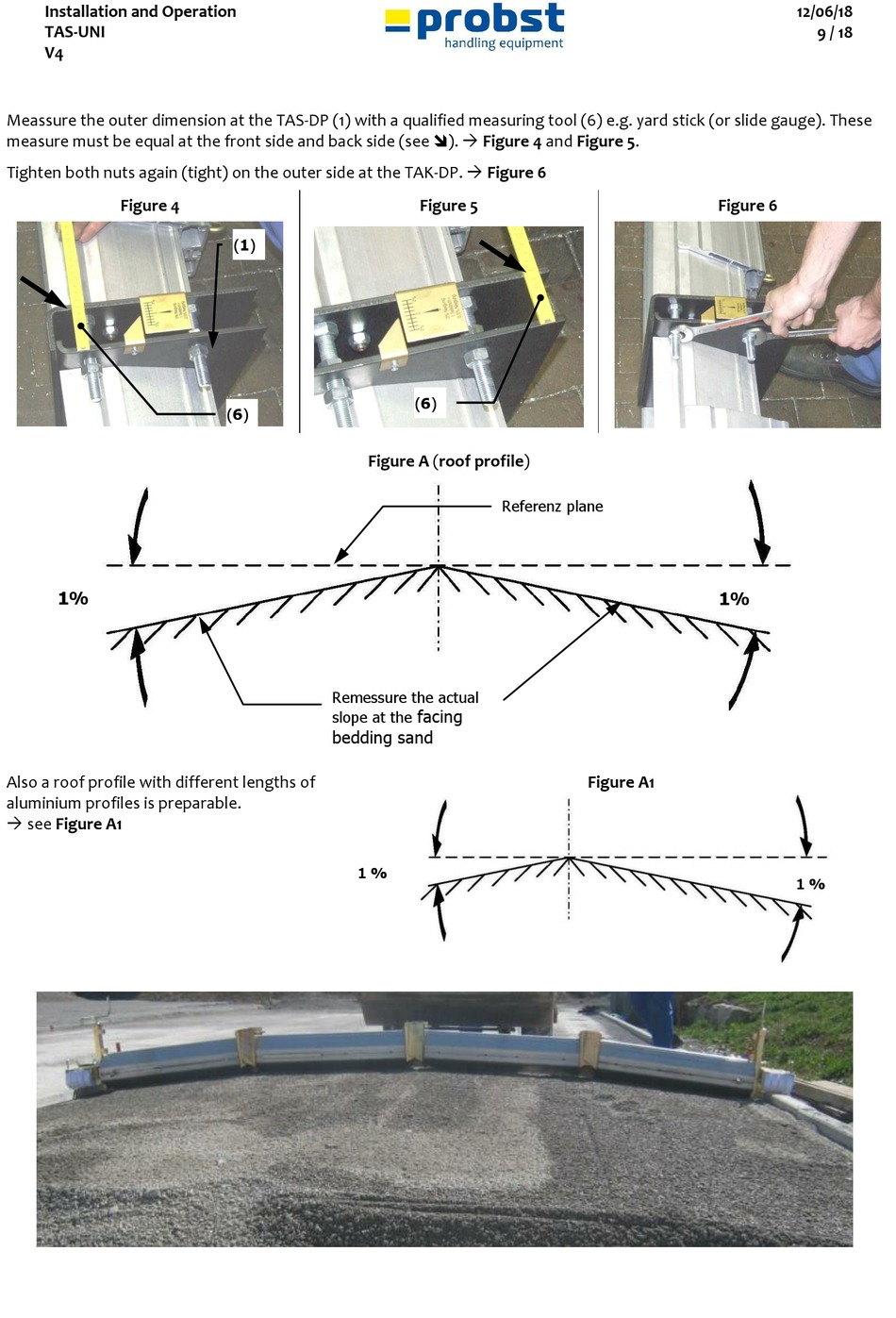

Meassure the outer dimension at the TAS-DP (1) with a qualified measuring tool (6) e.g. yard stick (or slide gauge). These
measure must be equal at the front side and back side (see ).  Figure 4 and Figure 5.
Tighten both nuts again (tight) on the outer side at the TAK-DP.  Figure 6
Figure 4
1%
Also a roof profile with different lengths of
aluminium profiles is preparable.
 see Figure A1
v
(1)
(6)
Figure A (roof profile)
Remessure the actual
slope at the
bedding sand
1 %
Figure 5
(6)
Referenz plane
facing
Figure 6
1%
Figure A1
12/06/18
9 / 18
1 %
