Texecom Premier Elite XT-W Instruction Manual

Instruction Manual
1 - Introduction

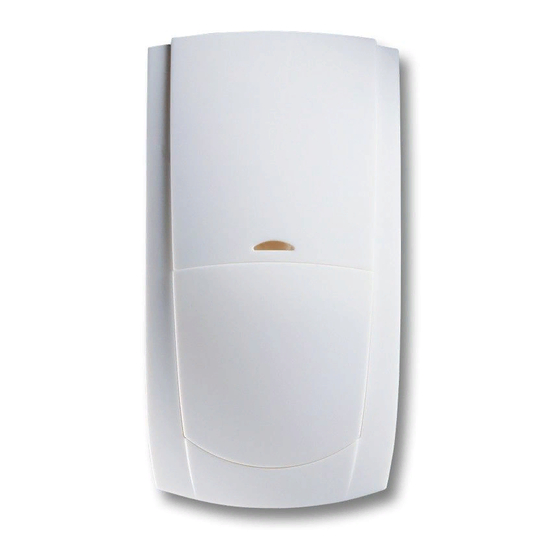

Premier Elite XT-W/QD-W/DT-W
• For wireless connectivity, detailed programming
and system set-up instructions please refer to
the compatible RICOCHET™ technology enabled
Premier Elite wireless expander instructions.
• Featuring RICOCHET™ wireless technology the
Premier Elite XT-W, Premier Elite QD-W and
Premier Elite DT-W are designed for professional
security installations.
• The Premier Elite DT-W is only compatible with
Premier Elite control panels V2.00 and above.
MADE IN ENGLAND INS466-5
Warranty & Battery Safety 5 - Coverage & Pick Up
WARRANTY
2 year replacement warranty (excludes battery).
The Premier Elite XT-W/QD-W/DT-W is designed to detect the
movement of an intruder and activate an alarm control panel. As the
Premier Elite XT-W/QD-W/DT-W is not a complete alarm system, but only
a part thereof, Texecom cannot accept responsibility or liability for any
damages whatsoever based on a claim that the Premier Elite XT-W/QD-W/
DT-W failed to function correctly.
Due to our policy of continuous improvement Texecom reserves
the right to change specification without prior notice. All specifications
are measured at 20ºC (68ºF).
BATTERY SAFETY
• Do not throw into a fire • Do not heat
• Do not short circuit • Do not charge
• Replace only with same or equivalent type(3V) • Do not disassemble
2m
6'7"
• Always observe local regulations when disposing of a battery
• Detector will transmit low battery warning when battery needs replacing
Made In
England
Cer tificate Number: FM 35285
Premier Elite and the wireless logo are trade marks of Texecom Ltd. © 2010
The Premier Elite XT-W/QD-W/DT-W is protected by European Registered
Design. No: 3004997 D20110109 INS466-4
Specifications DT-W Standards
Type Elite XT-W Elite QD-W Elite DT-W
Alarm Systems:
Detector PIR PIR MW PIR
Signal processing DSP DSP DSP
EMC:
Range 12 m 15 m 15 m
Optical Fresnel Lens Fresnel Lens Fresnel Lens R&TTE:
Environmental:
Detector start-up 60 seconds
time Detection:
Battery Life Up to 4 years Frequency Band:
DT-W Product Type:
Mounting height Min. 1.5 m (4.1 ft), Max. 3.1 m (10 ft.)
Receiver:
Target speed 30 cm/s to 3 m/s (1 ft/s to 10 ft/s)
range Receiver LBT
(Listen Before Talk)
Alarm time > 2 seconds
Transmitter Duty Cycle 868Mhz<1%, 433Mhz<10%
Operating -10˚C to +55˚C (14˚F to 130˚F)
Low Voltage Signal
temperature
Operating Voltage
Dimensions 112mm x 60mm x 40mm
(HxWxD)
Relative humidity Max. 95%
Weight QD/XT: 150g DT: 170g
Contact information: www.texe.com

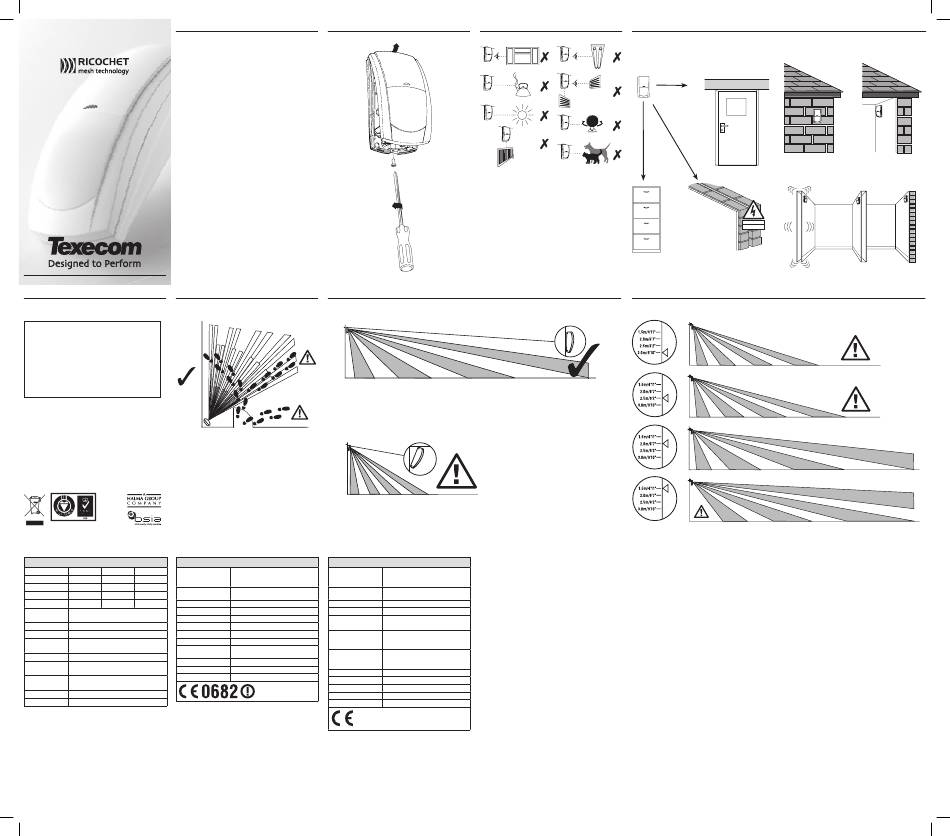

2 - Opening the detector
2
1
6 - Angling the detector
2m
6'7"
2m
6'7"
15m
50'
XT-W/QD-W Standards
EN50131-2-4, EN50131-5-3, EN50131-2-2, EN50131-5-3,
EN50131-1, PD6662:2010, Alarm Systems: EN50131-1, PD6662:2010,
Grade 2 Class II Grade 2 Class II
EN50130-4:2011 EN50130-4:1995: A1: A2
EMC:
ETSI EN301 489 V1.4.1 ETSI EN301 489-03 V1.4.1
ETSI EN300-220 (V.2.3.2) R&TTE: ETSI EN300-220 (V.2.3.2)
EN50130-5 Environmental: EN50130-5
24.15 - 24.25GHz 868.0 - 868.6 MHz/433.05 - 434.79 MHz
Frequency Band:
866.0 - 866.6 MHz (See product label)
868.0 - 868.6 MHz
GBF1000 Frequency 868MHz GBA1000-2 Frequency 868MHz
XT-W Product Type: GBA2000*
Category 1, Class 2
GBA3000
Yes
GBD1000-2 Frequency 868MHz
QD-W Product Type: GBD2000*
GBD3000
2.85V
Receiver: Category 1, Class 2
3V
Receiver LBT (Listen Before Talk) Yes
Transmitter Duty Cycle 868Mhz<1%, 433Mhz<10%
Low Voltage Signal 2.85V
Operating Voltage 3V
*GBA2000 and GBD2000 not INCERT approved.
3 - Avoid common false alarm sources
15m
50'
4m
13'1"
Frequency 433MHz
Frequency 866MHz
Frequency 433MHz
Frequency 866MHz
4 - Mounting the detector
Do not install close to large metal objects or For indoor use only
mains wiring
Metal Lintel
>1m
✗
>1m
>1m
Mount on a stable surface
✗
230V
110V
Metal Filing
Cabinet
7 - Altering coverage at 2m mounting height
2m
2m
6'7"
6'7"
2m
6'7"
4m
13'1"
2m
6'7"
2m
6'7"
✓
✓ ✓
8m
26'2"
10m
32'9"
15m
50'
15m
50'
