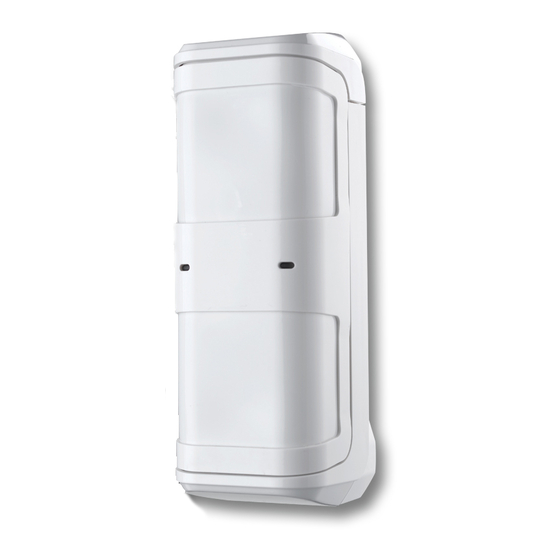

Texecom Premier External TD-W Installation Manual

Texecom Premier External TD-W Installation Manual

Advertisement

Quick Links

Installation Manual
Premier External TD-W
INS647-3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premier External TD-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texecom Premier External TD-W

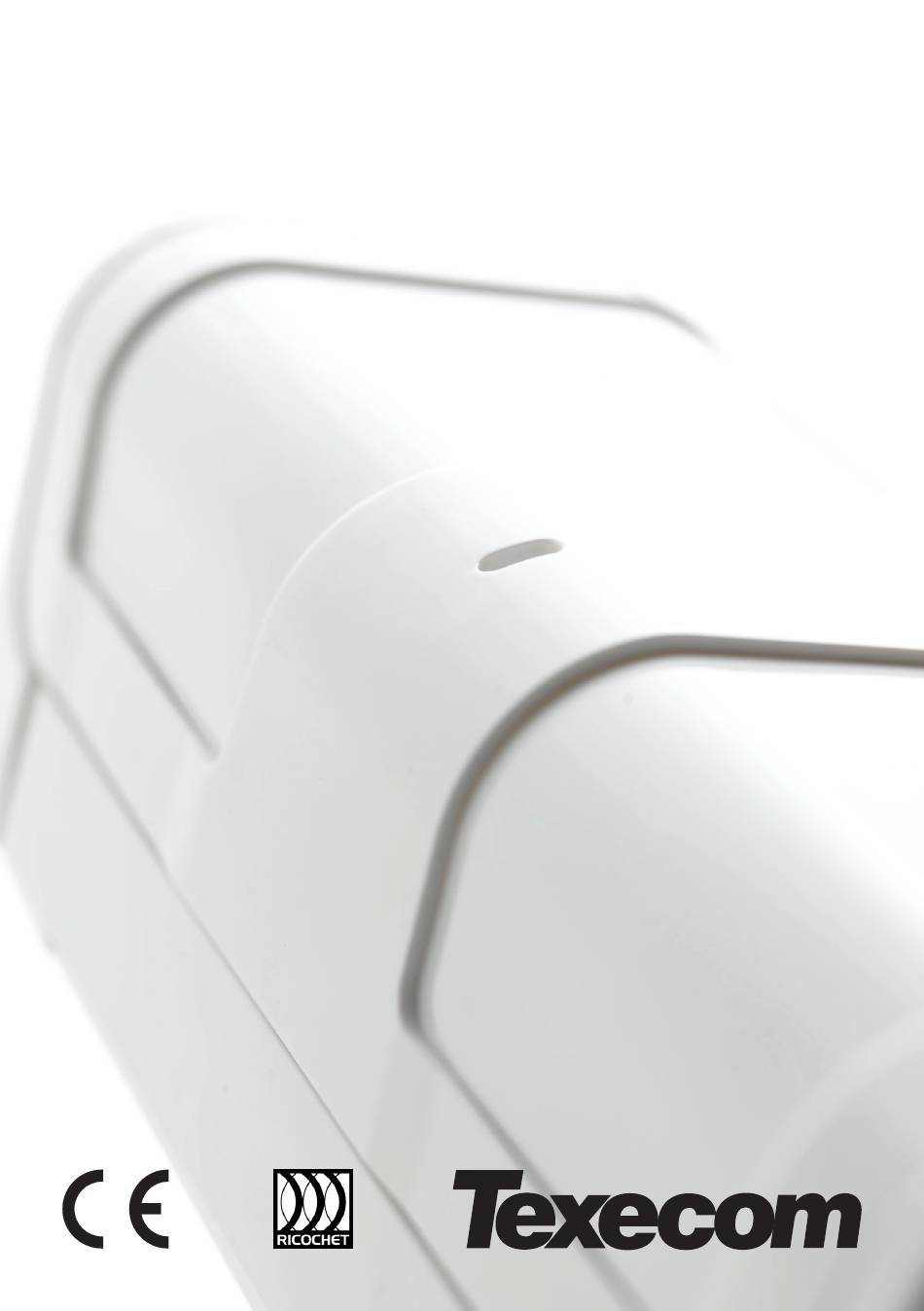

  • Page 1 Installation Manual Premier External TD-W INS647-3...
  • Page 2 1. Accessing the unit & battery installation Remove the top cap and loosen screw Push up head unit and remove. (screw retained in wall plate). Start the learn process on the keypad and then insert the batteries - Battery connection will automatically start the learning sequence.
  • Page 3: Choosing A Location

    2. Choosing a Location • Mounting height 1.0 - 1.4m (nominal 1.2m), measured to middle of unit. • Mount perpendicular to ground. ✓ Parallel 1.0 - 1.4m • Do not install close to large metal objects (eg. metal lintel) or mains wiring. •...
  • Page 4: Mounting The Unit

    3. Mounting the Unit Front View WALL MOUNTING REAR TAMPER To enable the rear tamper, the breakaway keyhole section must be securely fixed to the mounting surface. 4. Jumper Settings JP1: Pulse Count Pulse Count Sensitivity Night Only 2 3 4 H M L ON OFF 0.3 - 3.0m/s...
  • Page 5 5. Range Adjustment - PIR Bottom of head unit To adjust the range of the detector, rotate the circular section shown until the desired range is shown in the window. Note: Range can vary due to environmental conditions. To reduce the risk of false alarms always select the lowest range possible for the installation.
  • Page 6: Coverage Area

    6. Coverage Area Bottom of head unit Bottom of head unit Top View Top View Active Active detection detection coverage coverage 45˚ 90˚ 90˚ 90˚ 45˚ Walk-testing With the range, sensitivity, coverage and pulse count set as desired, enable the LEDs and walk-through the area of protection.
  • Page 7: Specifications & Standards

    Security grade: EN Grade 2 Environmental class: Class IV Standards: EN50131-5-3 Disclaimer: The Premier External TD-W is not a complete alarm system, but only its part. Therefore Texecom does not accept any responsibility or liability for any damage that is claimed to be a result of an incorrect functioning of the Premier External TD-W detector.
  • Page 8 Texecom Limited, Bradwood Court, St. Crispin Way, Haslingden, Lancashire BB4 4PW, England. Technical Support: UK Customers Tel: 08456 300 600 (Calls charged at 3.36 pence per minute from a BT landline. Calls from other networks may vary.) International Customers Tel: +44 1278 686197 Email: techsupport@texe.com...
