SpectraMax MiniMax Imaging Cytometer Installation Guide
10. Carefully place the cytometer on its side on the foam pad so that the top of the
cytometer faces the bottom of the microplate reader.
Note: you might need to slide the microplate reader on the foam pad to
make room for the cytometer.

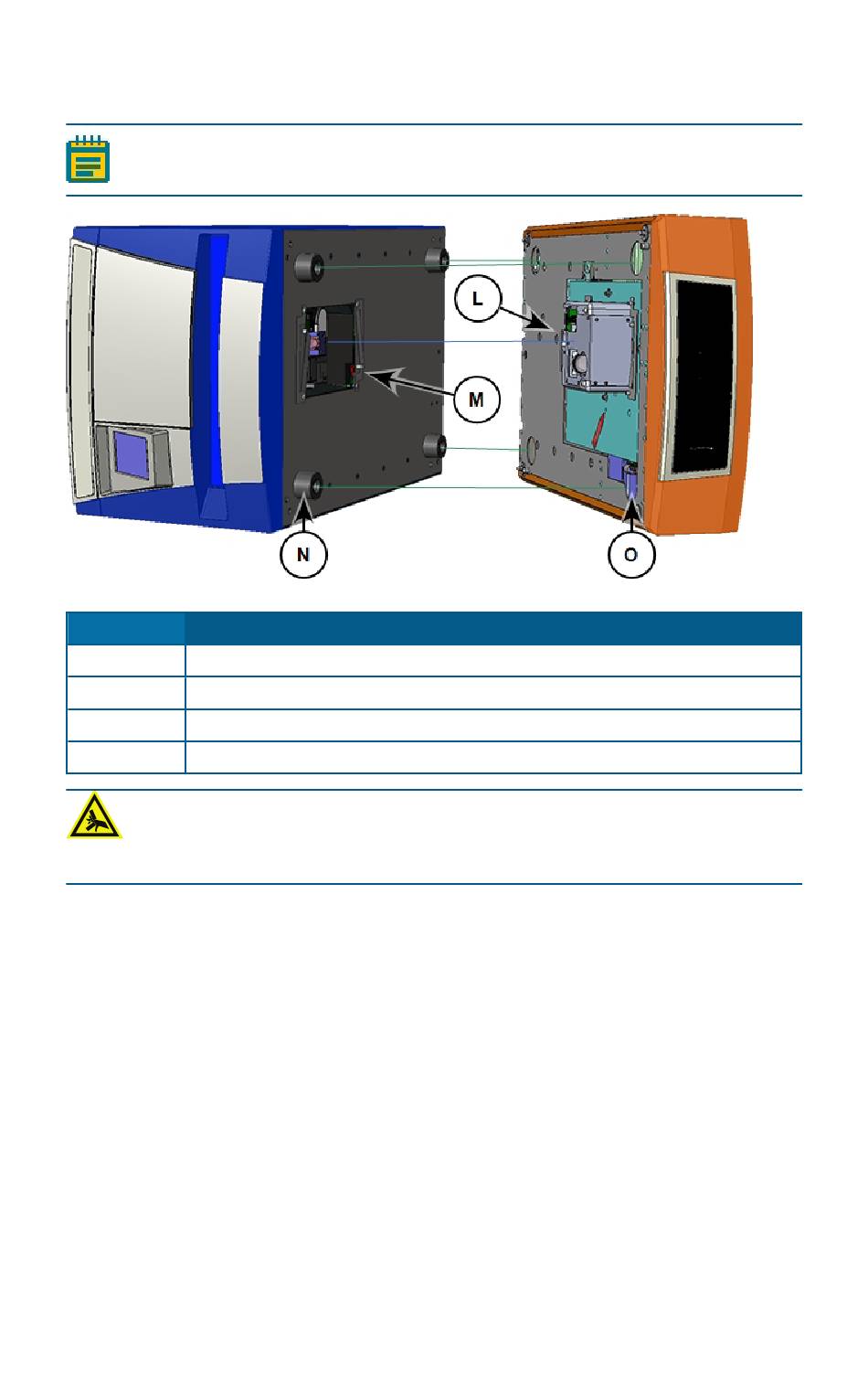

Figure 1-6: Attach the Cytometer to the Microplate Reader
Item
L
M
N
O
WARNING! PINCH HAZARD.
bottom of the microplate reader and the top of the cytometer. The top of
the cytometer is beveled to help provide clearance for fingers.
11. Slide the cytometer into the microplate reader, making sure that the optics tower
(L) fits into the optics-access opening (M) and the four feet (N) on the microplate
reader fit into the four foot openings (O) on the cytometer.
12
Description
Optics tower
Optics-access opening
Microplate reader feet (4)
Microplate reader foot openings (4)
There is limited clearance between the
5024111 C
