Installing and Setting Up the
SpectraMax MiniMax Imaging Cytometer
The SpectraMax® MiniMax™ Imaging Cytometer attaches to the bottom of the
SpectraMax® i3x Multi-Mode Detection Platform.

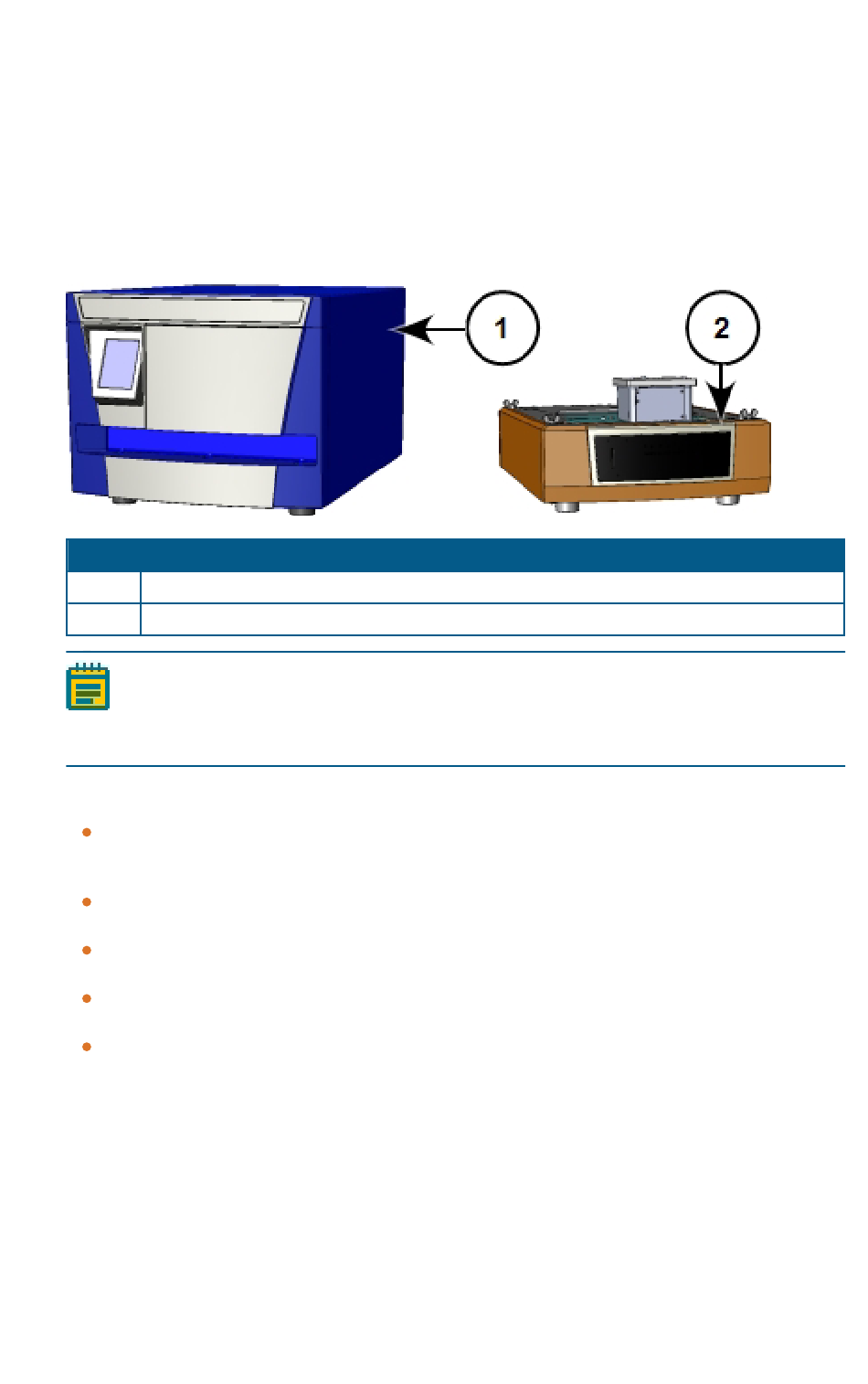

Figure 1-1: Microplate Reader and Cytometer
Item Description
1 SpectraMax i3x Multi-Mode Detection Platform (microplate reader)
2 SpectraMax MiniMax Imaging Cytometer (cytometer)
Note: If you are installing the SpectraMax i3x Instrument at the same time,
unpack the microplate reader before setting up the cytometer, but leave the
microplate reader transport locks in place until after the cytometer is attached
to the microplate reader. See the user guide or installation guide.
Installing and setting up the cytometer includes the following steps:
Remove the wing nuts, the transport bracket, the retaining screws, and the optics
cover that protect the optical components during shipping. See
Shipping Protections on page
Attach the cytometer to the bottom of the microplate reader. See
Imaging Cytometer to the Microplate Reader on page
Remove the transport locks from the microplate and detection cartridge drawers.
See Removing the Transport Locks on page
Install the controlling software and connect the instrument cables. See
the Cables on page
Calibrate the well image for the cytometer. See
23.
To do brightfield, transmitted-light imaging, you must install the
SpectraMax Transmitted Light (TL) Detection Cartridge in the detection cartridge drawer.
See Transmitted Light (TL) Detection Cartridge on page
5024111 C
7.
18.
9.
14.
Calibrating the Cytometer on page
23.
Removing the
Attaching the
Connecting
