Hardware Connection:
Control Panel
Sensor
Reed
Tamper
Alarm
OV
12V
Programming:
Press 1234 on the control panel. The below message will be displayed.
Step 1:
Press Yes
Press NO ( X ) to edit the option & Press 3 to change the zone type
Technical Support

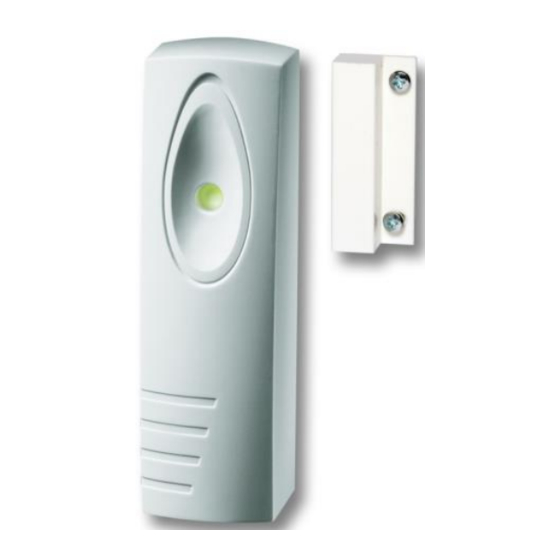

Premier Elite Impaq Plus with Contact
Control Panel
Z1
Z2
Z3
-
A
U
12V
+
X
:
91520 10269
(AED-0009)
Sensor
Reed
Tamper
Alarm
OV
12V
Note: In this case we're connecting sensor in
Zone 001 for reed(Magnetic Contact).
Zone 002 for alarm(Vibration sensors).
Zone 003 for tamper
Note: If you want to enable and use:
1. Magnetic Contact – Follow Step 1
2. Vibration sensors – Follow Step 2
3. Tamper – Follow Step 3
Expander
Expander
A
T
A
T
A
T
A
U
X
:
