HIM-18018
Document No.
EVAFLEX
5-SE-GHT
®
Part No.20899-0**E-01
Instruction Manual
0
S19209
March 26, 2019
M.Nakamura
T.Kurachi
H.Ikari
Rev.
ECN
Date
Prepared by
Checked by
Approved by
Confidential C
I-PEX Inc.
QKE-DFFDE09-03 REV.8
1 / 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVAFLEX 5-SE-GHT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for I-PEX EVAFLEX 5-SE-GHT

  • Page 1 HIM-18018 Document No. EVAFLEX 5-SE-GHT ® Part No.20899-0**E-01 Instruction Manual S19209 March 26, 2019 M.Nakamura T.Kurachi H.Ikari Rev. Date Prepared by Checked by Approved by Confidential C I-PEX Inc. QKE-DFFDE09-03 REV.8 1 / 9...

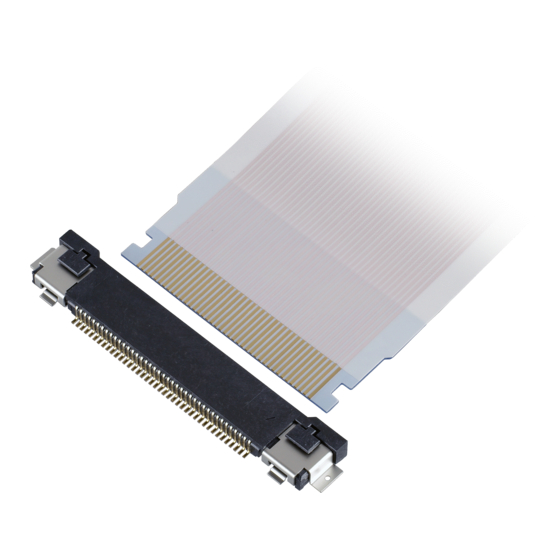

  • Page 2 EVAFLEX 5-SE-GHT Connector Instruction Manual HIM-18018 弊社製コネクタ EVAFLEX 5-SE-GHT の取り扱いに際して、本コネクタを安全に御使用頂くことを目的とし、コネクタの挿入・抜去の手順 及び注意点を記述致します。 御査収の程、宜しく御願い申し上げます。 This manual provides the insertion & withdrawal method and cautions to handle EVAFLEX 5-SE-GHT connector properly and safely. ◆コネクタ/connector 名称/Product Name : EVAFLEX 5-SE-GHT 型番/Part No. : 20899-0**E-01 Note1 Note 1 “...
  • Page 3 NG 例 1 ) / Fig.2-2 FFC /FPC Pattern Facing Wrong Direction Check! 本製品は片側接点タイプです。 図 2-2 のように FFC/FPC パターンが反基板方向に向いた状態での挿入はしないでください。 EVAFLEX 5-SE-GHT is a single-side contact type connector. Do not insert FFC/FPC pattern facing anti-PCB side. (Fig.2-2) Confidential C 3 / 9...
  • Page 4 Document No. EVAFLEX 5-SE-GHT Connector Instruction Manual HIM-18018 ② 図 2-3 の様に、FFC/FPC をコネクタに対して、水平に挿入していき、奥までしっかり挿入する。 ※奥までしっかり挿入するとロックがかかります。 Insert FFC/FPC horizontally into the connector and push it all the way in. (Fig.2-3) ※FFC/FPC will be locked when insertion is completed. 図. 2-3 FFC/FPC 挿入方法 2 / Fig.2-3 Horizontally Inserting FFC/FPC 插入方法...
  • Page 5 Document No. EVAFLEX 5-SE-GHT Connector Instruction Manual HIM-18018 <注 1/Caution 1> 図 2-5 の様に、10°以上斜めの状態で押すと、ロックが掛からない恐れや、コネクタ及び FPC/FFC の損傷の 恐れがあります。 Do not exceed 10 degrees angle, as this may cause incomplete lock or may deform connector or FFC/FPC. Over 10° FFC 変形 Deformed FFC 写真.
  • Page 6 Document No. EVAFLEX 5-SE-GHT Connector Instruction Manual HIM-18018 【FFC/FPC 抜去手順/FFC/FPC Withdrawal Method】 ① 図 3-1 の様に、FFC をつまみながらロック解除ボタンを押す。 FFC と解除ボタンをつまむ / Pinch release button and FFC/FPC Push a release button on the connector while pinching the FFC/FPC. Push 解除ボタンを押し込む / Push release button 図.
  • Page 7 Document No. EVAFLEX 5-SE-GHT Connector Instruction Manual HIM-18018 ダメージ / Damage 写真 3-1. (a) 回転抜去した場合 / Photo.3-1 (a) Withdrawing with rotation 図. 3-3 FFC/FPC 抜去方法 (NG 例 1) 写真 3-1. (b)垂直に抜去した場合 / Fig.3-3 BAD FFC/FPC Withdrawing / Photo.3-1 (a) Withdrawing FFC/FPC vertically <注...
  • Page 8 Document No. EVAFLEX 5-SE-GHT Connector Instruction Manual HIM-18018 <注 5/Caution 5> 解除ボタンを押さずに FFC/FPC の抜去(無理抜き)はしないで下さい。(図 3-6 )FFC/FPC 及びコネクタを破損させる 原因となります。(写真 3-2 ) Do not forcedly withdraw FFC/FPC without pushing a release button, as this may damage FFC/FPC or the connector. 解除ボタンが押せていない / Releasing button is not pushed 図...
  • Page 9 Document No. EVAFLEX 5-SE-GHT Connector Instruction Manual HIM-18018 【コネクタ取り扱いにおける注意事項/Cautions in handling the connector】 ① コネクタ嵌合状態及び FFC 抜去時にて、FFC/FPC を基板に対して垂直に引っ張らないで下さい。(写真 4-1 ) コネクタ及び FFC/FPC の破損の原因になります。 Do not pull FFC/FPC toward vertical to PCB, as this may damage FFC/FPC or the connector. (See Photo. 4-1) 写真.
