I-PEX NOVASTACK-B Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HIM-16033
Document No.
NOVASTACK
-B
®
Part No. Plug:20712-004E-0* Receptacle: 20713-004E-0*
Instruction Manual
S16550
August 22, 2016
H.Ikari
Y.Shimada
0
Rev.
ECN
Date
Prepared by
Checked by
Approved by
Confidential C
I-PEX Inc.
QKE-DFFDE09-03 REV.8
1 / 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOVASTACK-B and is the answer not in the manual?

Questions and answers

Related Manuals for I-PEX NOVASTACK-B

Summary of Contents for I-PEX NOVASTACK-B

  • Page 1 HIM-16033 Document No. NOVASTACK ® Part No. Plug:20712-004E-0* Receptacle: 20713-004E-0* Instruction Manual S16550 August 22, 2016 H.Ikari Y.Shimada Rev. Date Prepared by Checked by Approved by Confidential C I-PEX Inc. QKE-DFFDE09-03 REV.8 1 / 8...

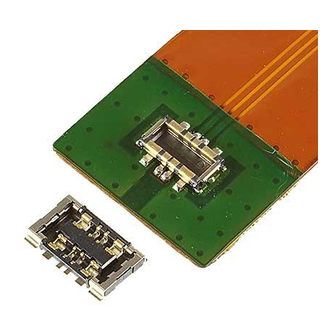

  • Page 2 NOVASTACK-B Instruction Manual HIM-16033 弊社製コネクタ NOVASTACK-B を安全に御使用頂く事を目的とし、コネクタの挿入・抜去の 手順及び注意点を記述致します。 This manual provides the insertion & withdrawal methods and cautions to handle NOVASTACK-B connector properly. 1. 対象コネクタ名称 型番・部品名／Connector Name, Part number, Part name 1-1. Plug connector 名称／Product Name ： NOVASTACK-B Plug ass'y 型番／Part No.
  • Page 3 Document No. NOVASTACK-B Instruction Manual HIM-16033 1-3. コネクタの方向性に関して/ Connectors Mating Direction Plug ass’y 及び Receptacle ass’y 共に方向性はなく、どちらの方向に嵌合しても性能への影響はありません。 The plug and the receptacle can be mated in both ways. The performance of the connector will not be affected by the mating direction of the connectors.
  • Page 4 Document No. NOVASTACK-B Instruction Manual HIM-16033 2-3. 推奨ﾘﾌﾛｰ温度ﾌﾟﾛﾌｧｲﾙ Recommended reflow temperature profile （温度はコネクタ端子部付近のプリント基板表面温度） (Temperature: the top surface temperature of the printed circuit board near the connector terminal.) 推奨ﾘﾌﾛｰ温度ﾌﾟﾛﾌｧｲﾙ / Recommended Reflow Temperature Profile Confidential C 4 / 8...
  • Page 5 Document No. NOVASTACK-B Instruction Manual HIM-16033 3. 取扱い上の注意 / Cautions for Handling the Component 3-1. 基板-FPC での使用の場合 / Using for board to FPC connection. ① FPC の取り回しによる張力や落下等の衝撃によるコネクタへの負荷に対して、取り回しに 余裕を持たせて頂く事に加え、嵌合方向へ押さえつけて保持をお願い致します。 ① FPC shall not be tensed to withstand in case of a shock or a tension is applied.
  • Page 6 Document No. NOVASTACK-B Instruction Manual HIM-16033 3-2. 基板-基板での使用の場合/ Using for board to board connection. ① 使用される嵌合基板のサイズ・形状によってはコネクタ及びコネクタ半田部への直接負荷による破損 若しくは、振動・衝撃等による嵌合の傾き及び脱落が発生する可能性があります。 コネクタ破損及び嵌合傾き、脱落を防止する為に、スペーサー等を使用した基板間固定を推奨します。 ① To prevent the accidental removal or slant mating, spacers are recommended to fix the space in between the two printed circuit board. There spacers will also help to prevent the damage to the connectors and to the soldered area which might have been caused by the too large printed circuit board or unbalanced shape printed circuit board.
  • Page 7 Document No. NOVASTACK-B Instruction Manual HIM-16033 3-3. コネクタ抜け止め荷重/Press load 嵌合状態のコネクタ抜け止め荷重(筐体で押さえる荷重)につきましては、下記条件でコネクタ上面全体を 押さえる様にして下さい。 （抜け止め荷重：20.0N 以下） To prevent the coming off of the mated connectors (the load which a connector can apply), press the entire upper surface of the connector with the load calculated in below formula.
  • Page 8 Document No. NOVASTACK-B Instruction Manual HIM-16033 ※注意 2／Caution 2 挿入開始時の奥行き方向のこじり角度は、10°以下でお願いします。 10°以上での挿入は、コネクタ変形の原因となります。 At starting the insertion, please keep the slant 10 degrees or less in direction of depth. By inserting with the slant more than 10 degrees, deformation of the connector will occur.
