I-PEX MHF I Instruction Manual

With lock function
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
HIM-17020
Document No.
1
S18608
0
S17459
Rev.
ECN
Confidential C

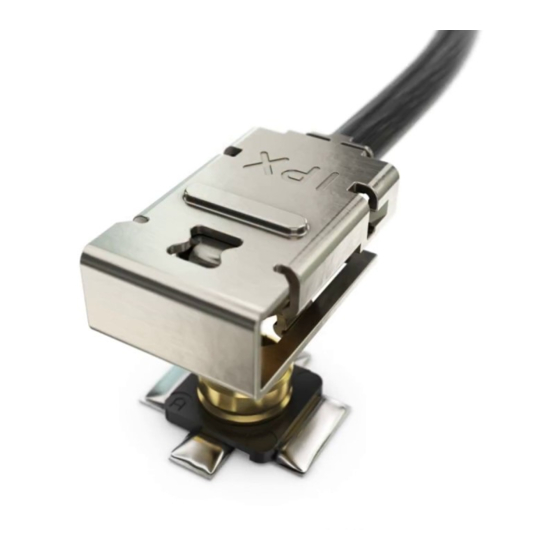

MHF I with LOCK function
Instruction Manual
Sep./21/2018
Jun./20/2017
Date
Y.Fukumoto
Y.Fukumoto
Prepared by
I-PEX Inc.
1 / 7
Checked by
QKE-DFFDE09-03 REV.8
K.Narita
K.Narita
Approved by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHF I and is the answer not in the manual?

Questions and answers

Related Manuals for I-PEX MHF I

Summary of Contents for I-PEX MHF I

  • Page 1 HIM-17020 Document No. MHF I with LOCK function Instruction Manual S18608 Sep./21/2018 Y.Fukumoto K.Narita S17459 Jun./20/2017 Y.Fukumoto K.Narita Rev. Date Prepared by Checked by Approved by Confidential C I-PEX Inc. QKE-DFFDE09-03 REV.8 1 / 7...
  • Page 2 Document No. MHFI with LOCK function Instruction Manual HIM-17020 This manual is to explain the mate & unmate methods and important points in handling of MHFI LK connector plug with cable for the purpose of proper use. 【 CONNECTOR INSERTION MANUAL】 ①...
  • Page 3 Document No. MHFI with LOCK function Instruction Manual HIM-17020 CAUTION ・Please make sure to set the cable side connector parallel to the board. If you mate in not parallel condition as shown in Fig.4-2, connector will be damaged. Correct connector mating Parallel <OK>...
  • Page 4 Document No. MHFI with LOCK function Instruction Manual HIM-17020 【 How to Lock】 Slide the lock parts it shown Fig.5-1. PUSH PUSH Fig.5-2 Fig.5-1 CAUTION ・As shown in Fig.6-2, please slide until the connector comes to the whole hole. In the state of Fig. 6-3 , the connector fitting holding force decrease. ・Do not add excessive force.
  • Page 5 Document No. MHFI with LOCK function Instruction Manual HIM-17020 【 CONNECTOR UNMATING MANUAL】 There are two ways to unlock and un-mate. By hand [page 5] By unmating jig [page 6] 【 How to Un-LOCK by a hand】 Slide the lock parts as shown in figures 7-1 and 7-2. PUSH PUSH Fig.7-1...
  • Page 6 Document No. MHFI with LOCK function Instruction Manual HIM-17020 【 How to unlock by the unmating jig】 ※The unmating jig’s parts number is 91026-0001 1. Place positioning guide on the lock. [ Fig.9-1.] unmating JIG 2. Clip lock with jig and slide it to unlock.. [Fig. 9-2] Positioning guide Positioning guide Cable...
  • Page 7 Document No. MHFI with LOCK function Instruction Manual HIM-17020 【 CAUTION IN CABLE CONNECTOR HANDLING】 ・In the case of figure 11, it has possibility to damage to the housing and come off from rece. connector. Especially when operator give continuous force to the direction (black allow), the tendency become higher. So please take care of handling of harness.
