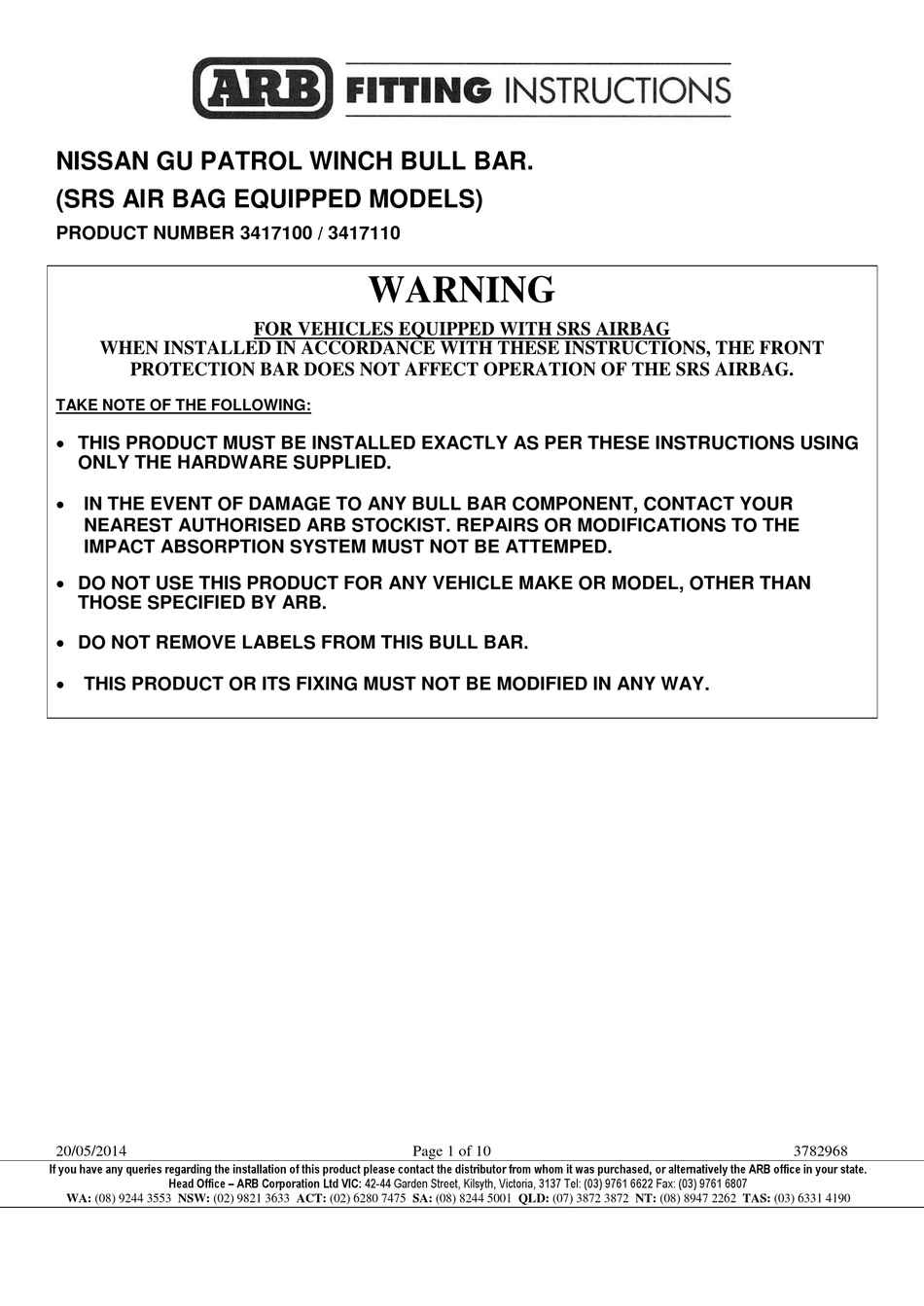

NISSAN GU PATROL WINCH BULL BAR.
(SRS AIR BAG EQUIPPED MODELS)
PRODUCT NUMBER 3417100 / 3417110
WHEN INSTALLED IN ACCORDANCE WITH THESE INSTRUCTIONS, THE FRONT
PROTECTION BAR DOES NOT AFFECT OPERATION OF THE SRS AIRBAG.
TAKE NOTE OF THE FOLLOWING:
THIS PRODUCT MUST BE INSTALLED EXACTLY AS PER THESE INSTRUCTIONS USING
ONLY THE HARDWARE SUPPLIED.
IN THE EVENT OF DAMAGE TO ANY BULL BAR COMPONENT, CONTACT YOUR
NEAREST AUTHORISED ARB STOCKIST. REPAIRS OR MODIFICATIONS TO THE
IMPACT ABSORPTION SYSTEM MUST NOT BE ATTEMPED.
DO NOT USE THIS PRODUCT FOR ANY VEHICLE MAKE OR MODEL, OTHER THAN
THOSE SPECIFIED BY ARB.
DO NOT REMOVE LABELS FROM THIS BULL BAR.
THIS PRODUCT OR ITS FIXING MUST NOT BE MODIFIED IN ANY WAY.
20/05/2014
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office – ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: (03) 9761 6622 Fax: (03) 9761 6807
WA: (08) 9244 3553 NSW: (02) 9821 3633 ACT: (02) 6280 7475 SA: (08) 8244 5001 QLD: (07) 3872 3872 NT: (08) 8947 2262 TAS: (03) 6331 4190
WARNING
FOR VEHICLES EQUIPPED WITH SRS AIRBAG
Page 1 of 10
3782968
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ARB 3417100
Summary of Contents for ARB 3417100
- Page 1 3782968 If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state. Head Office – ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: (03) 9761 6622 Fax: (03) 9761 6807...
- Page 2 WASHER FLAT M6 6151128 NUT FLANGE M6 BLB850 CABLE BLACK 850mm WINCH CABLES 8.000 / 9.000 / 10.000 LB BLR850 CABLE RED 850mm 12,000LB BLR2700 CABLE RED 2700mm 3500080 ARB INDICATOR KIT INDICATORS TO BULL BAR 20/05/2014 Page 2 of 10 3782968...
-
Page 3: Tools Required
TOOLS REQUIRED. Basic tool kit, torque wrench, drill,10mm drill bit, 14mm.16mm stepped ring spanners. ASSEMBLY SEQUENCE FOR BULL BAR INSTALLATION. 1. Fit buffers to bar using, 6mm hardware. 2. Rest the bar face down on two stands so assemble can be carried out. 3. - Page 4 6. To place winch clutch handle in correct position for ease of operation, handle must be rotated 144° in a clockwise direction. 7. Undo and remove all capped head screws from gearbox end. 8. Gently raise the gearbox just enough to rotate to correct position.
- Page 5 11. Place winch on a stand with mounting holes facing upwards and lower bull bar onto winch. Align all four holes and secure using 1 ½” x 7/16”bolts, 7/16” spring washers and 7/16” flat washers on 10/12,000LB winch. When using 8/9,000LB winch, secure using 1 ½”...
- Page 6 17. Connect the winch control box cables to the winch. Refer to Warn installation instruction manual when wiring up winch. Note: before running winch cables through the bar to control box be sure to fit rubber grommets to cutouts. 18. Ensure that all cables are installed well clear of all sharp or moving parts, by using cables ties from bolt kit.
- Page 7 25. Once bar is secured to vehicle, using 10mm holes in chassis bracket as template, drill 10mm hole through side of chassis and secure using M10 x 40mm bolt, flat washer, spring washer and nut. Carry out this procedure on both sides of vehicle. 10MM BOLT LOCATION 26.
- Page 8 Replace the indicators by sliding the indicators back into position, screw back into place then insert the retaining pin. Test to ensure the indicators function correctly. 28. The air deflector is made up of 2 panels which are bolted together using 6mm hardware when fitted to a non 4.8 litre petrol engine vehicle.
- Page 9 29. If pan is fitted to a non 4.8 litre vehicle, photo on left shows both panels bolted together using 6mm hardware. 30. Fit driving lights to vehicle at this stage using lower cut outs in centre of bar for access of ratchet and extension to tighten lights to bar.
- Page 10 32. Provision for Hilift jack on both sides of bar. 20/05/2014 Page 10 of 10 3782968...
