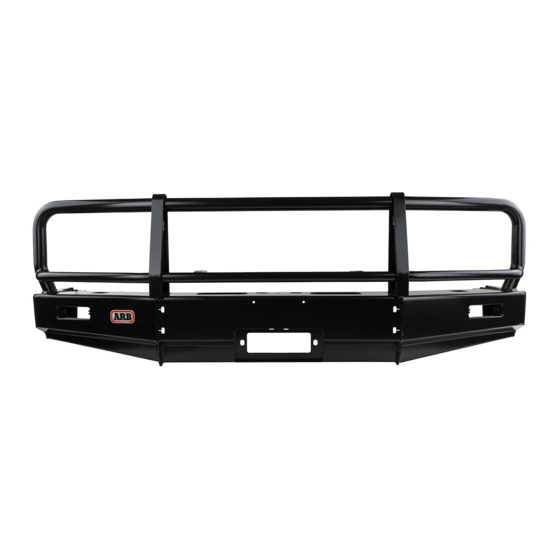

LAND ROVER DISCOVERY
DELUXE AND WINCH BULL BARS
(JANUARY 1995 ONWARD)
WHEN INSTALLED IN ACCORDANCE WITH THESE INSTRUCTIONS, THE FRONT
PROTECTION BAR DOES NOT AFFECT OPERATION OF THE SRS AIRBAG.
TAKE NOTE OF THE FOLLOWING:
• THIS PRODUCT MUST BE INSTALLED EXACTLY AS PER THESE
INSTRUCTIONS USING ONLY THE HARDWARE SUPPLIED.
• DO NOT USE THIS PRODUCT FOR ANY VEHICLE MAKE OR MODEL,
OTHER THAN THOSE SPECIFIED BY ARB.
• DO NOT REMOVE LABELS FROM THIS BULL BAR.
• THIS PRODUCT OR ITS FIXING MUST NOT BE MODIFIED IN ANY WAY.
DEC 2001
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office – ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: (03) 9761 6622 Fax: (03) 9761 6807
WA: (08) 9244 3553 NSW: (02) 9821 3633 ACT: (02) 6280 7475 SA: (08) 8244 5001 QLD: (07) 3872 3872 NT: (08) 8947 2262 TAS: (03) 6331 4190
WARNING
FOR VEHICLES EQUIPPED WITH SRS AIRBAG
Page 1 of 6
No 32/3432050
3782513
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ARB 3432050
Summary of Contents for ARB 3432050
- Page 1 3782513 If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state. Head Office – ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: (03) 9761 6622 Fax: (03) 9761 6807...
- Page 2 FITTING KIT (TO SUIT BOTH BULL BARS) No. 6171239 PART No QTY DESCRIPTION 3500080 INDICATOR KIT (contains L and R) TURN SIGNAL INDICATORS 6151017 M6 X 16mm BOLT NUMBER PLATE TO BULL BAR 6151046 M6 FLAT WASHER 6151128 M6 FLANGE NUT 3500200 BUFFER KIT RUBBER BUFFER TO BULL BAR...
- Page 3 TOOLS REQUIRED Basic tool kit, level, tape measure, drill and 1/2” drill bit. FITTING PROCEDURE 1. Disconnect the headlight washers at the T piece by cutting the tube, take care as the T piece is fragile. NOTE: First temporarily block the tube to prevent loss of washer fluid. 2.
- Page 4 B. To place the winch clutch handle in a convenient location, the winch gearbox must be rotated 2 hole spacings, 72 degrees, in a clockwise direction when viewed from the gearbox end. Place the winch on its end and remove all gearbox bolts. Gently raise the gearbox just enough to rotate it. Do not completely remove the gearbox and avoid damaging the gasket.
- Page 5 to chassis rail width variations packers (numbers: 5846273 & 5846274), with fitting tabs, may need to be inserted between the “Impact Absorbers” and chassis rails. DIAGRAM 3 10. Using a level and a tape measure, adjust both Impact Absorbers so that they are parallel to each other, horizontal, and have an overall width of between 805mm and 808mm, then tighten the bolts.
- Page 6 A) Lift the winch into place and using the washers supplied in the fitting kit (3/8” for 8 or 9,000lb and 7/16” for 10,000lb) and the bolts and spring washers supplied with the winch, bolt securely into position. NOTE: The gearbox is on the LHS for the 8 &...
