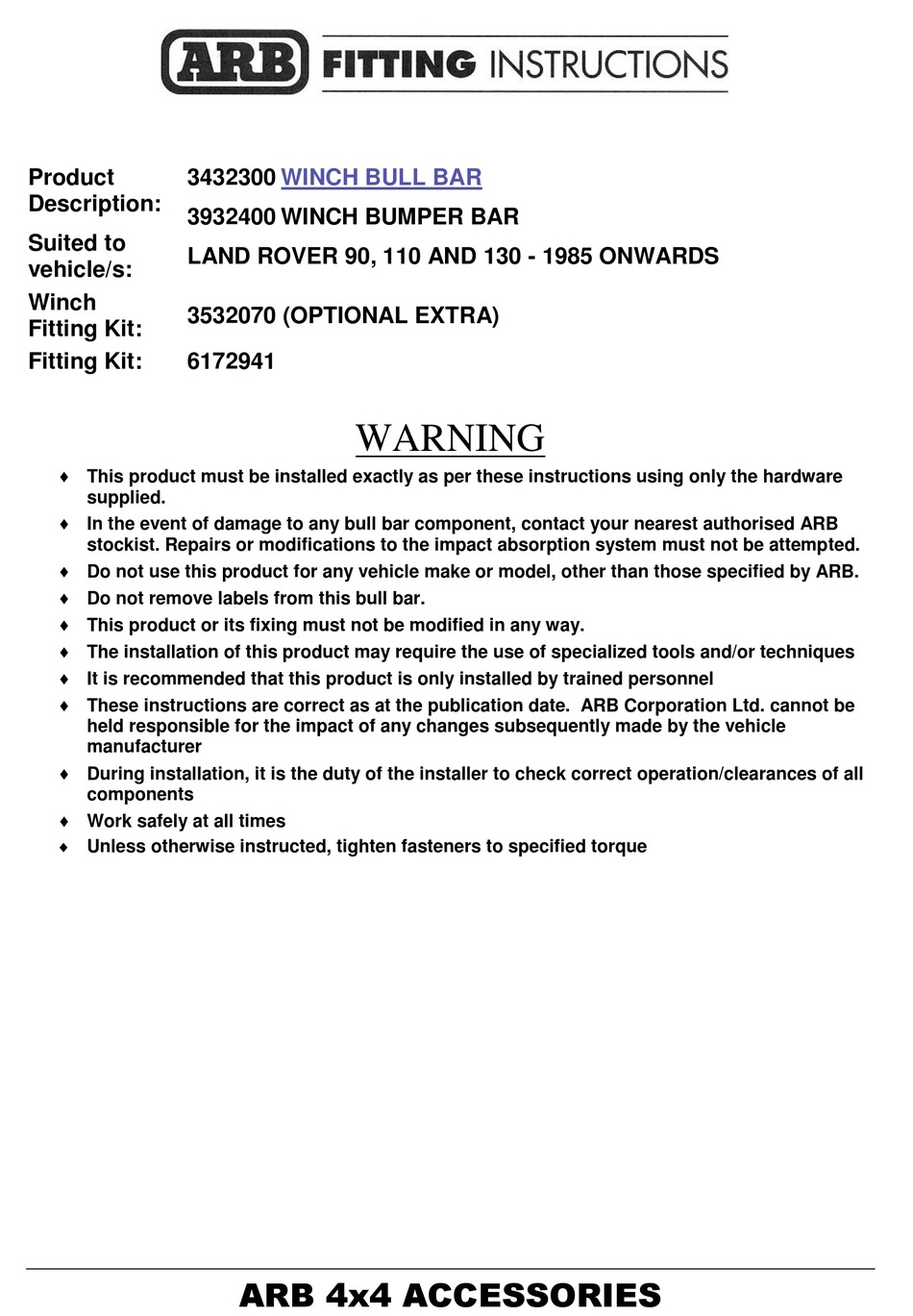

Product
3432300
Description:

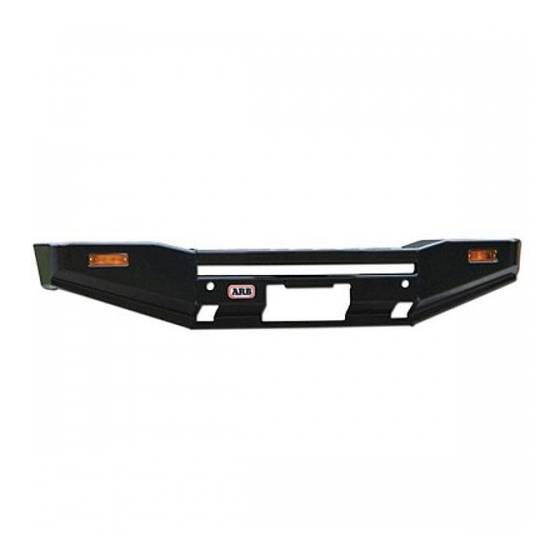

3932400 WINCH BUMPER BAR
Suited to
LAND ROVER 90, 110 AND 130 - 1985 ONWARDS
vehicle/s:
Winch
3532070 (OPTIONAL EXTRA)
Fitting Kit:
Fitting Kit:
6172941
This product must be installed exactly as per these instructions using only the hardware
supplied.
In the event of damage to any bull bar component, contact your nearest authorised ARB
stockist. Repairs or modifications to the impact absorption system must not be attempted.
Do not use this product for any vehicle make or model, other than those specified by ARB.
Do not remove labels from this bull bar.
This product or its fixing must not be modified in any way.
The installation of this product may require the use of specialized tools and/or techniques
It is recommended that this product is only installed by trained personnel
These instructions are correct as at the publication date. ARB Corporation Ltd. cannot be
held responsible for the impact of any changes subsequently made by the vehicle
manufacturer
During installation, it is the duty of the installer to check correct operation/clearances of all
components
Work safely at all times
Unless otherwise instructed, tighten fasteners to specified torque
WINCH BULL BAR
WARNING
ARB 4x4 ACCESSORIES
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ARB 3432300
Summary of Contents for ARB 3432300
- Page 1 Repairs or modifications to the impact absorption system must not be attempted. Do not use this product for any vehicle make or model, other than those specified by ARB. Do not remove labels from this bull bar.
- Page 2 GENERAL CARE AND MAINTENANCE By choosing an ARB Bar, you have bought a product that is one of the most sought after 4WD products in the world. Your bar is a properly engineered, reliable, quality accessory that represents excellent value. To keep your bar in original condition it is important to care and maintain it following these recommendations: ...
- Page 3 1. Open the bonnet and remove the grille from the vehicle by removing the 4 screws on the top of the grille and the 2 screws on the sides of the grille. 2. Store the grille and screws in a safe place. 3.
- Page 4 11. Place the right hand chassis bracket onto the right hand chassis end as shown. 12. Attach using the 2 bolts, washers and nut plates removed in steps 4-6. 13. Repeat on the left hand side. Note: Leave fasteners loose at this stage. 14.
- Page 5 20. Undo the M12 fasteners and remove the bar from the vehicle being careful not to move the mount brackets so they remain in place. 21. Push the factory protection bar down and away from the chassis rails. 22. Using a drill with a 10mm bit suitable for steel, drill the lower mount pinning hole, using the hole in the chassis rails as a guide, drilling from the inside, outward.
- Page 6 29. Drill through the chassis rails with the 10mm drill bit using the upper holes in the mount bracket as a guide. 30. Repeat both sides. 31. Use paint or anti rust on the bare metal of newly drilled hole. Note: Only drill through one side of each rail.
- Page 7 41. Place the plastic plugs supplied in the indicator lamp kits into the grooves in the tags in the bars indicator cavities. 42. Repeat both sides 43. Attach the indicator lamps to each side of the bar using the self tapping screws provided with the lamps.
- Page 8 47. Pass the looms up under the front of the vehicle on each side and in between the wheel arch liners and the body until they are visible through the holes made by the removal of the indicator lamps. Note: Ensure the convoluted tube is covering the section of the loom that passes between the wheel arch liner and the body.
- Page 9 Winch Bull Bar fitted to vehicle Winch Bumper fitted to vehicle...
