Ir Header (Ir1) - Shuttle MS52P User Manual

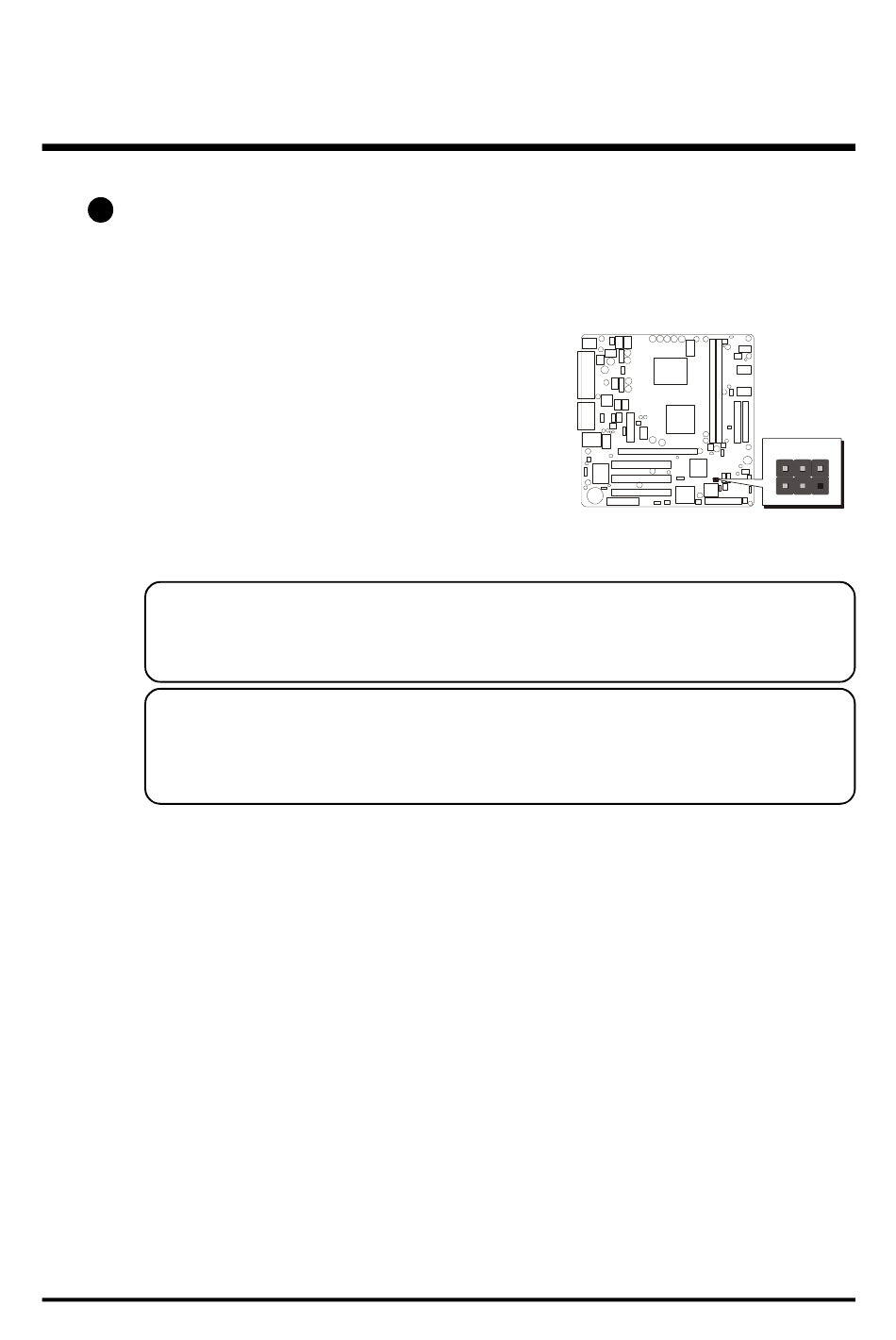

IR Header (IR1)

E6
If you have an Infrared device, this mainboard can implement IR transfer
function. To enable the IR transfer function, follow these steps:
Pins Assignment:
1=Not assigned
2=KEY
3=+5V
4=GND
5=IRTX
6=IRRX
Note: Before connect your IR device, please be sure each IR on board pin
allocation is matchable with the pin of the IR device. Otherwise,
incorrect IR connection may do damage to your IR device.
Step 1. Attach the 6-pin infrared device cable to IR1.
(Refer to the above diagram for IR pin assignment.)
Step 2. This mainboard supports Normal, IrDA transfer modes.
- 37 -
IR1
1
