Step 11
Connect External Peripherals to Back-Panel

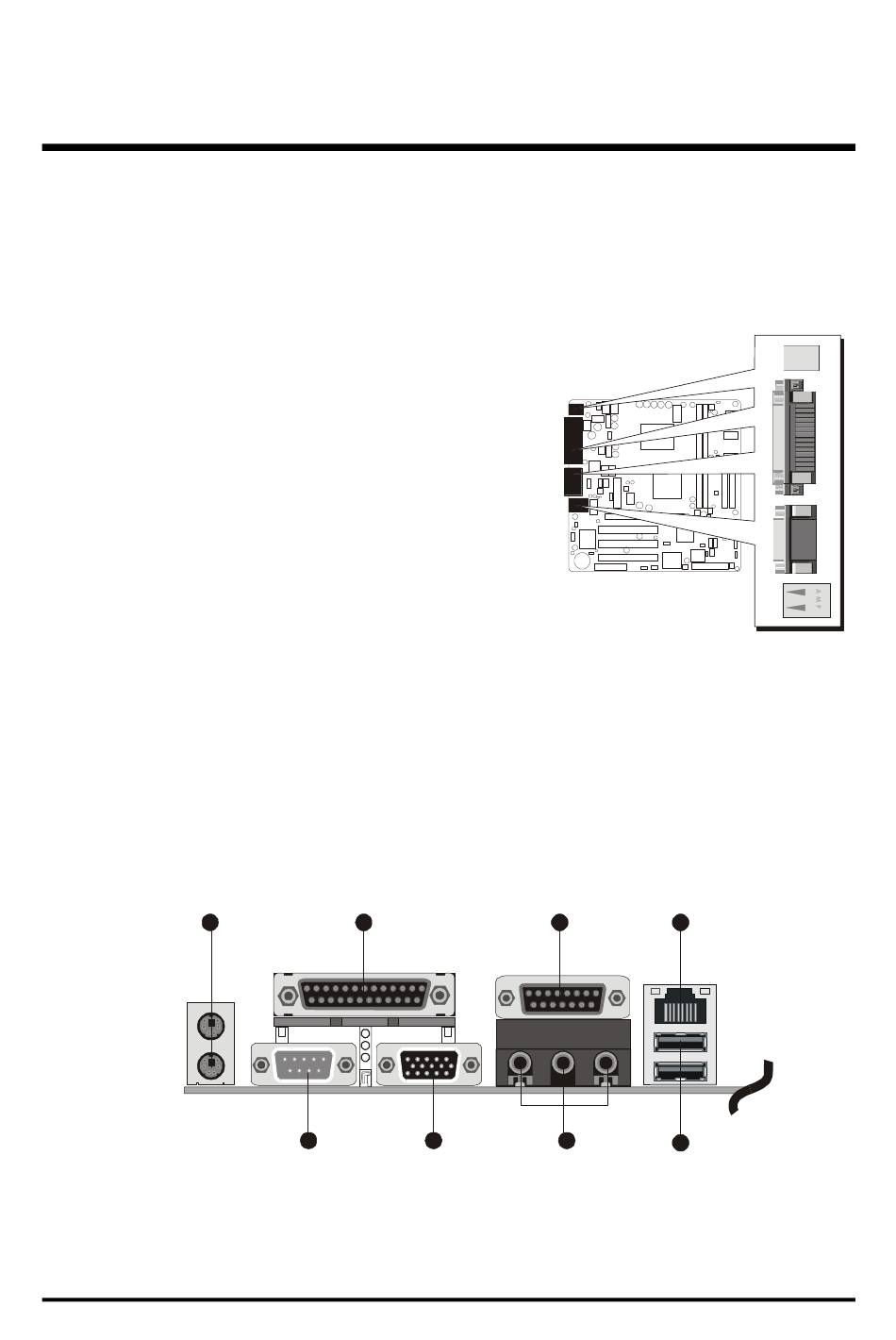

You are now ready to put the computer case back together and get on to the
external peripherals connections to your system's back-panel.
1. PS/2 Mouse and PS/2 Keyboard
2. COM1 Port
3. VGA Port
4. Parallel Port
5. Audio Line-Out /Line-In / Mic-In Ports
6. MIDI/GAME Port
7. LAN Port (MS52PN only)
8. USB ports
1 4
foxconn
2 3
- 21 -
6 7
5
8
PSKBM1
A M P A M P
COM1
VGA1
USB
