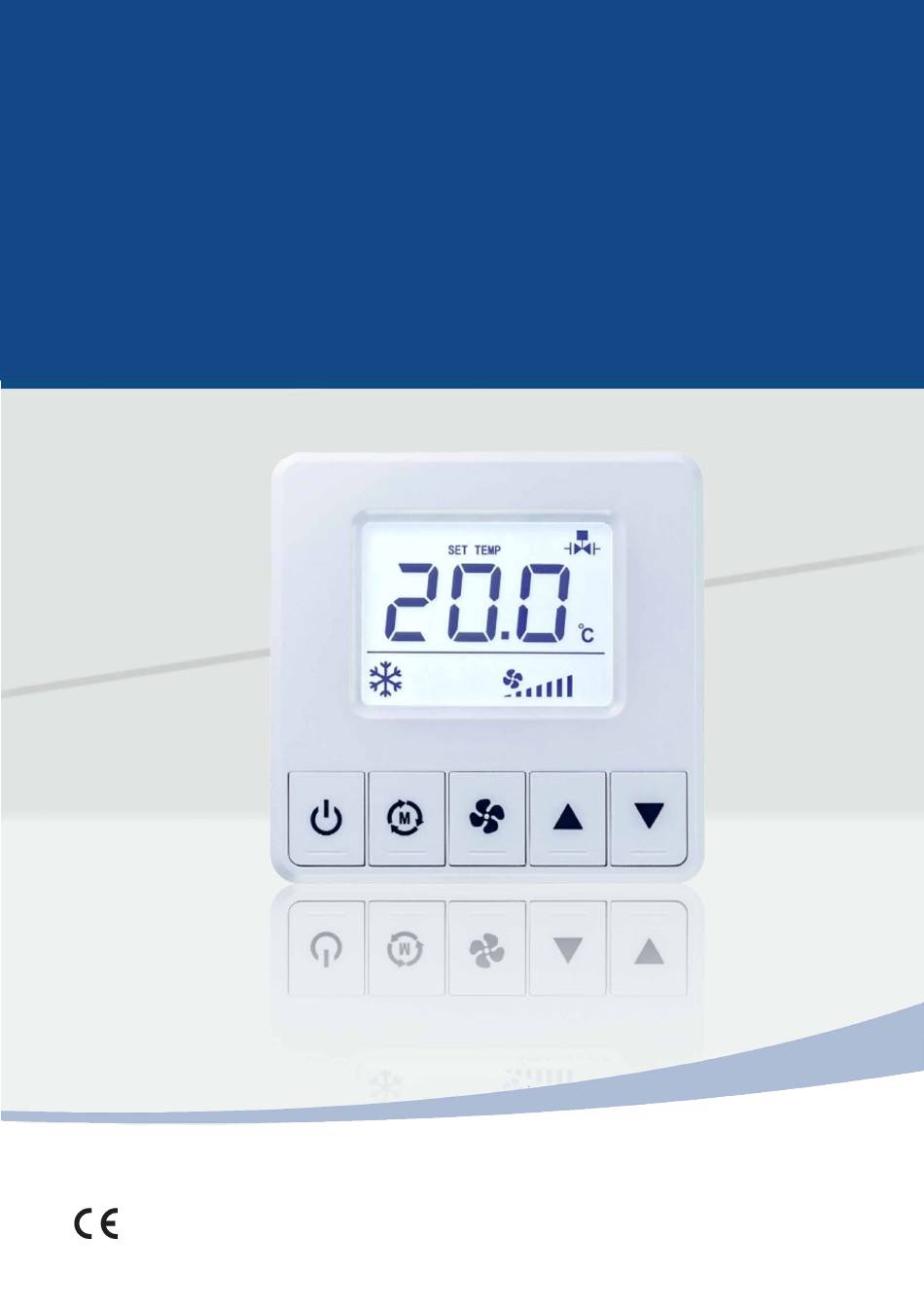

- Page 1 Installation and maintenance manual TControl EASY 3S Controller for Fan Coil Units...
- Page 3 INSTALLATION INSTRUCTION English NOTICE D’INSTALLATION Français INSTALLATIONSHANDBUCH Deutsch ISTRUZIONI INSTALLAZIONE Italiano INSTRUCCIONES DE INSTALACIÓN Español...
-
Page 4: Table Of Contents
2 TControl EASY 3S CONTENTS 1. APPLICATION ....................................3 2. TECHNICAL DATA ....................................3 3. RESPONSIBILITY AND RESIDUAL RISKS ............................4 4. SECURITY ADVICE – CAUTION ................................4 5. REMARKS TO ROOM SENSORS ................................. 5 6. SURFACE AND FLUSH MOUNTING ..............................5 7. -
Page 5: Application
TControl EASY 3S 1. APPLICATION The fan coil room thermostat has been designed for individual control of temperature in commercial, industrial and residential buildings. It is tailored for two-pipe and four-pipe fan coil with ON/OFF electric valves. It supports AC fan motor*. With its flush mounted modern design the device combines digital technology with a large LCD display and additional buttons, which enable the single room controller to be used intuitively. -
Page 6: Responsibility And Residual Risks
This controller is not compatible with electrical heaters. Notes on Disposal As a component of a large-scale fixed installation, Systemair products are intended to be used permanently as part of a building or a structure at a pre-defined and dedicated location, hence the Waste Electrical and Electronic Act (WEEE) is not applicable. -
Page 7: Remarks To Room Sensors
TControl EASY 3S 5. REMARKS TO ROOM SENSORS Location and Accuracy of Room Sensors The room sensor should be mounted in a suitable location for measuring accurate room temperature. The accuracy of the temperature measurement also depends directly on the temperature dynamics of the wall. -
Page 8: Maintenance Instructions
6 TControl EASY 3S 9. MAINTENANCE INSTRUCTIONS It is recommended to clean the touch surface with a damp cloth. Please, do not use aggressive cleaning agents and do not allow water to run behind the surface. 10. TERMINAL CONNECTION PLAN 11. - Page 9 TControl EASY 3S Display fan speed: Medium High Auto Parameter No. Parameter value Value decrease key Changer No, key Value increase key Exit setting key Name of parameter Parameter definition Default Temp. correction Range ±10 °C 0 – unlocked 1 - lock on/off...
-
Page 10: Commissioning
8 TControl EASY 3S 12. COMMISSIONING By pressing the “ ” and “ ” key at the same time for more than 3 s, the units °C or °F can be ² selected. Temperature display range is 0..+50 °C or +32..+99 °F. Factory default is °C. - Page 12 As part of our ongoing product improvement programme, our products are subject to change without prior notice. Non contractual photos. Systemair AC SAS Route de Verneuil 27570 Tillières-sur-Avre FRANCE & : +33 (0)2 32 60 61 00 6 : +33 (0)2 32 32 55 13...
