  • Page 1 Topvex VAV Software version 4.0–1–02 Installation instructions Document in original language | 151785 · A002...
  • Page 2 © Copyright Systemair AB All rights reserved E&OE Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. 151785 | A002...
  • Page 3: Table Of Contents

    Contents General VAV-kit ..........1 Warnings............1 Mount pressure transmitters......1 Wiring............2 Configuration Guide: Fan control type – Pressure............3 Log in ..........3 Activation..........3 Allocation ..........4 Operation settings ........5 Save local settings ........5 External connections ........6 151785 | A002...
  • Page 5: General Vav-Kit

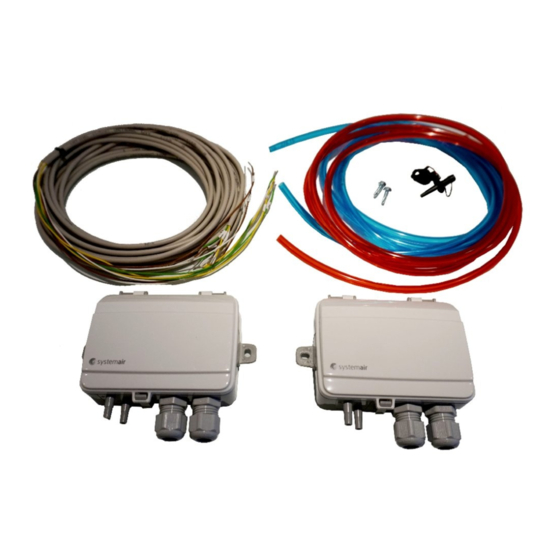

    General VAV-kit | General VAV-kit The VAV duct pressure control kit is used for VAV control of Air Handling units. Included in the kit are: 2 pcs of pressure transmitters PTE (Pressure Transmitter Extract), PTS (Pressure Transmitter Supply), pressure outlet, tubes, electrical ca- bles (4m) and installation instruction.
  • Page 6: Wiring

    | Wiring Wiring Change the settings of the dip-switches according to table 2. 1 2 3 4 White White Yellow Yellow Brown Brown Green Green 1 2 3 4 White White Yellow Yellow Brown Brown Green Green Table 2 Dip-switch 2, 3 and 4 Dip-switch setting Pressure range (Pa) 2 = OFF, 3 = OFF, 4 = OFF...
  • Page 7: Configuration Guide: Fan Control Type - Pressure

    Configuration Guide: Fan control type – Pressure | Configuration Guide: Fan control type – Pressure Log in Log in with service mode using password 0612. Overview: Service 0612 Login Step by step: Open the log in window Select service from drop down list Type in password 0612 Press Login.
  • Page 8: Allocation

    | Configuration Guide: Fan control type – Pressure Allocation Setup differential pressure sensors. Select I/O placement for the differential pressure sensors and set the sensors’ measuring range in the “Configuration > I/O allocation settings > Analog inputs” menu. Overview: Configuration > I/O allocation settings > Analog inputs 06 Nov 8:25 Analogue inputs Signal...
  • Page 9: Operation Settings

    Configuration Guide: Fan control type – Pressure | Operation settings Adjust the fan pressure set points in the “Data & Settings > Fan Control > Main settings” menu. Overview: Data settings > Fan control > Main settings 06 Nov 8:25 100 Pa Setpoint low speed supply air fan 100 Pa...
  • Page 10: External Connections

    | External connections External connections Table 3 Connections to external functions Terminal block Description Remark Ground Earthed neutral (mains power supply) Used for phase 230V 1~ and 400V 3~ Used for phase 230V 1~ if the Phase (mains power supply) unit has this mains 400V 3~/230V 3~ Phase (mains power supply)
  • Page 11 151785 | A002...
  • Page 12 Systemair Sverige AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com...
