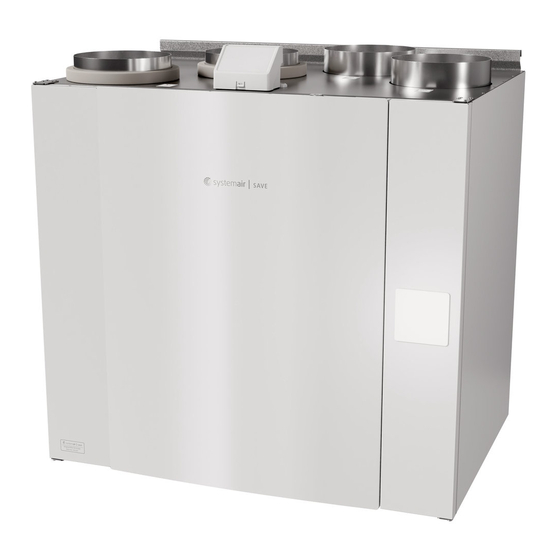

- Page 1 SAVE VTC 500 User Manual Document in original language | 254487 · v01...
- Page 2 254487 | v01...
-
Page 3: Table Of Contents
Contents Overview ............1 4.6.3 Checking the roof cowl (if fitted)........13 General Description ........1 4.6.4 Checking and cleaning the Warranty ..........1 duct system ......13 Type label..........1 Troubleshooting..........13 Warnings............1 Electrical data ..........14 Operation ............2 Disposal and recycling ........14 SAVE LIGHT control panel ......2 3.1.1 Indicators .........2... -
Page 5: Overview
For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found next to the external connections and inside of the unit. -
Page 6: Operation
| Operation Warning • This product is not intended to be used by children or people with reduced physical or mental ability or lack of experience and knowledge, if no instruction concerning the use has been given by the person responsible for their safety or that this person is supervising the operation. -
Page 7: To Cancel Sleep Mode
Operation | Refresh Auto — flashing High Normal (Minimum) (Maximum) slowly Automatic The fan can be Fan speed – 25% Fan speed – 45% Fan speed – 70% Sets speed of airflow control. set to Off by both supply and activating extract air fans Available only... -
Page 8: Common Symbols
| Operation SAVE CONNECT solution (mobile application and Internet access module) has a similar menu structure and functionality as SAVE TOUCH control panel, so this section can also be used as a guide for the mobile application. 3.2.1 Common symbols The following selection symbols are common and are present in most menu pages: On and Off slider to activate or Back button to return to a previous... -
Page 9: Quick Information Screen
Operation | Touch HELP button to know more about the alarm. To clear the alarm, touch ACKNOWLEDGE button. Note: The underlying cause of the alarm must be resolved first otherwise the alarm will appear again. If the problem continues contact your installation company or place of purchase. 3.2.4 Quick Information screen Quick information screen can be shown instead of a sleep... - Page 10 | Operation Duration have to be set for temporary user modes. SAVE VTC 500 will return to its previous working mode after the set time expires. Note: AUTO mode is available for selection only if the optional Demand Control, Week Schedule and/or external fan control functions are activated.
-
Page 11: To Change The Temperature
Operation | Icon Text Description Sets speed of both supply and extract air fans to Maximum levels to replace Refresh indoor air with a fresh air in a short period of time. Set duration in minutes. Sets speed of supply air fan to High level and extract air fan to Low level to increase air pressure within the apartment for better smoke extraction through Fireplace the chimney. -
Page 12: To Set A Week Schedule
| Operation 3.2.8 To set a week schedule While in home screen, touch menu icon and select Week Schedule. The menu is locked by default. Enter a password (default password is 1111). Touch icon at the bottom left corner of the screen to add a new schedule or press EDIT button to modify already added schedule. -
Page 13: Maintenance
1. It is recommended to do this every 5 years and is normally carried out by authorized companies specialized in this area. • Use original spare parts from Systemair only. • Scan the code on the type label to find a spare part list. -
Page 14: To Change Filters
| Maintenance Use Allen key (not included) to unlock locks at the top and bottom of the front cover. Open the front cover. Remove two screws at the top and bottom of the side cover to open it. To change filters The filters cannot be cleaned and must be changed as necessary. -
Page 15: To Select A Different Filter Kit
Maintenance | 4.3.2 To select a different filter kit Standard filters are designed for good outdoor air quality. It is possible to se- lect and order filter kits for poorer air quality environment. To change filter kit type 1. Touch Select different filter kit button in the alarm menu. Alternatively, go to Filter menu (3.2.2 Home screen overview, page 4, pos. -
Page 16: Left Version
| Maintenance 4.5.1 Left version 1. Stop the unit by disconnecting the mains. 2. Open the front hatch. See chapter 4.2. 3. Pull out the exchanger using the strap at the front. See chapter 4.4 4. Remove knobs that hold fans in place. 5. -
Page 17: Duct System Maintenance
Troubleshooting | 7. Clean the fan using a cloth or a soft brush. Do not use water. White spirit can be used to remove obstinate settle- ments. Allow to dry properly before remounting. 8. Remount fans, reconnect fast couplings and tubes. 9. - Page 18 | Electrical data 12.Check diffuser/louvre openings. The unit cannot be controlled (control functions are stuck 1. Reset control functions by disconnecting mains power for at least 10 seconds. 2. Check the modular contact connection between the control panel and the main printed circuit board. Low supply air temperature 1.
- Page 19 254487 | v01...
- Page 20 Systemair UAB Linų st. 101 LT–20174 Ukmergė, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.com...
