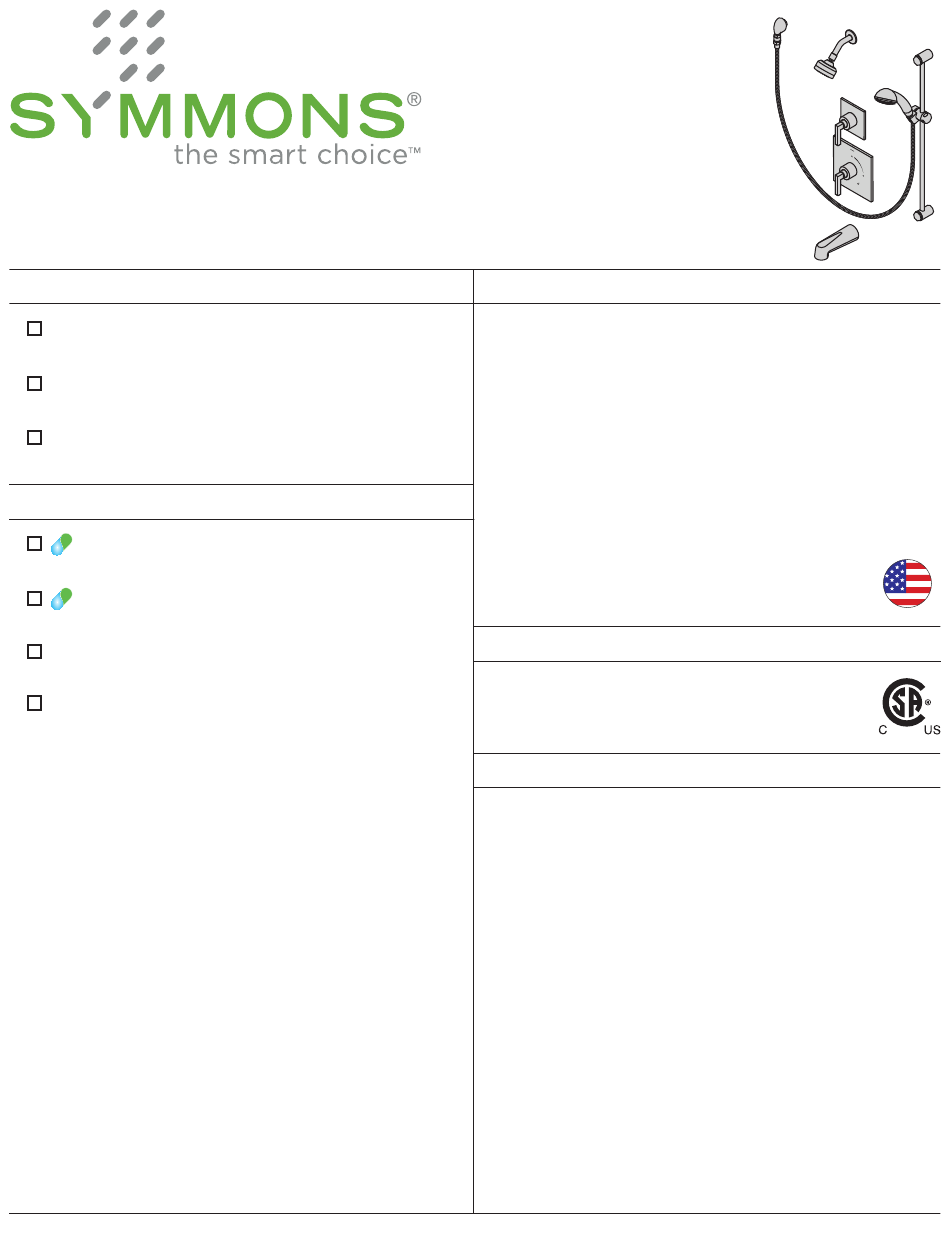

3603-H321-V-TRM, 3605-H321-V-TRM, 3606-H321-V-TRM
Duro™ Trim Series
Operation & Maintenance Manual
Model Numbers
3603-H321-V-TRM
Valve Trim with Hand Shower
3605-H321-V-TRM
Shower Trim with Hand Shower
3606-H321-V-TRM
Tub/Shower Trim with Hand Shower
Options/Modifications
-1.5
1.5 gpm (5.7 L/min) flow restrictor
-2.0
2.0 gpm (7.6 L/min) flow restrictor
-LW
Wide lever handle (chrome finish only)
-SS
Slip spout on any tub/shower unit
Note: Append appropriate -suffix to model number.
Specification

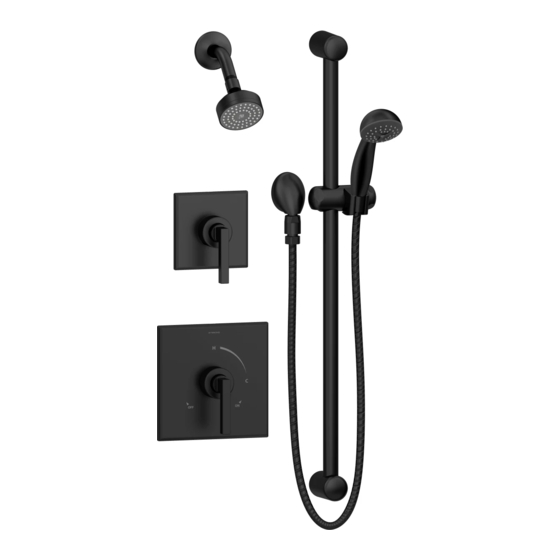

Tub/shower trim with hand shower and lever handle
includes wall connection, 30" slide bar, in-line vacuum
breaker, flexible metal hose, non-diverter tub spout,
1 mode hand shower and 1 mode showerhead with
standard 2.5 gpm (9.5 L/min) flow restrictor. Shower
trim with hand shower and lever handle includes all of
the above less non-diverter tub spout. Valve trim with
hand shower and lever handle includes all of the above
less non-diverter tub spout and 1 mode showerhead.
Components made from metal and nonmetallic
materials plated in standard polished chrome finish.
Compliance
-ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Advertisement
Table of Contents
Related Manuals for Symmons Duro Trim 3603-H321-V-TRM
Summary of Contents for Symmons Duro Trim 3603-H321-V-TRM
- Page 1 -ASME A112.18.1/CSA B125.1 Slip spout on any tub/shower unit Warranty Limited Lifetime - to the original end purchaser in consumer/residential installations. 5 Years - for industrial/commercial installations. Refer to www.symmons.com/warranty for complete warranty information. Note: Append appropriate -suffix to model number.
- Page 2 Dimensions Measurements Ø 2 1/4”, 57 mm 5 7/8”, 149 mm 6”, 152 mm right or left Male 1/2” NPT thread must be recessed 1/4” from finished wall Ref. 77”, 1956 mm 4 7/8”, 123 mm 5”, 127 mm 7 1/2”, 191 mm 10”, 254 mm Ø...
- Page 3 Parts Breakdown Replacement Parts Item Description Part Number In-line Vacuum EF-104 Breaker & 60” Hose Wall Elbow EF-105 Hand Shower EF-100 Slide Bar SC-115 Assembly Shower Arm 300S Flange Showerhead 362SH Diverter Escutcheon Screws T-525-NS Mounting Plate Gasket Screws Escutcheon T-470-NS-K009 Mounting Plate Gasket...
- Page 4 Installation Note: 3) Attach shower escutcheon (L) to 5) Install diverter handle (3605 and For valve body installation, please large plastic mounting plate (M). 3606 only) (J) and shower see valve body installation guides. handle (J) to valves. Secure handles by tightening set screws. 1) Install small plastic mounting plate (H) to diverter valve (3506 diverter valve = 4-460E-BODY,...
- Page 5 Installation 7a) Dry Wall Option: Remove upper 7b) Stud Option: Remove upper and 8) With slide bar (P) in position, and lower caps (N) from slide bar lower caps (N) from slide bar secure to wall using screws (O). brackets. Place slide bar (P) into brackets.
- Page 6 Installation 9) Install wall elbow (B) to stub 11) Install showerhead (E) to shower 12) Attach large end of hand shower out pipe. Tighten set screw arm (C). Turn clockwise to hose (Q) to hand shower wand to secure. tighten. (I).
- Page 7 ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2015 Symmons Industries, Inc. www.symmons.com gethelp@symmons.com ZV-3017 REV 0 100314...
