Symmons Allura S-4704-TRM Operation & Maintenance Manual

Tub/hand shower trim
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

S-4704-TRM
Allura

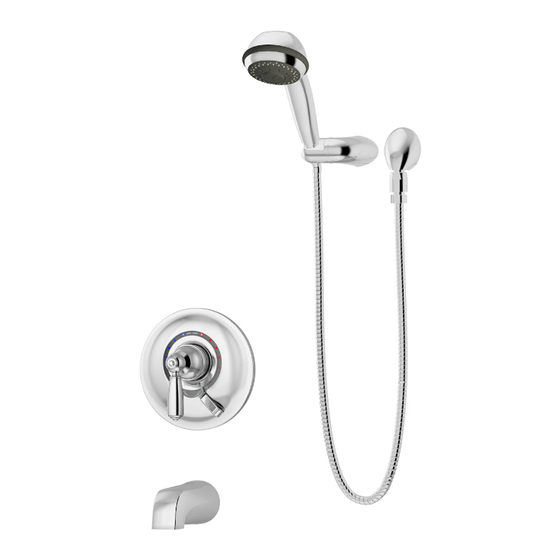

Tub/Hand Shower Trim
®
Operation & Maintenance Manual
Model Numbers
S-4704-TRM
Valve Trim with Hand Shower
Options/Modifications
-1.5
1.5 gpm (5.7 L/min) flow restrictor
-2.0
2.0 gpm (7.6 L/min) flow restrictor
-H323-V
30" slide bar in place of wall cradle on hand
shower units
-LAM
Metal finish insert handle
-LR
Lever handle
-SS
Slip spout on any tub and shower unit
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.
Specification
Tub/hand shower trim with lever handle and secondary
integral diverter handle includes wall connection, cradle
for hand shower mounting, non-diverter tub spout,
in-line vacuum breaker, flexible metal hose and 3 mode
hand shower with 2.5 gpm (9.5 L/min) flow restrictor.
Components made from metal and plastic materials
plated in standard polished chrome finish.
Compliance
-ASME A112.18.1; CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Allura S-4704-TRM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Symmons Allura S-4704-TRM

Summary of Contents for Symmons Allura S-4704-TRM

  • Page 1 30” slide bar in place of wall cradle on hand consumer/residential installations. shower units 5 Years - for industrial/commercial installations. -LAM Metal finish insert handle Refer to www.symmons.com/warranty for complete warranty information. Lever handle Slip spout on any tub and shower unit -STN Satin Nickel finish...
  • Page 2 Dimensions Measurements Ø 2 1/8”, 54 mm Ø 7”, 178 mm 6”, 152 mm right or left Male 1/2” NPT thread must be recessed 1/4” from finished wall 2 1/2”, 64 mm Ref. 32”, 813 mm 12”, 305 mm 3 1/8”, 79 mm 4 1/8”, 105 mm 1/2”...

  • Page 3: Parts Breakdown

    Parts Breakdown Replacement Parts Item Description Part Number In-line Vacuum EF-109 Breaker Wall Elbow EF-105 Wall Cradle Cradle Hardware EF-106 Cradle Mount Plug Button Handle Screw RTS-026 Star Washer Handle Dome Cover T-19 Dial Mounting Screws T-131A Shower Escutcheon Hand Shower HS-143 Secondary Lever T-139...

  • Page 4: Installation

    Installation Note: 3) Install dome cover (J) to valve by 5) Install tub spout (P) to pipe fitting. For valve body installation, please turning clockwise. Turn clockwise to secure. see valve body manual. 1) Attach integral diverter handle (O) to shower escutcheon (M). 6) Install wall elbow (B) to recessed pipe fitting.
  • Page 5 Installation Option: Place mounting plate (E) in 9) Attach large end of hand shower position, mark and drill 3/16" holes hose (Q) to hand shower into wall. Install anchors. (N). Connect in-line vacuum breaker to wall elbow (B). Turn clockwise to tighten. 8) Remove cover of hand shower cradle (C).

  • Page 6: Operation And Maintenance

    ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ ©2015 Symmons Industries, Inc. www.symmons.com gethelp@symmons.com ZV-3077 REV B 020315...
