5.4 SETTINGS

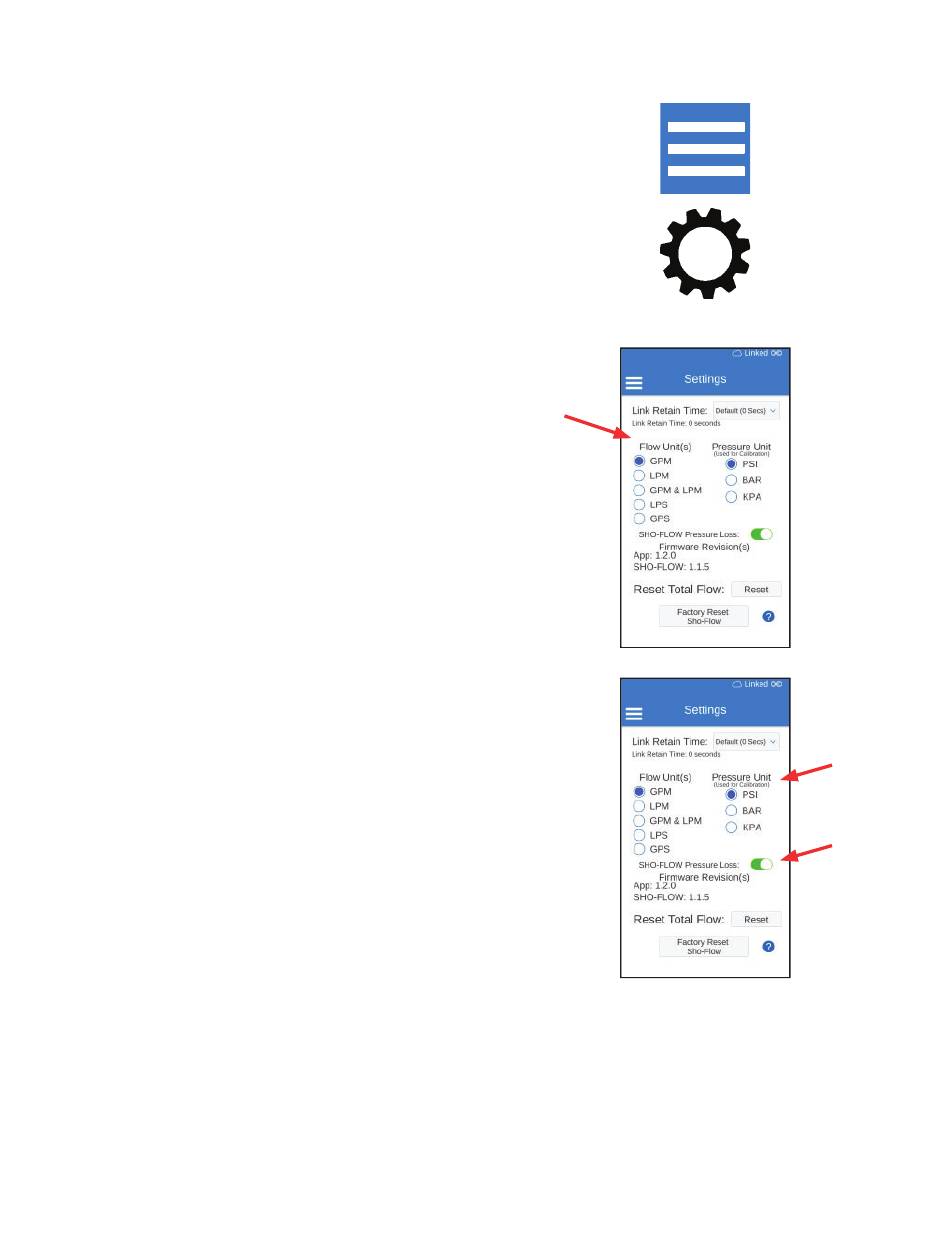

The Settings screen is used to confi gure the app display using the desired fl ow units and other confi guration values, and viewing
Firmware Revisions.
1) To return to this screen press the MENU button.
2) Then press the SETTINGS button.
Flow Units
Select the Flow Units to show on the Flow Display:
• GPM (Default)
• LPM
• Both GPM & LPM
• LPS
• GPS
Pressure Units
Select the Pressure Units to show for calibration and device
pressure loss:
• PSI (Default)
• BAR
• KPA
SHO-FLOW Pressure Loss
Enabled by default, this setting allows the user to view the
calculated pressure loss from the SHO-FLOW device in real time
on the Flow Display screen.
To hide this information on the Flow Display screen press the
toggle button which will hide the pressure loss information until it
is enabled again by the user.
