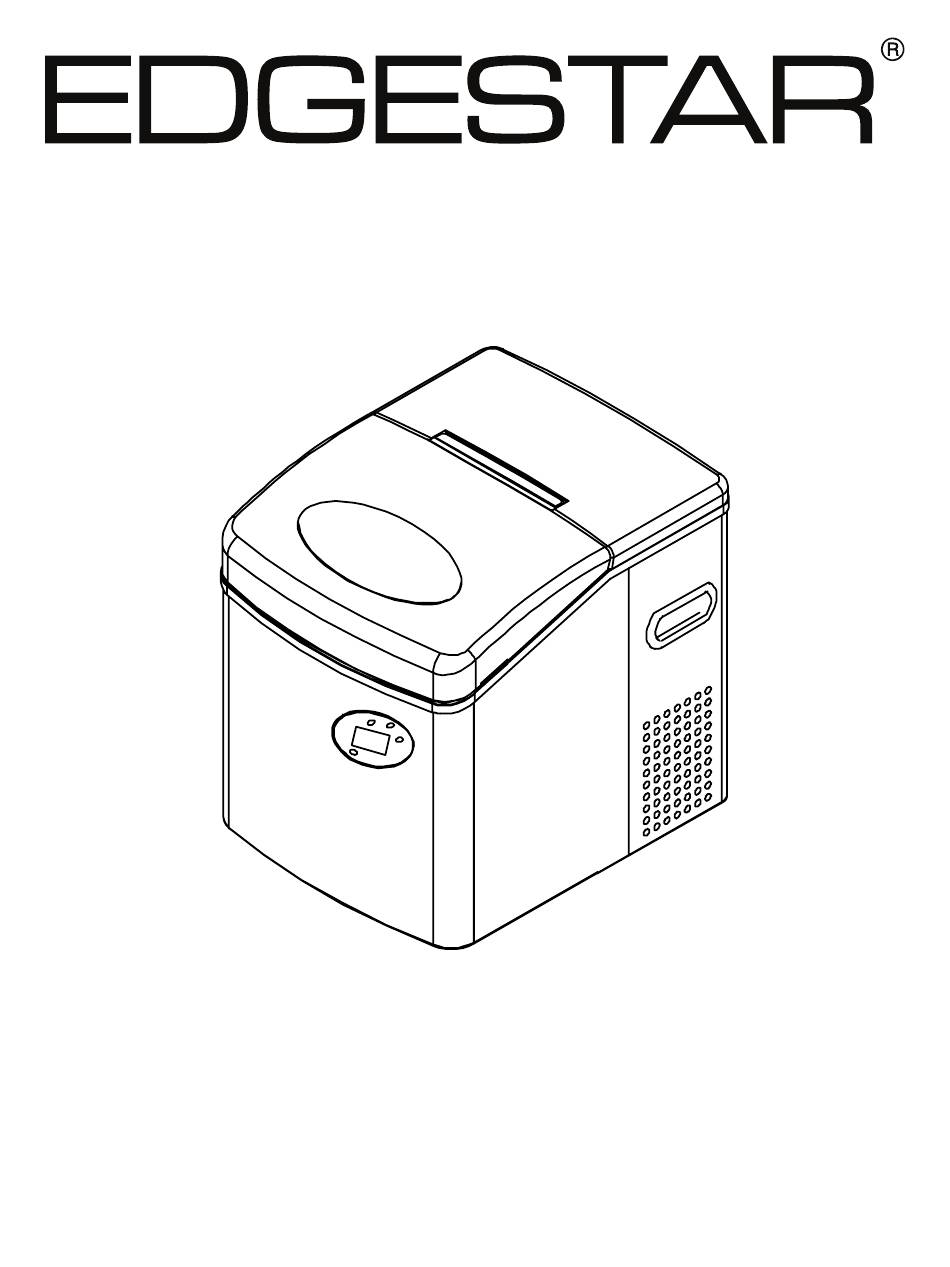

- Page 1 Portable Ice Maker PIM300SS Owner’s Manual www.edgestar.com V1.0 01072020...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar ice maker and / or injury to the user. This ice maker is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. - Page 3 Important Safety Information General Safety • To prevent injuries, use at least two people to move and install the ice maker. • This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety.
-
Page 4: Table Of Contents
Control Panel Operation ..................10 Timer Function ......................11 Self-Clean Function ....................11 How the Ice Maker Produces Ice ................12 Normal Sounds......................12 Draining the Unit...................... 13 Cleaning and Maintenance ..................... 13 Troubleshooting ......................14 Specifications ......................... 16 EdgeStar Limited Warranty .................... 17... -
Page 5: First-Time Operating Instructions
The instruction manual should be read before use. Introduction Thank you for purchasing this EdgeStar ice maker. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Note: Gather the model and serial number from the product label and write them down on the previous page before installing the ice maker. Outer View: LCD Control Panel Air Outlet Drain Plug Ice Scoop Inner View: Cover Window Evaporator Rods Ice Basket... -
Page 7: Installation
Installation The ice maker should be installed in accordance with local electrical code requirements. The ice maker should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded with water and ice than when empty. Before you plug the ice maker into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. -
Page 8: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! • Plug into a grounded 3-prong outlet. • Never remove the grounding prong from the plug. • Never use an adapter to bypass the grounding prong. • DO NOT use an extension cord. • Failure to follow these instructions can result in fire, electrical shock, or death. Before you move your Ice Maker into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required. It is recommended that a separate circuit, serving only your ice maker, be provided. Use receptacles that cannot be turned off by a switch or pull chain. -
Page 9: Operation
Operation Installation Checklist before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the ice maker? 2. Have the installation instructions been followed, including connecting the machine to electricity? And has proper grounding been installed for the ice maker? 3. -
Page 10: Control Panel Operation
Control Panel Operation Feature Function Select Button Press to cycle through desired ice cube size. (Small > medium > large) Timer Button Press to set the unit’s timer. (Refer to the timer section for more information). Clean Button Starts the self-clean function. (Refer to the Self-Clean section for more information). -
Page 11: Timer Function
Timer Function The timer function allows you to either run the unit for a set amount of time before turning off or set a delayed start time. When the unit is turned off, you can set the timer to start ice production after a delay. 1). Press the TIMER button on the control panel. The timer indicator will flash on the LCD display. 2). Press the SELECT button to change the time delay to your desired value between 0.5 and 18 hours by 0.5 hour increments. 3). After you have selected the time delay, do not press any buttons for three (3) seconds. The timer display will then show the time remaining until the unit will start ice production according to your settings. -
Page 12: How The Ice Maker Produces Ice
How the Ice Maker Produces Ice After the unit is powered on, the ice maker rotates the ice case into the horizontal water fill position under the evaporator. The water pump is engaged and fills the ice case with water. Water overflows for a few seconds before the compressor turns on. The compressor then pumps refrigerant, and the fan will turn on automatically after the condenser heats up. The unit produces bullet shaped ice around the evaporator. -
Page 13: Draining The Unit
Draining the Unit Follow the steps below to drain the unit. 1. Carefully move the unit towards a sink or other suitable location for draining. 2. Unscrew the cap and remove the drain plug from the side of the unit to drain the water. 3. -
Page 14: Troubleshooting
Check the product label for power requirements. Hardware malfunction Contact EdgeStar support Water is leaking out the unit. The side drain plug is not Make sure the drain plug is installed. firmly installed. An extra drain ... - Page 15 50°F and below 90°F please move the unit to a cooler room and try again. The fan may not be turning on Contact EdgeStar support to cool down the condenser coils. The “Add Water” light is on even The water filter may be clogged...
-
Page 16: Specifications
Specifications Product Type Portable Ice Maker Model PIM300SS Color Stainless Steel Voltage / Frequency AC 115V ~ 60Hz Amperage (Ice Making - Ice Harvesting) 2.0 - 2.7A Ice Storage Capacity 2.6 lbs Ice Making Capability Up to 48 lbs / day* Refrigerant R290 (1.16oz / 33g) -
Page 17: Edgestar Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. - Page 18 ©2019 EdgeStar...
