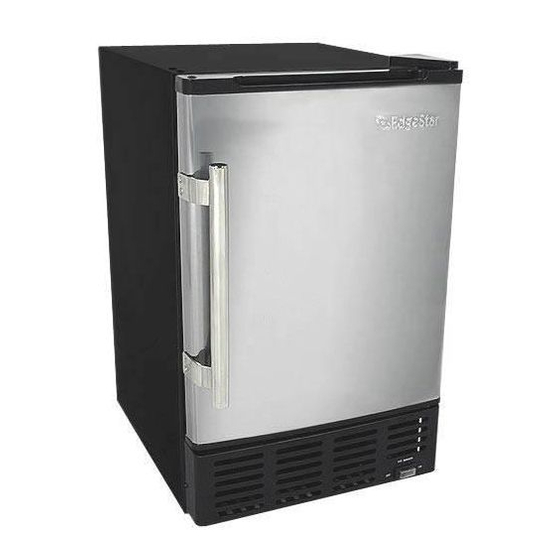

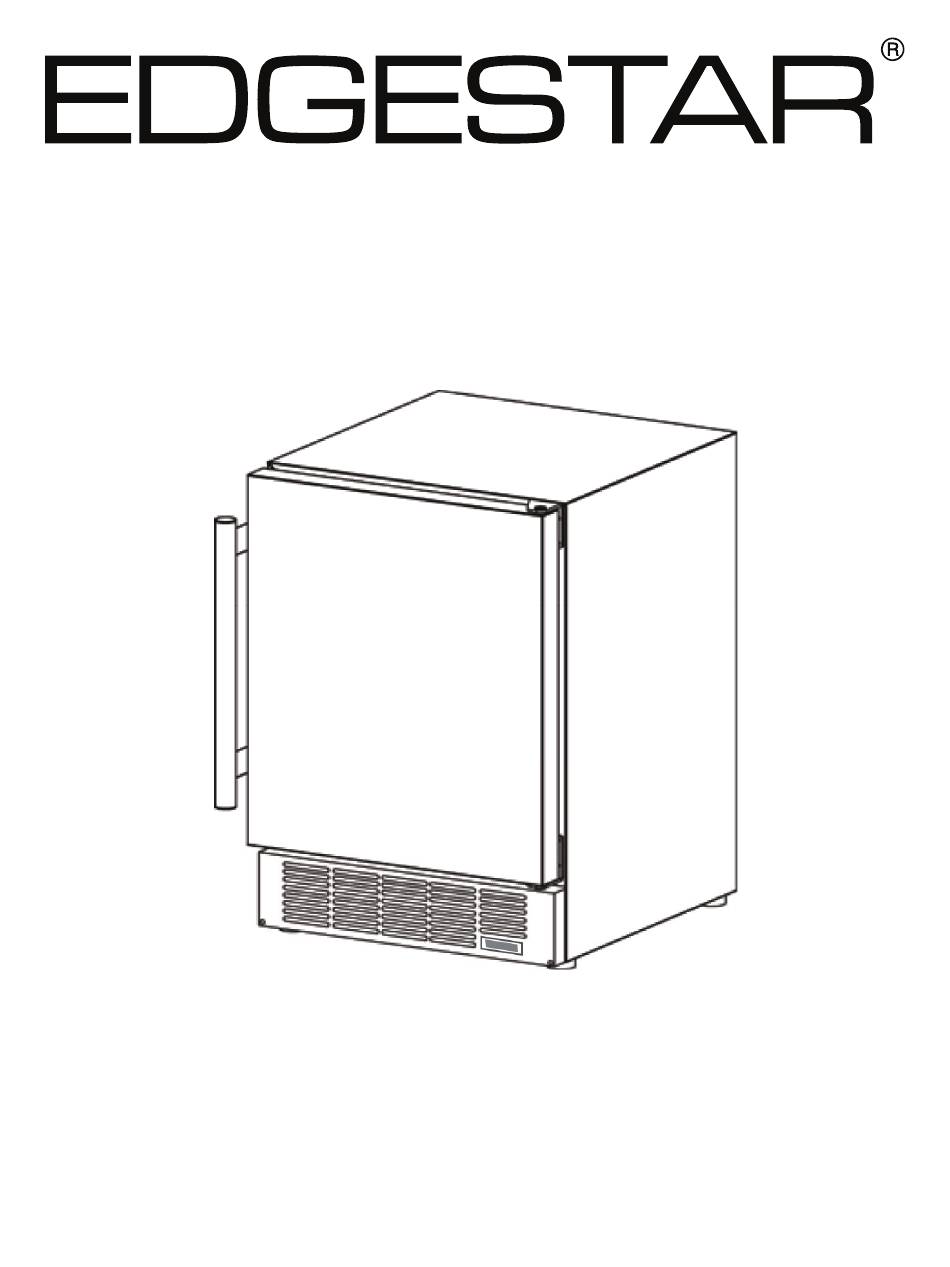

- Page 1 Undercounter Crescent Ice Maker IB120SS Owner’s Manual www.edgestar.com V2.2-08022022...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar ice maker and / or injury to the user. This ice maker is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. - Page 3 Important Safety Information General Safety • To prevent injuries, use at least two people to move and install the ice maker. • This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety.
-
Page 4: Table Of Contents
Begin Using Your Ice Maker ..................12 Standard Ice Production ..................13 Cleaning and Maintenance ..................... 14 Exterior Cleaning ..................... 14 Interior Cleaning ...................... 14 Winterizing....................... 15 Recommissioning ....................15 Condenser Cleaning....................15 Troubleshooting ......................16 Specifications ......................... 17 EdgeStar Limited Warranty .................... 18... -
Page 5: First-Time Operating Instructions
The instruction manual should be read before use. Introduction Thank you for purchasing this EdgeStar ice maker. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Note: Gather the model and serial number from the product label and write them down before installing the wine refrigerator. Front View: Rear View: Accessories 1 x Ice Scoop 1 x Ice Bucket 1 x Water Line Tools Needed Phillips Screwdriver Flat Screwdriver 1/2”... -
Page 7: Installation
Installation The ice maker should be installed in accordance with local electrical code requirements. The ice maker should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh more when fully loaded than when empty. Before you plug the ice maker into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. -
Page 8: Clearance Requirements
Clearance Requirements Notes: 1. There must be an unrestricted path for exhaust and fresh air intake. Recirculation between fresh air intake and exhaust air must be prevented. 2. Any restriction of airflow or ventilation will disrupt the normal operation of the unit, resulting in damage to components and voiding the warranty. -
Page 9: Recommended Grounding Method
Recommended Grounding Method For your personal safety, this appliance must be grounded. It is equipped with a power supply cord that has a 3-pronged grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-pronged wall socket and grounded in accordance with the National Electrical Code and local codes and ordinances. -
Page 10: Reversing The Door Swing
Reversing the Door Swing Note: Before you begin, unplug the ice maker or disconnect the power. Step 1: Disassembly • Start by removing the hinge cap covers that are located on the top of the cabinet on the side of the unit where the door is going to be installed. -
Page 11: Water Supply Connections
Water Supply Connections The water supply should be ready at the point of installation. The water supply pressure should be a minimum of 20 psig with a static pressure not more than 120 psig. (A wall outlet directly behind the ice maker will make installation easier.) The temperature of the water feeding into the ice maker should be between 41°... -
Page 12: Operation
Operation Installation Checklist before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the ice maker? 2. Did you clean the ice storage bin? 3. Have the installation instructions been followed, including connecting the machine to water and electricity? 4. -
Page 13: Standard Ice Production
Standard Ice Production • When the ice bucket is full, the ice maker mold will shut off. However, the refrigeration system will continue to cool and maintain the ice cube supply. • Due to fast freezing, ice cubes may appear “cloudy.” This is trapped air in the water and does not affect the taste or quality of the ice. -
Page 14: Cleaning And Maintenance
Cleaning and Maintenance Note: The ice maker must be thoroughly cleaned before the first use or if it has been left unused for a long time. Carefully follow any instructions provided for cleaning or use of sanitizing solution. Do not leave any solution inside the ice maker after cleaning. Periodic cleaning and proper maintenance will ensure efficiency, top performance, and a long life for your ice maker. -
Page 15: Winterizing
Winterizing Warning: Disconnect power at the source before working on the unit. Do not winterize this unit with ANY type of anti-freeze; damage to the ice maker mold coating will occur, invalidating the product’s Limited Warranty and creating a potential health hazard. 1. -
Page 16: Troubleshooting
Troubleshooting The ice maker doesn’t operate. The ice maker is unplugged. Plug in the ice maker. The breaker is tripped. Check the breaker. If the problem occurs again, call for service to check for a short circuit in the unit. The ice maker’s power button is Switch the ice maker’s power set to OFF. -
Page 17: Specifications
Note: Technical data and performance information are provided for reference only. Specifications are subject to change. Check the rating label on the ice maker for the most accurate information. Description of Product Undercounter Crescent Ice Maker Model IB120SS Voltage/Frequency 115V ~ 60Hz Ice-Making / Ice-Harvest rated current 1.7A Color... -
Page 18: Edgestar Limited Warranty
WHAT IS COVERED: LABOR: For a period of NINETY (90) DAYS from the date of original purchase, labor will be performed free of charge at an authorized EdgeStar repair facility. At its option, EdgeStar will repair the product with new or remanufactured parts, or exchange the defective product with a new, refurbished, or remanufactured product. - Page 19 ©2022 EdgeStar...
