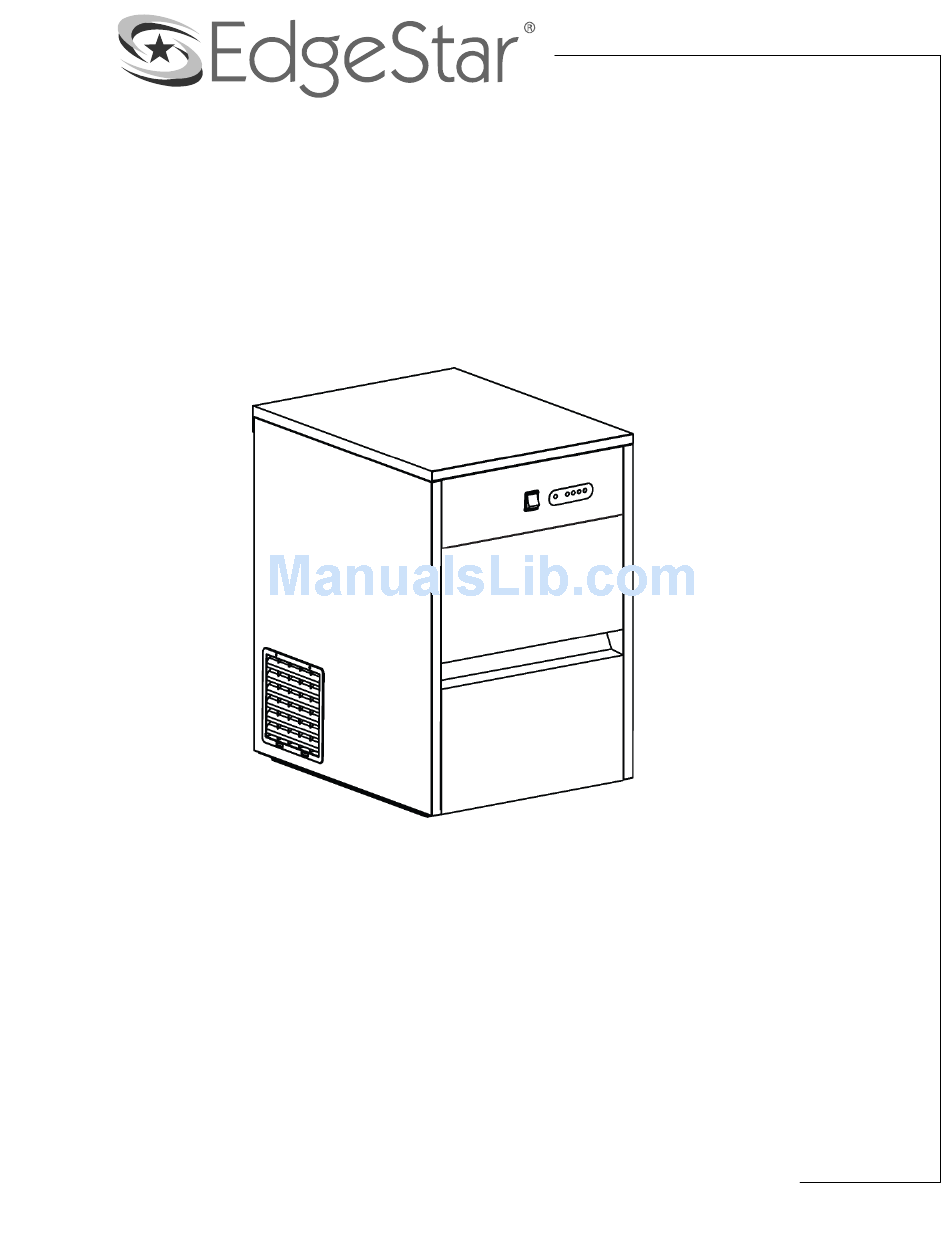

Page 1: Ice Maker
Ice Maker IF80SS Owner’s Manual For more information on other great Edgestar products on the web, go to http://www.edgestar.com... -
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the Edgestar ice maker and/or injury to the user. This ice maker is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. -
Page 3: Table Of Contents
LIMITED WARRANTY ..................10 This owner’s manual is provided for reference use only. Specifications may change without prior notice. Refer to the product label on the back of your ice maker for the latest technical information. Edgestar Portable Ice Maker... -
Page 4: Introduction
Introduction Thank you for purchasing this Edgestar ice maker. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
Air Outlet Drain Plug Back View Ice Maker Part Power Switch Ice Maker Door Air Outlet Display Panel Ice Level Sensor Ice Storage Container Ice Scoop Bottom Floor Feet Power Cord Water Inlet Valve Drainage Tube Edgestar Portable Ice Maker... -
Page 6: Before You Begin: Preparing The Ice Maker For Use
Before you Begin: Preparing the Ice Maker for Use Before you plug the ice maker in to a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. Unpacking the Ice Maker Carefully remove the packaging materials. -
Page 7: Operation
Ice Production is in process. FAULT ICE FULL The ice full light will turn on if the ice basket is full. The water low will turn on if the unit does not have WATER LOW enough water in the reservoir. Edgestar Portable Ice Maker... -
Page 8: How The Portable Ice Maker Produces Ice
How the Portable Ice Maker Produces Ice After the unit is powered on, the ice maker begins with rotating the ice case into a horizontal water fill position under the evaporator rods. The water pump is engaged and fills the ice case with water. Water overflows for a few seconds before the compressor turns on. -
Page 9: Installing The Water Line
3. Connect the drainage tube on water outlet valve. 4. Lightly tighten the compression fitting around the water line with an adjustable wrench or similar tool. 5. Success! You can now enjoy fresh ice made from your ice maker. Edgestar Portable Ice Maker... -
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. Never use a solvent-based cleaning agent. These cleaners may transmit taste to the ice cubes, or damage and discolor the interior. The icemaker must be thoroughly Unplug the unit before cleaning the exterior and interior. -
Page 11: Troubleshooting
Make sure the drain plug is firmly attached. If the drain plug has been lost, you may need to The bottom drain plug is not attached. Water is leaking out the contact EdgeStar to purchase a replacement unit. plug. An internal hose may have been Contact EdgeStar support. -
Page 12: Specifications
Specifications Description of product Portable Ice Maker Model IF80SS Voltage/Frequency AC 115V~60Hz Ice-Making / Ice-Harvest rated 1.2A / 3.5A current Color Silver Ice Storage capacity 7.7 lbs Ice-making capability 44 lbs/ day * Refrigerant R134a, 3.4oz Dimensions 14 7/8” x 18 13/16” x 23 3/16... -
Page 13: Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. - Page 14 Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2011 Living Direct, Inc. All rights reserved.
