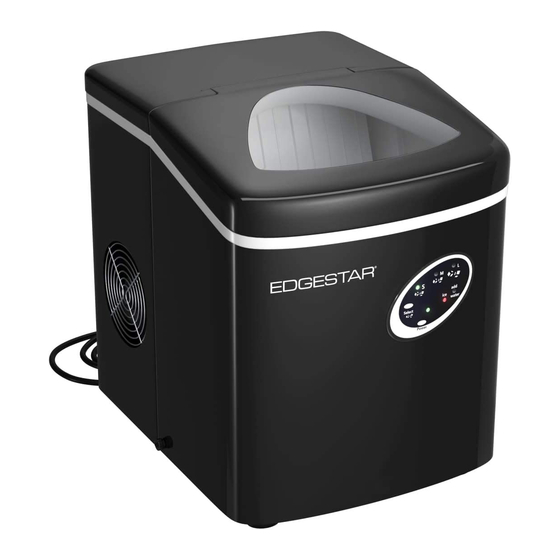

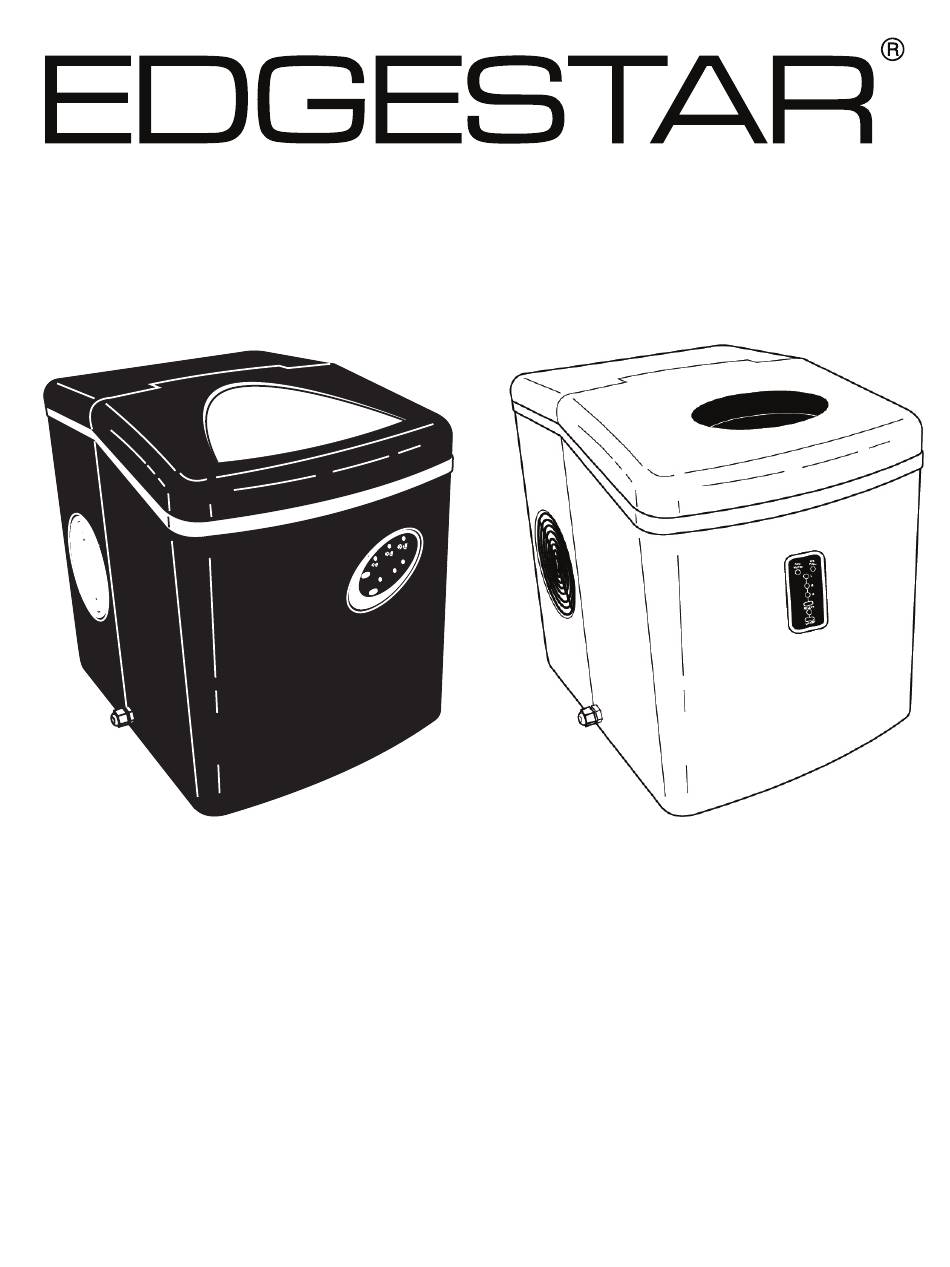

- Page 1 Portable Ice Maker PIM100BL PIM100SS Owner’s Manual www.edgestar.com V1.0 01082020...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar ice maker and / or injury to the user. This ice maker is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. - Page 3 Important Safety Information General Safety • To prevent injuries, use at least two people to move and install the ice maker. • This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety.
-
Page 4: Table Of Contents
First Time Operation ....................9 Control Panel Operation ..................10 How the Ice Maker Produces Ice ................11 Normal Sounds......................11 Draining the Unit...................... 12 Cleaning and Maintenance ..................... 12 Troubleshooting ......................13 Specifications ......................... 15 EdgeStar Limited Warranty .................... 16... -
Page 5: First-Time Operating Instructions
The instruction manual should be read before use. Introduction Thank you for purchasing this EdgeStar ice maker. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Note: Gather the model and serial number from the product label and write them down on the previous page before installing the ice maker. Outer View: Air Outlet Control Panel Control Panel** Ice Scoop Drain Plug **Control panel appearance may vary by model. Operation will remain consistent. Inner View: Cover Window Evaporator Rods... -
Page 7: Installation
Installation The ice maker should be installed in accordance with local electrical code requirements. The ice maker should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded with water and ice than when empty. Before you plug the ice maker into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. -
Page 8: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! • Plug into a grounded 3-prong outlet. • Never remove the grounding prong from the plug. • Never use an adapter to bypass the grounding prong. • DO NOT use an extension cord. • Failure to follow these instructions can result in fire, electrical shock, or death. Before you move your ice maker into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required. It is recommended that a separate circuit, serving only your ice maker, be provided. Use receptacles that cannot be turned off by a switch or pull chain. -
Page 9: Operation
Operation Installation Checklist before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the ice maker? 2. Have the installation instructions been followed, including connecting the machine to electricity? And has proper grounding been installed for the ice maker? 3. -
Page 10: Control Panel Operation
Control Panel Operation PIM100SS PIM100BL WATER FULL water Select SELECT Power ON/OFF Feature Function Add Water Light Illuminates when the water reservoir is low or empty. Turn the unit off, add water to the reservoir, and wait three (3) minutes before restarting. Ice Full Light Illuminates when the ice basket is full. Remove ice to continue ice production. -
Page 11: How The Ice Maker Produces Ice
How the Ice Maker Produces Ice After the unit is powered on, the ice maker begins by rotating the ice case into a horizontal water fill position under the evaporator. The water pump is engaged and fills the ice case with water. Water overflows for a few seconds before the compressor turns on. The compressor then pumps refrigerant, and the fan will turn on automatically after the condenser heats up. The unit then produces bullet- shaped ice around the evaporator. When a batch of ice has been fully formed, the ice maker stops the freeze cycle and begins the harvest cycle. -
Page 12: Draining The Unit
Draining the Unit Follow the steps below to drain the unit. 1. Carefully move the unit towards a sink or other suitable location for draining. 2. Unscrew the cap and remove the drain plug from the side of the unit to drain the water. 3. -
Page 13: Troubleshooting
Check the product label for power requirements. Hardware malfunction Contact EdgeStar support. Water is leaking out the unit. The side drain plug is not Make sure the drain plug is installed. firmly installed. An extra drain ... - Page 14 50°F and below 90°F. please move the unit to a cooler room and try again. The fan may not be turning on Contact EdgeStar support. to cool down the condenser coils. The “Add Water” light is on even The water filter may be clogged.
-
Page 15: Specifications
11 11/16” x 14 7/16” x 14 7/8” (Width x Depth x Height) Net Weight 22 lbs (PIM100BL) / 23 lbs (PIM100SS) Note: The actual quantity of ice produced in a 24hour period will vary with room and water conditions. -
Page 16: Edgestar Limited Warranty
WHAT IS COVERED: LABOR: For a period of NINETY (90) DAYS from the date of original purchase, labor will be performed free of charge at an authorized EdgeStar repair facility. At its option, EdgeStar will repair the product with new or remanufactured parts, or exchange the defective product with a new, refurbished, or remanufactured product. - Page 17 ©2019 EdgeStar...
