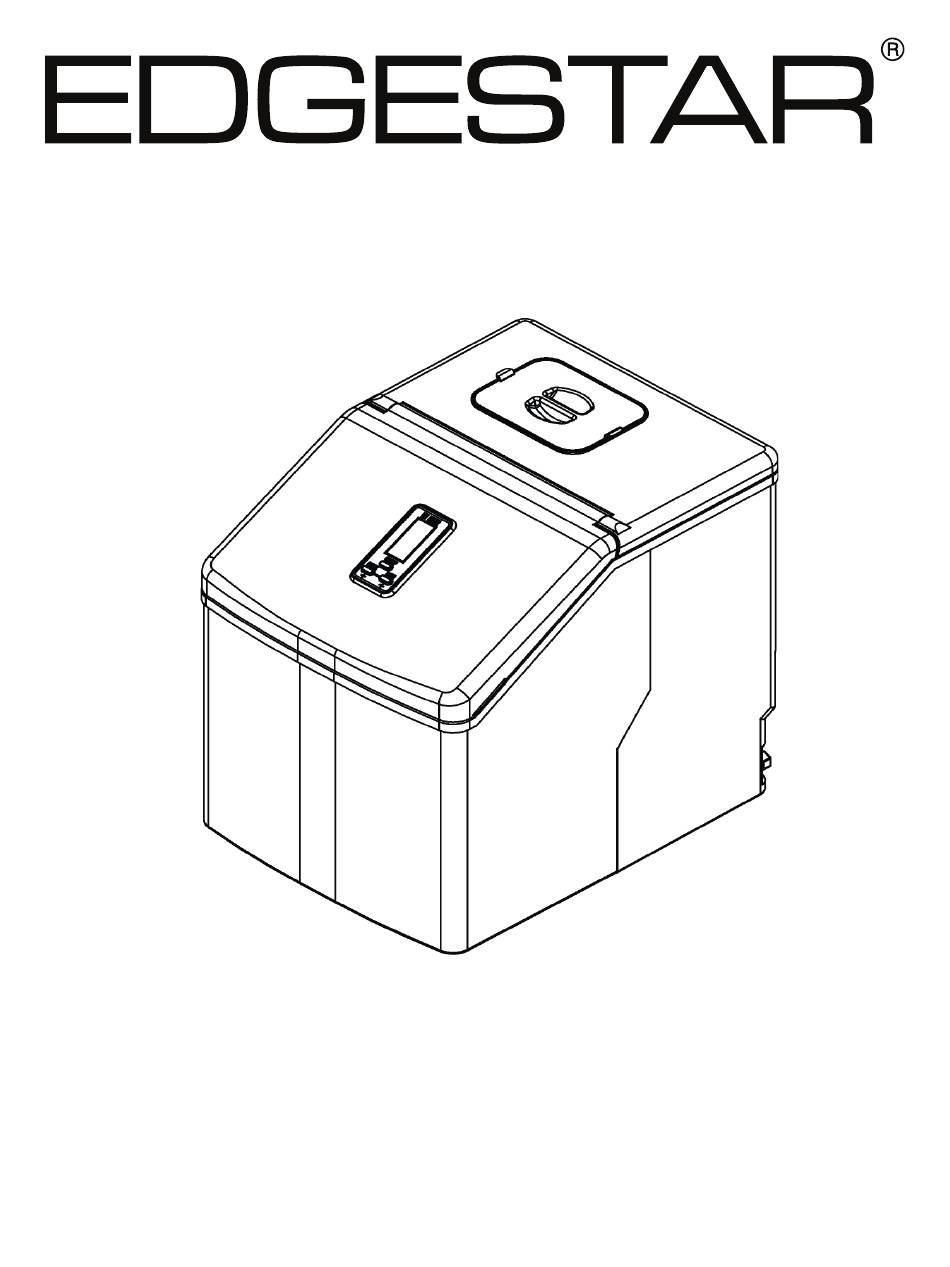

- Page 1 Portable Ice Maker PIM200SS Owner’s Manual www.edgestar.com V1.0 08262020...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar ice maker and / or injury to the user. This ice maker is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. - Page 3 Important Safety Information General Safety • To prevent injuries, use at least two people to move and install the ice maker. • This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety.
-
Page 4: Table Of Contents
Error Resolution ...................... 11 How the Ice Maker Produces Ice ................11 Normal Sounds......................12 Draining the Unit...................... 12 Cleaning and Maintenance ..................... 13 Storage ........................13 Routine Cleaning ..................... 14 Troubleshooting ......................15 Specifications ......................... 17 EdgeStar Limited Warranty .................... 18... -
Page 5: First-Time Operating Instructions
The instruction manual should be read before use. Introduction Thank you for purchasing this EdgeStar ice maker. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Note: Gather the model and serial number from the product label and write them down on the previous page before installing the ice maker. Inside View: Front Cover Top Cover Evaporator Ice Basket Ice Scoop Outer View: Rear View: Water Reservoir Air Outlet Drain Plug... -
Page 7: Installation
Installation The ice maker should be installed in accordance with local electrical code requirements. The ice maker should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded with water and ice than when empty. Before you plug the ice maker into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. -
Page 8: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! • Plug into a grounded 3-prong outlet. • Never remove the grounding prong from the plug. • Never use an adapter to bypass the grounding prong. • DO NOT use an extension cord. • Failure to follow these instructions can result in fire, electrical shock, or death. Before you move your Ice Maker into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required. It is recommended that a separate circuit, serving only your ice maker, be provided. Use receptacles that cannot be turned off by a switch or pull chain. -
Page 9: Operation
Operation Installation Checklist before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the ice maker? 2. Have the installation instructions been followed, including connecting the machine to electricity? And has proper grounding been installed for the ice maker? 3. -
Page 10: Control Panel Operation
Control Panel Operation Warning: Do not power on the unit without any water. Button Function DISPLAY LCD display window shows WINDOW the current settings and unit information (See below). ON / OFF Press to turn the unit on or off. BUTTON + BUTTON Press to add 1 to 6 minutes to ice making time. -
Page 11: Timer Function And Ice Thickness Adjustment
2) Uplug the unit from power for 1 hour. After 1 hour, plug the unit back in and turn on power. Make sure the water reservoir is full and the unit begins making ice. If the error persists, contact EdgeStar support. -
Page 12: Normal Sounds
Normal Sounds The ice maker may make sounds during operation. Most of the new sounds are normal. Hard surfaces like the floor, walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that you might hear and what may be making them. • Rattling noises may be produced from the flow of the refrigerant. • The compressor may make a pulsating or high-pitched sound. • The compressor may also produce a low tone humming sound. • Water that is being pumped into the ice case will make trickling, dripping or splashing sounds. • As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing. • You may hear fan noise and air being forced over the condenser by the condenser fan. • During the harvest cycle, you may hear the sound of ice cubes falling into the ice basket. -
Page 13: Cleaning And Maintenance
Cleaning and Maintenance Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. Never use a solvent-based cleaning agent. These cleaners may transmit taste to the ice cubes, or damage and discolor the interior. You should unplug the unit before cleaning the exterior and interior. Routine maintenance: 1. Take out the ice basket. 2. -
Page 14: Routine Cleaning
Routine Cleaning Ensure that you thoroughly clean each attached and removable part so your ice maker will be fully clean and ready for use. Water Pipe: The water pipe is detachable, so you can remove it, clean with soap, and run clean, warm water through the pipe. -
Page 15: Troubleshooting
Check the product label for power requirements. Hardware malfunction Contact EdgeStar support Power is on but the unit does The unit is in standby mode and Press the On/Off button until the respond to the control panel. - Page 16 Make sure the drain plug is installed. firmly installed. An extra drain plug is included with the unit. An internal hose may have been Contact EdgeStar support. dislodged or disconnected. Noise during operation The unit may not be level Make sure the unit is level and not at an incline.
-
Page 17: Specifications
Specifications Product Type Portable Ice Maker Model PIM200SS Color Stainless Steel Voltage / Frequency AC 115V ~ 60Hz Amperage (Ice Making - Ice Harvesting) 1.6 - 2.6A Ice Storage Capacity 2.4 lbs Ice Making Capability Up to 40 lbs / day* Refrigerant R600a (1.13oz / 32g) -
Page 18: Edgestar Limited Warranty
WHAT IS COVERED: LABOR: For a period of NINETY (90) DAYS from the date of original purchase, labor will be performed free of charge at an authorized EdgeStar repair facility. At its option, EdgeStar will repair the product with new or remanufactured parts, or exchange the defective product with a new, refurbished, or remanufactured product. - Page 19 ©2020 EdgeStar...
