EUROSTER 4010TXRX – INSTALLATION AND OPERATION MANUAL
Wireless, daily room thermostat, for all types of heating devices.
MANUFACTURER: P.H.P.U. AS, Chumiętki 4, 63-840 Krobia, Poland
In order to take full advantage of thermostat capabilities please read this installation and
operation manual carefully.
This manual is intended for the 11.09.2020 version of the thermostat.
1.
THERMOSTAT APPLICATION

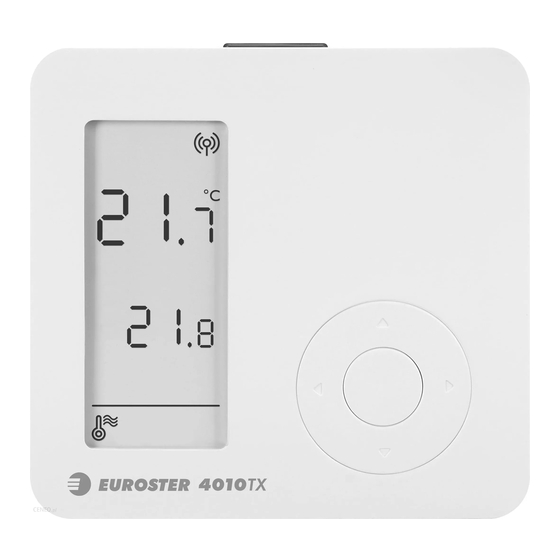

Euroster 4010TXRX is a state-of-the-art, wireless thermostat designed to control the
temperature in living and utility rooms. It is used to control the operation of the CH boiler and
other heating system components. It controls electrical equipment, floor heating, and air-
conditioning systems. The sensor used in Euroster 4010TXRX enables temperature read-out
and programming accuracy of 0.1 °C. The preset temperature is modifiable within the range of
5 °C...35 °C.
2.
BASIC THERMOSTAT FUNCTIONS
•
Does not require leading cable connections between the thermostat and the controlled
device
•
User-friendly thermostat enabling easy control of temperature in living and utility rooms
•
Bidirectional communication ensures high operational reliability and resistance to inter-
ference
•
Possible cooperation with up to 6 Euroster RX receivers
•
Legible, backlit LCD
•
Simultaneous display of current and preset temperature values
•
Temperature read-out accuracy of 0.1 °C
•
Possibility to switch the thermostat off with an active frost protection temperature after
the heating season
•
Temperature read-out correction
•
Surface mounting
3.
THERMOSTAT VISIBLE ELEMENTS
a. Thermostat on/off switch
b. Thermostat control knob
c. Display
EUROSTER 4010TXRX
BODY
1
Advertisement
Table of Contents
Related Manuals for EUROSTER 4010TXRX
Summary of Contents for EUROSTER 4010TXRX
- Page 1 This manual is intended for the 11.09.2020 version of the thermostat. THERMOSTAT APPLICATION Euroster 4010TXRX is a state-of-the-art, wireless thermostat designed to control the temperature in living and utility rooms. It is used to control the operation of the CH boiler and other heating system components.
-
Page 2: Installation
EUROSTER 4010TXRX – INSTALLATION AND OPERATION MANUAL DISPLAY A. Radio communication symbol B. Current temperature C. Preset temperature D. Active heating symbol VISIBLE ELEMENTS OF RX RECEIVER a) On/off switch for continuous operation of the heating device b) Button with signaling LEDs used to... - Page 3 EUROSTER 4010TXRX – INSTALLATION AND OPERATION MANUAL please contact your technician or the manufacturer! 5.2. The proper place of installation The thermostat is designed for indoor installation. No cables are connected to the thermostat, thus it can be placed anywhere. In order to ensure fully efficient operation of the thermostat,...
-
Page 4: Setting Temperature
EUROSTER 4010TXRX – INSTALLATION AND OPERATION MANUAL SETTING TEMPERATURE Use “” buttons to set the desired temperature value. Pressing one of the buttons for the first time activates the backlight, pressing it repeatedly lowers or raises the temperature in increments of 0.1°C. The longer the button is pressed, the faster the values change. Confirm the temperature change with the central button or wait until the set value stops flashing and is stored. - Page 5 EUROSTER 4010TXRX – INSTALLATION AND OPERATION MANUAL TEST MODE (tSt) In the test mode, you may check the main parameters of the thermostat. In order to enter the test mode press and hold the central and left “ ” button for approximately 2 seconds.
-
Page 6: First Start
EUROSTER 4010TXRX – INSTALLATION AND OPERATION MANUAL Factory-established thermostat-receiver pairs are paired, however, pairing may be repeated if necessary. 12.2. Selecting operating mode While holding the "B" button pressed, insert the receiver into the plug socket. Depending on the mode set, the green or red LED lights up. Each time the button is pressed, the operating mode changes. -
Page 7: Technical Data
EUROSTER 4010TXRX – INSTALLATION AND OPERATION MANUAL 14. DIMENSIONS 15. TECHNICAL DATA Controlled device heating systems Supply voltage Thermostat - 3 V (2 pieces of alkaline AAA batteries) / receiver - 230 V 50 Hz Receiver output relay, voltage-free type, SPST... -
Page 8: Warranty Certificate
17. SIMPLIFIED DECLARATION OF CONFORMITY P.H.P.U. AS AGNIESZKA SZYMAŃSKA-KACZYŃSKA hereby represents that the type of EUROSTER 4010TXRX equipment conforms to the following directives: 2014/35/EU (LVD), 2014/30/EU (EMC), 2014/53/EU (RED), 2011/65/EU (RoHS). The complete text of the Declaration of EU conformity is available at the following Internet address: www.euroster.pl...
