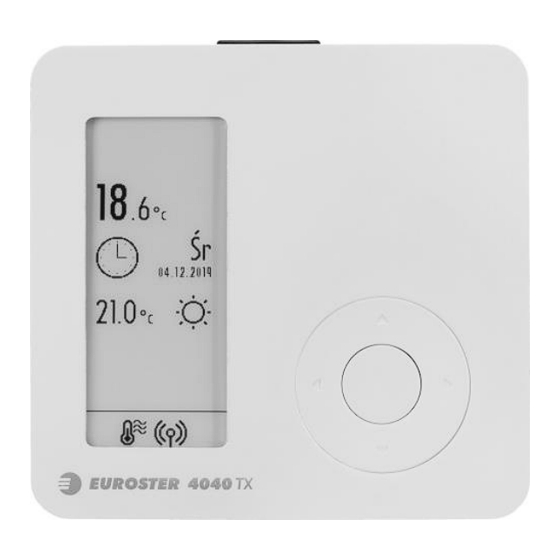

EUROSTER 4040TXC6 – INSTALLATION AND OPERATION MANUAL
Wireless, weekly room thermostat, constituting a part of the Euroster C6RX heating control
MANUFACTURER: P.H.P.U. AS, Chumiętki 4, 63-840 Krobia, Poland
In order to take full advantage of thermostat capabilities please read this installation and
operation manual carefully.
This manual is intended for the 01.08.2022 version of the thermostat.
1.
THERMOSTAT APPLICATION
EUROSTER 4040CXT6 is a wireless, daily thermostat designed for cooperation with the
EUROSTER C6RX floor heating control module. Wireless communication eliminates the
necessity to lay cables between the thermostat and control module and ensures user-friendly
operation.
The thermostat operates with two temperature levels: comfort (day
economical (night
5 °C...35 °C. The thermostat is programmable in seven-day cycles with an accuracy of 0.5 hour,
therefore it enables 48 temperature changes in 24 hours. It is possible to program different time
ranges for each day of the week.
2.
BASIC THERMOSTAT FUNCTIONS
•
User-friendly thermostat enabling easy control of temperature in living and utility rooms
•
Bidirectional communication ensures high operational reliability and resistance to inter-
ference
•
Clear, back-lit E-Ink display
•
Two temperature levels: comfort and reduced
•
0.5-hour accuracy of range programming
•
Simultaneous display of current and preset temperature value
•
Thermostat interlock with a selectable 4-digit code
•
Numerous useful functions: temporary temperature setting, constant temperature, vaca-
tion mode, discharged batteries indication
•
Temperature read-out accuracy of 0.1 °C
•
Possibility to switch the thermostat off with an active frost protection temperature after
the heating season
•
Temperature reading correction
•
Surface mounting
EUROSTER 4040TXC6
system.
temperature. Each temperature is modifiable within the range of
1
temperature and
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EUROSTER 4040TXC6
Summary of Contents for EUROSTER 4040TXC6
- Page 1 EUROSTER 4040TXC6 – INSTALLATION AND OPERATION MANUAL EUROSTER 4040TXC6 Wireless, weekly room thermostat, constituting a part of the Euroster C6RX heating control system. MANUFACTURER: P.H.P.U. AS, Chumiętki 4, 63-840 Krobia, Poland In order to take full advantage of thermostat capabilities please read this installation and operation manual carefully.
-
Page 2: Installation
EUROSTER 4040TXC6 – INSTALLATION AND OPERATION MANUAL 4040 THERMOSTAT VISIBLE ELEMENTS BODY a) Switch activating battery saving mode. b) Thermostat control knob Display DISPLAY a) Current temperature b) Clock c) Preset temperature d) Number of the zone (1-6 to which the thermostat is assigned (M - thermostat serves as a Master . -
Page 3: User Settings
EUROSTER 4040TXC6 – INSTALLATION AND OPERATION MANUAL 4.2. Proper place of installation The thermostat is designed for indoor installation. No cables are connected to the thermostat, thus it can be placed anywhere. In order to ensure fully efficient operation of the thermostat,... - Page 4 5.3. ECO ECO function if activated with Euroster C6RX module by shortening the ECO input. The range is between 5°C and 35°C. Upon shortening the input, the thermostat maintains the preset temperature.
-
Page 5: Thermostat Settings
EUROSTER 4040TXC6 – INSTALLATION AND OPERATION MANUAL 5.7. 4040TXC6 thermostat operating as the MASTER If the 4040TXC6 thermostat is paired with the first zone of the C6RX module, it automatically becomes the Master thermostat. Setting a vacation with the MASTER thermostat causes switching on the vacation mode in all thermostats assigned to the C6RX module. -
Page 6: Service Settings
EUROSTER 4040TXC6 – INSTALLATION AND OPERATION MANUAL • Heating in advance Activating this function results in switching the heating on earlier in order to obtain the preset temperature at the required time. The time of advance in switching the heating on is calculated with an advanced algorithm, taking into account previous room heat-up times and the current temperature read-out. -
Page 7: Air Conditioning
• Pairing mode It is used to establish the radio connection between the thermostat and the Euroster C6RX module. Each thermostat has a unique number distinguishing it from other ones. It is not possible for any thermostat not paired with the particular C6RX module to interfere with the op- eration of another set. -
Page 8: Battery Saving Function
EUROSTER 4040TXC6 – INSTALLATION AND OPERATION MANUAL BATTERY SAVING FUNCTION In order to activate the battery saving function put the operation mode switch in position. The date and time will not be displayed, the time of thermostat response to the data sent to and from the C6RX module will lengthen to 20 minutes. -
Page 9: Kit Contents
14. SIMPLIFIED DECLARATION OF CONFORMITY P.H.P.U. AS AGNIESZKA SZYMAŃSKA-KACZYŃSKA hereby represents that the type of Euroster 4040TXC6 equipment conforms to the following directives: 2014/30/EU (EMC , 2011/65/EU (RoHS . The complete text of the Declaration of EU conformity is available at the following Internet address: www.euroster.pl... -
Page 10: Warranty Certificate
EUROSTER 4040TXC6 – INSTALLATION AND OPERATION MANUAL WARRANTY CERTIFICATE EUROSTER 4040TXRX thermostat Warranty terms: 1. The warranty is valid for 24 months from the device’s sale date. 2. The claimed thermostat together with this warranty certificate must be supplied to the seller.
