  • Page 2 INSTRUCTIONS FOR USE REF 4207 US Patents: 5,747,953; 6,001,115; 6,013,991 4100 E. Milham Kalamazoo, Michigan (USA) 49001 European Authorized Rep: 269-323-7700 RA/QA Manager 1-800-253-3210 Stryker France ZAC Satolas Green Pusignan Av. de Satolas Green 69881 MEYZIEU Cedex 10/05 4207-001-703 Rev-C www.stryker.com France...

  • Page 3: Intended Use

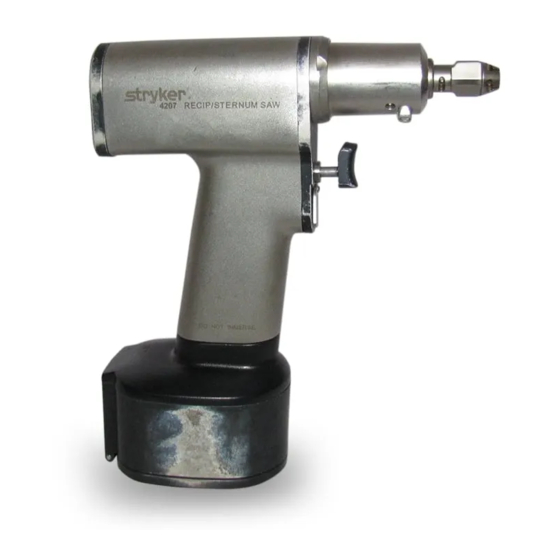

    Important Information Intended Use The Stryker System 5 Battery Powered Heavy Duty WARNING - CAUTION - NOTE Recip/Sternum Saw is a linear cutting device used for cutting away bone and bone related tissue including the Please read this manual and follow its instructions sternum.
  • Page 4 Remove the battery pack from the handpiece when the instrument is not in use. *For further information, contact your Stryker Instruments sales representative or Customer Service at 1-800- 253-3210. Outside the USA, contact your nearest Stryker subsidiary.

  • Page 5: Features And Functions

    Features and Functions • Battery Latch - Depress the latch to release the battery pack from the handpiece. • Battery Pack - Contains a rechargeable battery that provides power to the handpiece. • Safety Switch - The switch allows the cutting tool to operate in RUN or SAFE mode. The switch prevents inadvertent operation of the handpiece.

  • Page 6: Blade Installation

    Instructions Blade Installation Sternum Blade Guard Installation WARNING: NOTE: When the sternum blade guard is used, it can be installed in the orientation shown or rotated 180° (see Always place the safety switch in the SAFE position figure 2). The blade teeth must point away from the before attaching or removing any accessory to prevent sternum blade guard.

  • Page 7: Battery Pack Installation

    Instructions (cont’d) WARNINGS: • If the blade retracts or extends from the end of the sternum blade guard, the blade may cause tissue damage. • Do not grasp the handpiece near the guard actuating button or handle the handpiece in a way that may displace the guard actuating button during use.

  • Page 8: Battery Pack Removal

    Instructions (cont’d) Battery Pack Removal Depress the battery latch and pull the battery pack out. Sternum Guard Removal Rotate the guard actuating button to disengage the sternum blade guard and withdraw it from the hand- piece. Blade Removal Rotate the spring-loaded blade collar clockwise to realign the slots and remove the blade.
  • Page 9 Return the handpiece for repair. *This product is not field repairable. In case of operating difficulties, all Stryker products must be returned to Stryker Instruments for repair. For more information, contact your Stryker Instruments sales representative or call Stryker Customer Service at 1-800-253-3210. Outside the...

  • Page 10: Storage And Handling

    Troubleshooting Guidelines (cont’d) PROBLEM CAUSE ACTION Sporadic electrical interference is expe- Electrical noise is present. Turn off all electrical equipment not in use in the operating room. rienced. Relocate electrical equipment; increase spatial distance. Plug operating room equipment into different operating room outlets. Storage and Handling To ensure the longevity, performance and safety of this equipment, package in original packaging materials when storing or transporting.

  • Page 11: Cleaning Recommendations

    Cleaning Recommendations CAUTION: WARNINGS: DO NOT allow water to run directly into the battery chamber. Minimize the amount of water running into the • Handpieces, accessories and batteries must be guard slot. cleaned and sterilized before first and every use. •...

  • Page 12: Sterilization Recommendations

    Sterilization Recommendations WARNINGS: ETO: • 100% ETO • Handpieces and batteries must be cleaned and • 120-135°F (49-57°C) sterilized before first and every use. • Wrapped in an instrument tray or fully perforated • Remove the sternum blade guard, blade and battery sterilization box from the handpiece prior to sterilization.

  • Page 13: Specifications

    Specifications* Model: REF 4207 Recip/Sternum Saw Size: 7.4 in. [188mm] height (with battery) 1.5 in. [38.1mm] width 7 in. [178mm] length (without sternum blade guard) Weight: 2.5 lbs. [1.13kg] (with battery, but without sternum blade guard) Speed: 11,000 CPM Excursion: 0.152 in.
  • Page 14 Guidance and manufacturer’s declaration - electromagnetic emissions The System 5 handpiece is intended for use in the electromagnetic environment specified below. The customer or the user of the System 5 handpiece should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment - guidance...
  • Page 15 Guidance and manufacturer’s declaration - electromagnetic immunity The System 5 handpiece is intended for use in the electromagnetic environment specified below. The customer or the user of the System 5 handpiece should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level...
  • Page 16 Guidance and manufacturer’s declaration - electromagnetic immunity The System 5 handpiece is intended for use in the electromagnetic environment specified below. The customer or the user of the System 5 handpiece should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level...
  • Page 17 Recommended separation distances between portable and mobile RF communications equipment and the System 5 handpiece The System 5 handpiece is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the System 5 handpiece can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the System 5 handpiece as recommended below, according to the maximum output power of the communications equipment.

  • Page 18: Limited Warranty

    On request, Stryker Instruments will provide a loaner unit for your use while repairs are being made. Please clean and sterilize all potentially contaminated products being sent in for repair, credit, or return of a loaner unit. The policy of Stryker Instruments is not to accept or process potentially contaminated products that do not meet this requirement.
  • Page 21 European Equiv. 4207-001-713 N. European Equiv. 4207-001-731 Japanese Equiv. 4207-001-720 Polish Equiv. 4207-001-750 4100 E. Milham Kalamazoo, Michigan European Authorized Rep: (USA) 49001 RA/QA Manager 269-323-7700 Stryker France 1-800-253-3210 ZAC Satolas Green Pusignan Av. de Satolas Green 69881 MEYZIEU Cedex France...
