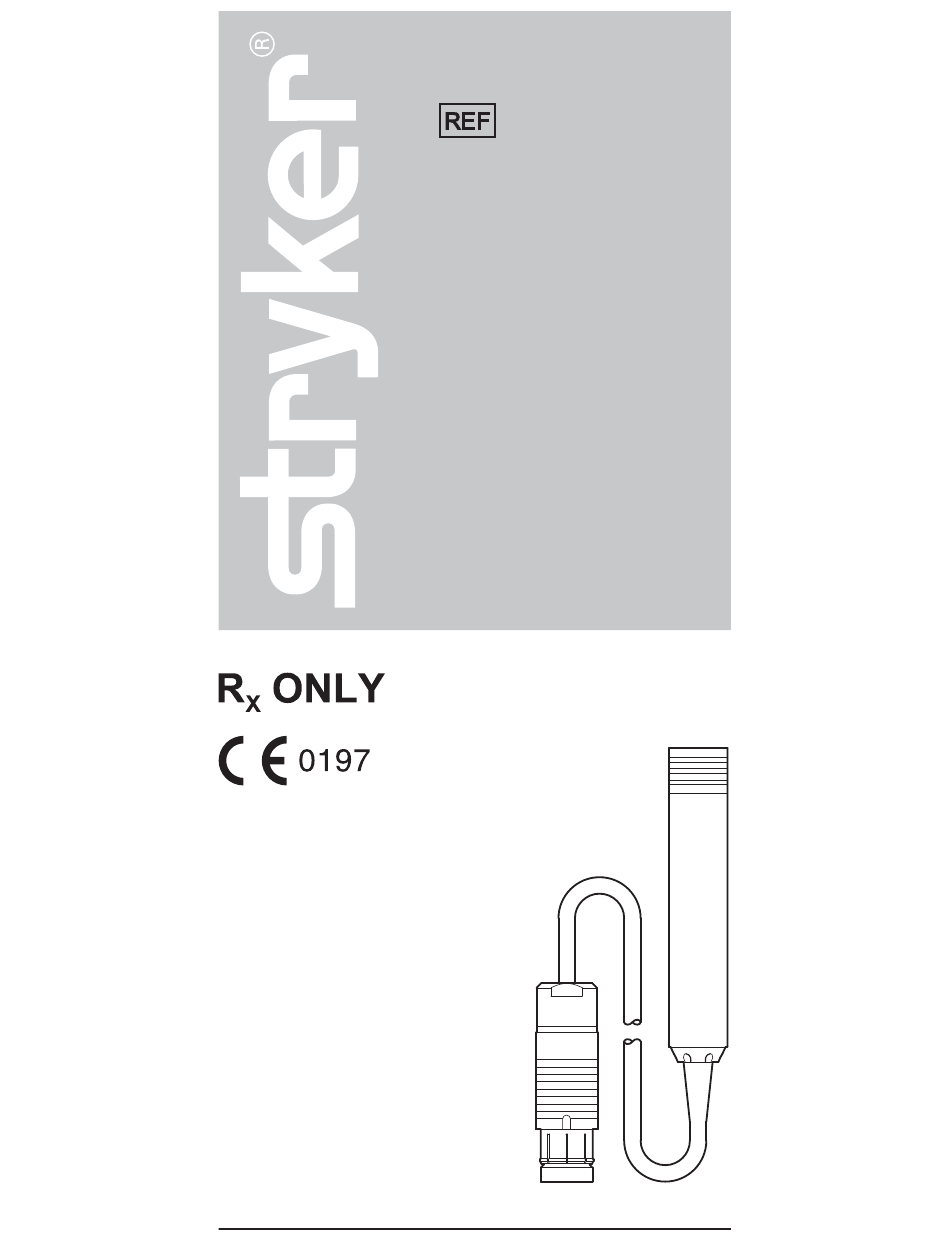

- Page 1 Pi Drive Motor 5407-100-000 Instructions For Use ENGLISH (EN) 2014-10 5407-100-700 Rev- www.stryker.com...
-
Page 2: Table Of Contents
Specifications ......12 Duty Cycle ......13 www.stryker.com... -
Page 3: Introduction
A NOTE supplements and/or clarifies procedural information. Contact Information For additional information, including safety information, in- service training, or current literature, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary. www.stryker.com... -
Page 4: Indications For Use
5407-100-700 Rev- Indications For Use The Pi Drive Motor is intended for use with the Stryker Consolidated Operating Room Equipment (CORE™) System. When used with a variety of attachments and cutting accessories, the motor is intended for use in cutting, drilling, reaming, decorticating,... -
Page 5: User/Patient Safety
The healthcare professional performing any procedure is responsible for determining the appropriateness of this equipment and the specific technique used for each patient. Stryker, as a manufacturer, does not recommend surgical procedure or technique. ▪ Upon initial receipt and before each use, operate the equipment and inspect each component for damage. -
Page 6: Accessories
▪ For a complete list of accessories, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary. The following Stryker-approved accessories are sold separately:... -
Page 7: Features
The symbols located on the equipment and/or labeling are defined in this section or in the Symbol Definition Chart. See the Symbol Definition Chart supplied with the equipment. SYMBOL DEFINITION General warning sign Alignment mark (motor) Alignment mark (plug) www.stryker.com... -
Page 8: Instructions
See the Specifications section. ▪ DO NOT place the motor on a patient. Failure to comply may result in a burn injury. NOTE: See the instructions for use supplied with the console for additional information about motor operation. www.stryker.com... - Page 9 4. Apply pressure to a footswitch pedal to activate the motor. 5. After operation, disconnect the plug from the console. 6. Remove the attachment and cutting accessory from the motor. See the instructions for use supplied with the attachment. www.stryker.com...
-
Page 10: Care Instructions
Troubleshooting WARNING: DO NOT disassemble or service this equipment without the authorization of the manufacturer. NOTE: For service, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary. PROBLEM... - Page 11 See the care cleaning method instructions manual was used, resulting supplied with the in motor damage. motor. Return the motor to Stryker for repair. The cutting The motor is Return the motor to accessory will not damaged. Stryker for repair.
-
Page 12: Specifications
NOTE: When in use, portions of the attachments are applied parts. See the instructions for use supplied with the attachments for information specific to applied parts. Model: Pi Drive Motor (REF 5407-100-000) Dimensions: 111.1 mm length 17 mm diameter Cord Length: 4.6 m... -
Page 13: Duty Cycle
(REF 5400-210-0XX series) 10 times PD Series Saber Straight 20 seconds on/ 45 minutes M-Attachment 20 seconds off, (REF 5400-210-050S1) 10 times PD Series Maestro 20 seconds on/ 30 minutes DuraGuards and ADDG 20 seconds off, (REF 5400-210-XXX series) 5 times www.stryker.com... - Page 16 ES/DE/FR/IT/NL 5407-100-710 JA/ZH/KO 5407-100-720 SV/DA/FI/PT/NO 5407-100-730 PL/EL 5407-100-750 Stryker Instruments 4100 E. Milham Kalamazoo, Michigan (USA) 49001 1-269-323-7700 1-800-253-3210 2014-10 5407-100-700 Rev- www.stryker.com...
