Stretcher Chair
5050
5051
Operations Manual
2017/05 A.1
5050-109-001 REV A
www.stryker.com

Advertisement

Table of Contents
loading

Related Manuals for Stryker 5050

Summary of Contents for Stryker 5050

  • Page 1 Stretcher Chair 5050 5051 Operations Manual 2017/05 A.1 5050-109-001 REV A www.stryker.com...
  • Page 2 sample text...
  • Page 3 Symbols Operating instructions General warning Caution No pushing Catalogue number Serial number For US Patents see www.stryker.com/patents CE mark EC REP Manufacturer Safe working load Type B applied part www.stryker.com 5050-109-001 REV A...
  • Page 4 sample text...

  • Page 5: Table Of Contents

    Positioning the product in Trendelenburg....................11 Positioning the product in Reverse Trendelenburg..................11 Raising or lowering the siderails ......................12 Raising and lowering the Fowler backrest (Model 5050) ................12 Raising and lowering the Fowler backrest (Model 5051) ................13 Adjusting the footrest ......................... 14 Positioning the foot section in dependent (chair) mode................
  • Page 6 Table of Contents Preventive maintenance ........................... 27 5050-109-001 REV A www.stryker.com...

  • Page 7: Warning/Caution/Note Definition

    Note: Provides special information to make maintenance easier or important instructions clearer. www.stryker.com 5050-109-001 REV A...

  • Page 8: Summary Of Safety Precautions

    Do not steam clean, pressure wash, hose off, or ultrasonically clean mattresses. These methods of cleaning may void this product’s warranty. • Always disinfect the mattress between patients. Failure to do so could result in cross-contamination and infection. 5050-109-001 REV A www.stryker.com...

  • Page 9: Pinch Points

    Failure to follow these cleaning instructions may void your warranty. Pinch points www.stryker.com 5050-109-001 REV A...

  • Page 10: Introduction

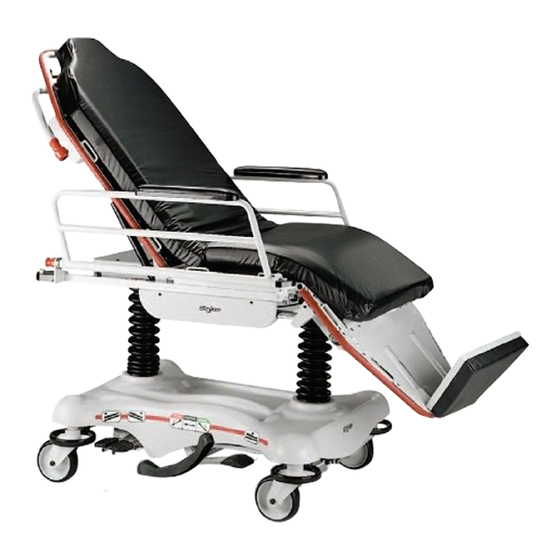

    Product description The Stryker Model 5050 and Model 5051 Eye Stretcher Chair is a wheeled stretcher that consists of a platform mounted on a wheeled frame to transport patients in a substantially horizontal position within the interior of a healthcare facility by healthcare professionals or trained representatives of the healthcare facility.
  • Page 11 24 in. x 74 in. 61 cm x 188 cm Siderails ±45° Standard 10 in. x 31 in. 25 cm x 79 cm Caster diameter/width 6 in. 15 cm Stryker reserves the right to change specifications without notice. www.stryker.com 5050-109-001 REV A...

  • Page 12: Product Illustration (Model 5050)

    Head piece, enhanced clearance Brake/steer pedal Pump pedal Bumper Siderail Siderail locking latch Casters Uni-lower pedal Footrest Fowler backrest, pneumatic Contact information Contact Stryker Customer Service or Technical Support at: 1-800-327-0770. Stryker Medical 3800 E. Centre Avenue 5050-109-001 REV A www.stryker.com...

  • Page 13: Serial Number Location

    Portage, MI 49002 To view your operations or maintenance manual online, see https://techweb.stryker.com/. Have the serial number (A) of your Stryker product available when calling Stryker Customer Service or Technical Support. Include the serial number in all written communication. Serial number location Date of manufacture The year of manufacture is the first 2 digits of the serial number.

  • Page 14: Operation

    To lower the entire litter, press on both pedal (B) and pedal (C) at the same time. To lower the head end of the litter, depress pedal (B). To lower the foot end of the litter, depress pedal (C). 5050-109-001 REV A www.stryker.com...

  • Page 15: Positioning The Product In Trendelenburg

    Positioning the product in Reverse Trendelenburg CAUTION • Always remove any devices that may be in the way before you raise or lower the litter. • Do not raise the product (hydraulics on base) with a patient lift under the product. www.stryker.com 5050-109-001 REV A...

  • Page 16: Raising Or Lowering The Siderails

    To lower the siderails, pull out on the locking latch. Lower the siderail to the full down position. Note: The siderail will be tucked beneath the litter when you lower the siderail to the full down position. Raising and lowering the Fowler backrest (Model 5050) WARNING •...

  • Page 17: Raising And Lowering The Fowler Backrest (Model 5051)

    Operation Raising and lowering the Fowler backrest (Model 5050) (Continued) Figure 2: Fowler backrest Raising and lowering the Fowler backrest (Model 5051) WARNING • Always keep hands and fingers clear of the Fowler backrest release handles and the Fowler backrest frame when you lower the Fowler.

  • Page 18: Adjusting The Footrest

    To put the foot section in dependent (chair) mode, rotate the red handle (A), located on both sides of the foot section, toward the head end of the product (Figure 4 on page 14). Figure 4: Position of red handle in dependent (chair) mode 5050-109-001 REV A www.stryker.com...

  • Page 19: Positioning The Foot Section In Independent Mode

    To raise the push bar, support the push bar and pull the red release knob (A). Swing the push bar into the full up position it latches. Figure 5: Red release knob www.stryker.com 5050-109-001 REV A...

  • Page 20: Removing And Installing The Mattress

    Figure 6: Positioning the articulating headpiece Squeeze left handle (B) under the head section to release the latch. Rotate the head section on axis “B” (neck). Note: For ease of use, release only one latch at a time. 5050-109-001 REV A www.stryker.com...

  • Page 21: Accessories

    Accessories These accessories may be available for use with your product. Confirm availability for your configuration or region. Call Stryker Customer Service: 1-800-327-0770. Name Part number Accessory rail, surgery (Model 5051) 5051-531-010 Air delivery/drape support 1068-168-000 Adjustable arm board without clamp (Model 5051)

  • Page 22: Installing The Drape Support And Air Delivery System

    The optional drape support air delivery system has a flexible drape support with air tubing inside the support for patient comfort. Place the mounting tab (A) into the IV socket at the head end of the product. 5050-109-001 REV A www.stryker.com...

  • Page 23: Attaching And Positioning The Removable Iv Pole

    Insert the IV pole into a socket at the head end or foot end of the product. Turn the knob (A) counterclockwise and pull up on the telescoping portion (B) until you reach the desired height. Turn the knob (A) clockwise to lock the telescoping portion in place. www.stryker.com 5050-109-001 REV A...

  • Page 24: Attaching The Tethered Iv Pole

    To raise the height of the pole, turn the knob (B) counterclockwise. Pull up on the telescoping portion (A) until you reach the desired height (Figure 10 on page 21). To lock the telescoping portion into place, turn the knob (B) clockwise. 5050-109-001 REV A www.stryker.com...

  • Page 25: Locating The Patient Restraint Strap Tie-Ins

    Always refer to the applicable state and federal restrictions and regulations and the appropriate facility protocols before you use any restraint strap or device. To install the patient restraint straps, see Figure 11 on page 22 for patient restraint strap tie-in locations on the litter assembly. www.stryker.com 5050-109-001 REV A...
  • Page 26 Accessories Locating the patient restraint strap tie-ins (Continued) Figure 11: Restraint strap tie-in locations 5050-109-001 REV A www.stryker.com...

  • Page 27: Cleaning

    The life of the mattress can be affected by an increase in frequency of usage which might include more frequent cleaning and disinfection. Use a clean, soft cloth to wipe down the entire mattress with a mild soap and water solution to remove foreign material. www.stryker.com 5050-109-001 REV A...

  • Page 28: Remove Iodine

    Use standard household cleansers or vinyl cleansers and a soft bristle brush on troublesome spots or stains. Pre- soak dried-on soil. Laundering Laundering is not recommended. Laundering may substantially decrease the useful life of the mattress. 5050-109-001 REV A www.stryker.com...

  • Page 29: Disinfecting

    Phenolic disinfectant (active ingredient - o-phenylphenol) • Chlorinated bleach solution (5.25% bleach diluted 1 part bleach to 100 parts water which equals 520 ppm available chlorine (40 mL of a 5.25% bleach solution per 4000 mL water)) www.stryker.com 5050-109-001 REV A...
  • Page 30 • Frequent or prolonged exposure to higher concentrations of disinfectant solutions may prematurely age the cover fabric. • The use of accelerated hydrogen peroxides or quaternaries that contain glycol ethers may damage the cover. 5050-109-001 REV A www.stryker.com...
  • Page 31 Remove product from service before you perform the preventive maintenance inspection. Check all items listed during annual preventive maintenance for all Stryker Medical products. You may need to perform preventive maintenance checks more often based on your level of product usage. Service only by qualified personnel.
  • Page 32 Stryker Medical 3800 E. Centre Avenue Portage, MI 49002 2017/05 5050-109-001 REV A www.stryker.com...
