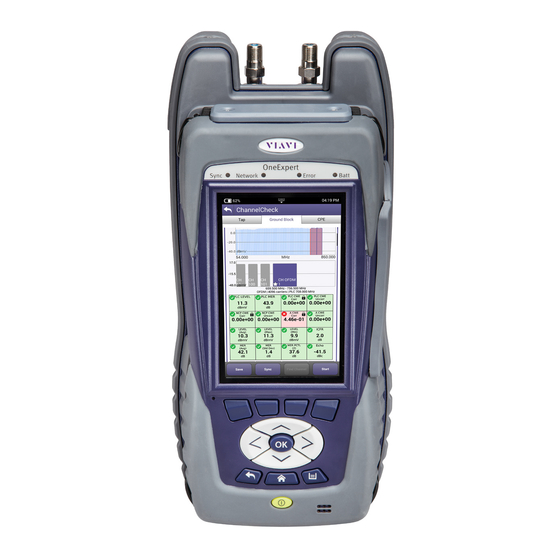

Viavi OneExpert CATV 620 Extended Quick Start Manual

Hide thumbs Also See for OneExpert CATV 620:

Quick start manual (131 pages)

Table Of Contents

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

page of 115

/ 115
Bookmarks

Quick Links

April 2020

OneExpert

CATV 620

Extended Quick Start Guide v12.1

viavisolutions.com

Need help?

Do you have a question about the OneExpert CATV 620 and is the answer not in the manual?

Questions and answers

Summary of Contents for Viavi OneExpert CATV 620

Page 2 ▪ Software and Firmware Upgrades ▪ Wiring Tools ▪ USB Firmware Upgrades ▪ Port Discovery ▪ StrataSync Firmware Upgrade ▪ Hub Flash ▪ Firmware Recovery ▪ Ping Tool viavisolutions.com viavisolutions.com © 2020 VIAVI Solutions Inc. © 2020 VIAVI Solutions Inc.
Page 3: Table Of Contents
MP60/80A USB Power Meter ▪ CATV Measurements ▪ Quick Check ▪ Spectrum ▪ ▪ HL Leakage Option and Transmitter ▪ Ingress Scan ▪ Channel Check ▪ DOCSIS Check ▪ One CHECK viavisolutions.com viavisolutions.com © 2020 VIAVI Solutions Inc. © 2020 VIAVI Solutions Inc.
Page 4 Will assist you in using/configuring products or address calibration, Return Material Authorization (RMA) request, issues regarding product performance. services quotation, order status. T : +1-844 GO VIAVI (+1-844-468-4284) T : 1-844 GO VIAVI (+1-844-468-4284) E: catvsupport@viavisolutions.com E: NAM.CustomerCare@viavisolutions.com For access to online technical and product support: https://www.viavisolutions.com/en-us/services-and-...
Page 5 OneExpert CATV Overview viavisolutions.com viavisolutions.com © 2020 VIAVI Solutions Inc. © 2020 VIAVI Solutions Inc.
Page 6 Port 1 – RF OneExpert CATV Interfaces Ingress Port US/DS Analysis Upstream DOCSIS, QAM Ingress and D-Ring Dual 10/100/1000 RJ45 Ports Dual USB 2.0 Ports D-Ring Battery Charger – Under Flap © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 7 ▪ SOLID RED indicates that the charging was BACK, HOME and UTILITY suspended due to overheating Buttons ▪ SOLID AMBER indicates that the battery is charging POWER O/I Button © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 8 Battery Replacement viavisolutions.com © 2020 VIAVI Solutions Inc. © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 9 Mainframe. There is risk of damaging this backplane connector if the unit is pulled apart without exercising the proper caution. A single screw hold the battery compartment lid in place © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 11 RF Barrel and Collar Replacement viavisolutions.com viavisolutions.com © 2020 VIAVI Solutions Inc. © 2020 VIAVI Solutions Inc.
Page 12 RF ports to the recommended torque specification of 20 in-lbs. (1.6 ft-lbs.). After some use these F-81 adapters may need to be replaced. When replacing these adapters, an F- 81 adapter with similar dimensions and specifications is recommended. viavisolutions.com © 2020 VIAVI Solutions Inc.
Page 13 The reinforcing strength provided by the collar requires the collar to be firmly held in place by the F-81 barrel-connector inserted into the ONX’s RF ports. A loose collar will not properly strengthen the F-81 barrel-connector, making it more susceptible to breaking when stressed. viavisolutions.com © 2020 VIAVI Solutions Inc.
Page 14 WARNING: Do NOT overtighten the F-81 adapter into the ONX’s RF port, this can lead to permanently broken RF ports. Also, it is not recommended to use power tools when removing or replacing the F-81 adapters. viavisolutions.com © 2020 VIAVI Solutions Inc.
Page 18 Engineering Mode Hold UTILITY KEY simultaneously during POWER button press. Continue to hold UTILITY KEY until LEDs flash ORANGE, then release UTILITY KEY viavisolutions.com © 2020 VIAVI Solutions Inc.
Page 20 ▪ It can be reached by selecting the HOME screen button above the On/Off Button ▪ Back Button from any test also returns the user to the HOME screen © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 21 TEST FUNCTION ICONS can also be rearranged like a mobile device Each MENU option is labeled and can be opened or collapsed by the triangle buttons to the right viavisolutions.com © 2020 VIAVI Solutions Inc.
Page 23 HELP – Provides TAC phone numbers TUTORIAL – Future enhancement to delivery video tutorials to the OneExpert CATV WORKFLOW MANAGER - Future enhancement TEMPLATES – Use to switch between multiple templates and configurations © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 24 Utility Menu – Screenshot Creation Select SCREENSHOT from the UTILITY menu, a prompt to save the screenshot will appear A long push on UTILITY menu key will also automatically start a screen capture viavisolutions.com © 2020 VIAVI Solutions Inc.
Page 26 D PAD or swiping with a finger Select SYSTEM SETTINGS From SYSTEM SETTINGS, the user can set up the meter a variety of ways © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 27 Date and Time Select DATE AND TIME and make sure that TIME SYNCHRONIZATION is set to STRATASYNC This is important because test data will be time stamped © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 28 ONX battery life Recommended values are shown to the right. However, if POWER OFF DELAY needs to be set higher in order to accommodate technician’s pace, select appropriate time © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 29 Customizing the Home Screen Select HOME SCREEN to customize which measurement bundles are available on the HOME screen of the OneExpert CATV Technicians are invited to customize as needed © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 30 Select HARDWARE & SOFTWARE REVISIONS to verify the most up to date FIRMWARE is installed Additionally, OneExpert CATV Serial Number (listed as Unit ID) and CM MAC Addresses (used in provisioning of the onboard Cable Modem) © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 31 CATV Settings viavisolutions.com © 2020 VIAVI Solutions Inc. © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 32 CATV Settings Navigate from the HOME screen to CATV SETTINGS ▪ IPv4 or IPv6 ▪ Tilt ▪ Sweep ▪ Diplex ▪ Digital Measurement ▪ Channel Plan Build Settings © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 37 Software and Firmware Updates viavisolutions.com viavisolutions.com © 2020 VIAVI Solutions Inc. © 2020 VIAVI Solutions Inc.
Page 38 Software and Firmware Upgrades ▪ Software (SW) and Firmware (FW) releases are the best way to ensure your VIAVI OneExpert is functioning at its best ▪ VIAVI delivers SW and FW easily via StrataSync and USB Stick ▪ All OneExpert units should be upgraded to the latest production software release – available through StrataSync (or your Viavi representative) ▪...
Page 39 USB thumb drive. ▪ Press Cancel once the download has completed and you have placed the file on the USB thumb drive. Note: Firmware must be downloaded from StrataSync first © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 41 Ethernet Software Upgrade via StrataSync © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 42 Press and release power key as normal while continuing to hold down on the left softkey+ right softkey+ up arrow until you see the seconds). software update screen appear (about 20-30 © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 43 StrataSync Synchronization viavisolutions.com viavisolutions.com © 2020 VIAVI Solutions Inc. © 2020 VIAVI Solutions Inc.
Page 44 Note - You can synchronize to StrataSync via RF or WiFi, but this is ONLY for sending test files, receiving configuration information like limit plans, etc. - not for SW/FW upgrades Connect an Ethernet cable from an active internet connection (Cable Modem or router/gateway) to Port 1 on the ONX © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 45 From the ONX home screen navigate to SYSTEM Connect with WiFi from an active internet connection NETWORK / WIFI - Verify the ONX has a valid IP (Cable Modem or router/gateway) address © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 46 Make sure that CM MAC 1 is provisioned in the billing system Once CONNECTION STATUS reports a GREN Check mark and Select the CONNECTION APP from CATV INTERFACE: RF; IP ADDRESS is shown © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 47 StrataSync Synchronization – ETHERNET, WIFI and RF STRATASYNC ACCOUNT ID = xxxxxxxxx After IP Address verification, navigate to SERVER ADDRESS = stratasync.jdsu.com the SYSTEM Menu and select (stratasync.viavisolutions.com also works) STRATASYNC SERVER PORT = 443 © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 48 Mobile Tech viavisolutions.com © 2020 VIAVI Solutions Inc. © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 49 MOBILE TECH APP Search for VIAVI and download VIAVI MOBILE TECH v3.1 app * Screenshots shown on iPhone, but MOBILE TECH APP on ANDROID is consistent © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 50 On ONX620 or 630, enable BLUETOOTH by going to SYSTEM SETTINGS- >BLUETOOTH SETTINGS or by dragging down the TRAY and selecting BLUETOOTH and making sure it illuminates in GREEN © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 51 MOBILE TECH APP – Set Up Select the appropriate OneExpert CATV serial number from the list of BLUETOOTH CONNECTIONS and pair OneExpert CATV will flash a pairing request message, select © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 52 MOBILE TECH APP – Set Up Login using USERNAME and PASSWORD If user doesn’t have login credentials – please reach out to local STRATASYNC ADMINISTRATOR © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 53 Whether the SYNC will require WIFI or may use the LTE connection ▫ Whether or not to send usage reports ▫ Comprehensive SYNC (useful for uploading failure logs) ▫ Clear local Storage on user phone © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 54 ▫ The user can also rely on the timed sync setting – which allows the MOBILE TECH APP the ability to sync passively in the background are regular intervals © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 55 ▪ LINK to VIAVI Technical Support ▪ Note – MOBILE TECH APP is interoperable with TB2000, TB4000, TB5800, One EXPERT CATV and a host of other VIAVI Solutions instruments © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 56 MOBILE TECH APP - Remote Display REMOTE DISPLAY allows the user to control the ONX, via BLUETOOTH, and conduct normal meter functions *Requires SmartAccess Anywhere option © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 57 MOBILE TECH APP - LOCAL FILES Allows users the ability to take photos or use photos from their mobile device and upload to StrataSync © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 58 MOBILE TECH APP - Product Support and Documentation © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 60 Ethernet – Tests and Settings From HOME screen, select ETHERNET Once NETWORK UP is indicated with green, select TEST AND SETTINGS © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 61 Ethernet – Speed Check • Default value are for both Downstream/Upstream the same: http://CATVSpeedTest.viavisolutions.com/bigfile.zip • If the upstream URL changes, the file name need to be the same: bigfile.zip © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 62 Stop Test and choose Server Settings on the bottom and enter the Server IP address and then resume. (Only applicable for first test setup) Fallback Server is for second TrueSpeed VNF and can help alleviate queue © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 63 ETHERNET - TrueSpeed Results After test completes, Results are displayed as either the Speedometer or a simple list © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 65 ELECTRICAL ETHERNET port under test Useful in determining if a customer’s switch or router can handle higher speed ethernet services Port 1 or Port 2 can conduct this test © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 66 Additional characteristics can be set to identify ports exhibiting the correct throughput, Duplex config or type © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 68: Fiber Optics Tools
Fiber Optics viavisolutions.com viavisolutions.com © 2020 VIAVI Solutions Inc. © 2020 VIAVI Solutions Inc.
Page 71: Quick Check
Quick Check viavisolutions.com © 2020 VIAVI Solutions Inc. © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 74 Spectrum viavisolutions.com © 2020 VIAVI Solutions Inc. © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 79 A TDR measures reflections based on time. Therefore the correct Velocity of Propagation for the cable to be tested must be chosen first. VoP is essential for accurate distance measurements © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 80 Displayed is a 57’ cable with a splice. The splice is a small reflection at 22’ while the open end of the cable is a larger reflection at 57’. Splice © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 81 HOME TDR displays all 4 events. Markers can be added for relative distances under from the display button. Horizontal Zoom and Pan functions are at the bottom of the display Splice Splitter Open Open © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 82 HL Leakage with Transmitter viavisolutions.com © 2020 VIAVI Solutions Inc. © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 83 4a) Dual band rubber duck antenna Drop or GB ▪ 4b) Near-Field Probe antenna ▪ Used for detecting leaks when attached to OneExpert CATV HL Tx ▪ Tuned for 138MHz and 757.5MHz © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 84 PAUSE and STOP/RETEST will be displayed across the bottom Since HL Leakage is LIVE, select STOP before adjusting the SQUELCH limit Test will run for 5 mins before restarting © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 85: Ingress Scan
Ingress Scan viavisolutions.com © 2020 VIAVI Solutions Inc. © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 88: Channel Check
Channel Check viavisolutions.com © 2020 VIAVI Solutions Inc. © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 94: Docsis Check
DOCSIS Check viavisolutions.com © 2020 VIAVI Solutions Inc. © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 100: One Check
One Check viavisolutions.com © 2020 VIAVI Solutions Inc. © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 101 One Check One Check without HL Leakage Requirement (Default) One Check with HL Leakage Requirement © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 102 One Check User can verify that configurations are correct and up to date by selecting VIEW STRASYNC CONFIGURATION © 2017 Viavi Solutions, Inc. | Viavi Confidential and Proprietary Information...
Page 115 viavisolutions.com...
