Test Note
Radio Altimeter Test Procedure Using the
VIAVI ALT-8000/8015
The VIAVI ALT-8000/8015 RF-Based Portable Radio Altimeter Flight Line Test Set allows replication of in-
flight conditions by simulating altitudes, including climb/descend profiles, to verify your installed system and
isolate a bad component.
This document provides the basic instructions to test an installed system. With little editing, it can be easily
adapted to your aircraft platform for formal procedure development.
Contents
ALT-8000/8015 Test Setup ................................................................................................. Page 1
Altitude Simulation Test via Direct-Connect ............................................................................ Page 5
Altitude Simulation Test via Coupler ...................................................................................... Page 7
Profile Test - Direct or Coupler............................................................................................. Page 9
Radio Altimeter Sensitivity Test - Direct or Coupler ................................................................ Page 13

ALT-8000/8015 Test Setup

Radio altimeter: Ensure the aircraft or bench test fixture is energized, however the radio altimeter should be
in the OFF condition.
ALT-8000/8015:
1. Press the Power On button on the front of the ALT-8000 to power on the test set. See Fig. 1-1.

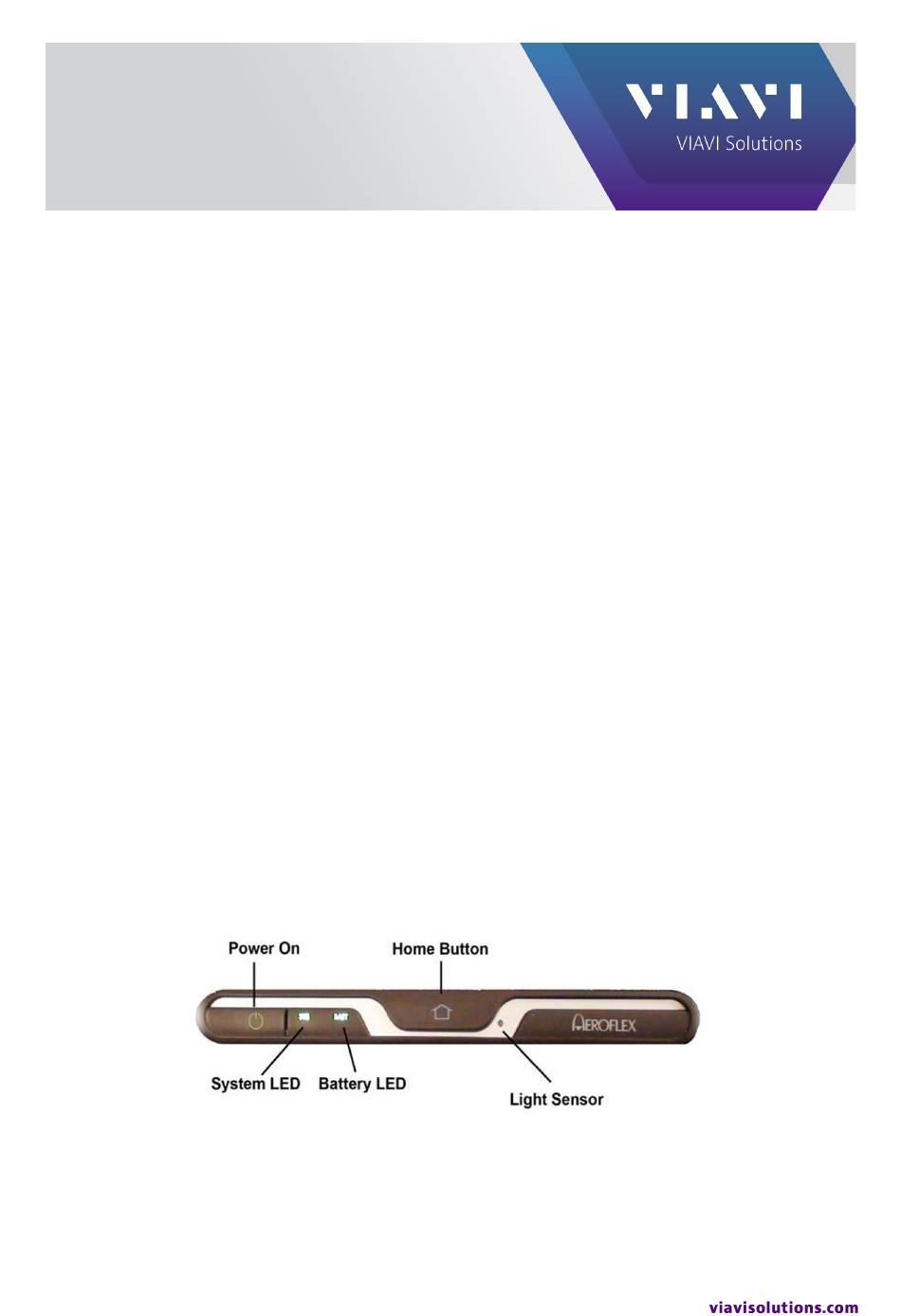

Figure 1-1 Power On Button
