S&A CWUL-05 User Manual

Ultraviolet laser exclusive chiller
Hide thumbs

Advertisement

Quick Links

Download this manual

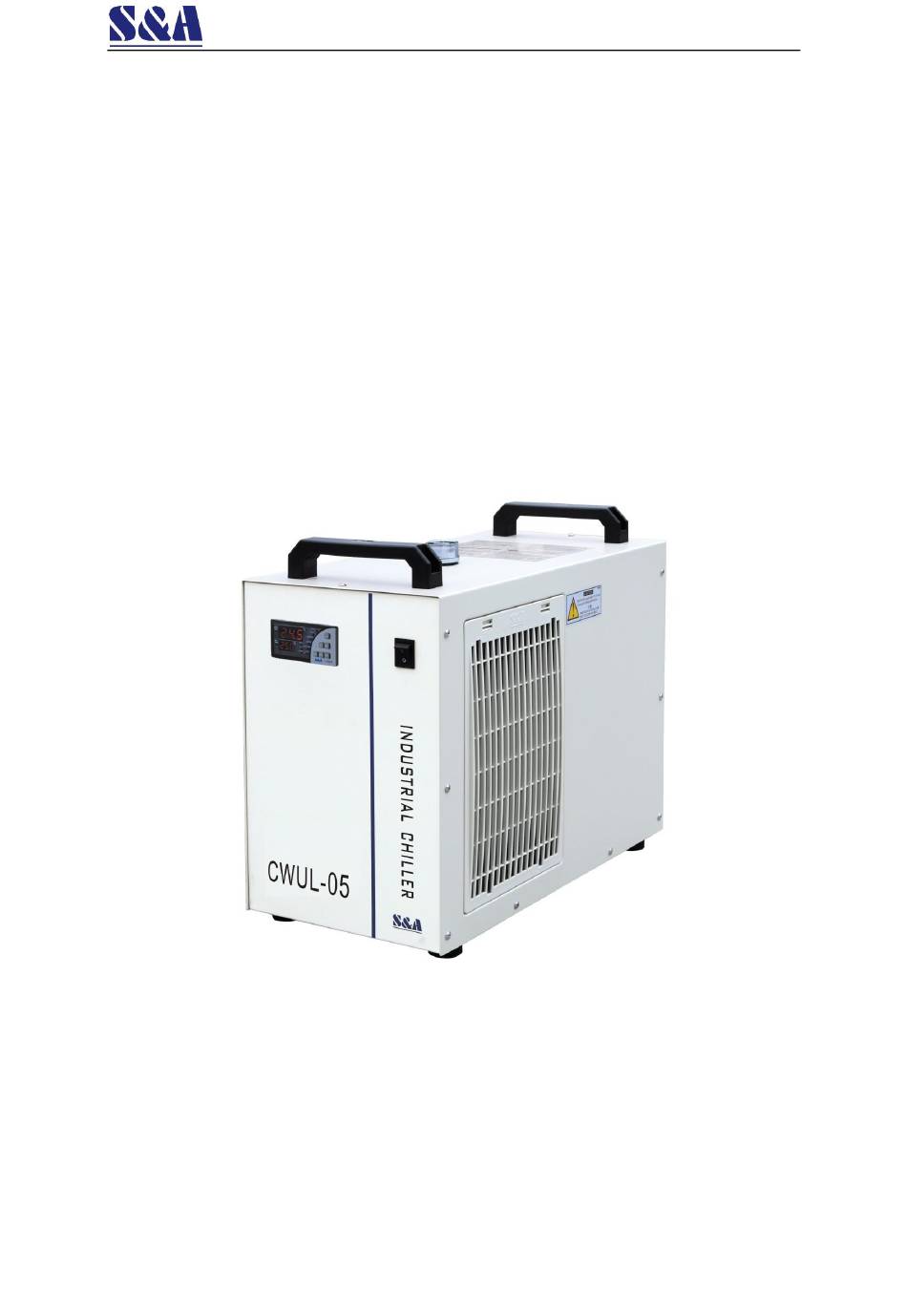

No. 1.1
CWUL-05/10/20
Ultraviolet Laser Exclusive
Chiller
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CWUL-05 and is the answer not in the manual?

Questions and answers

Related Manuals for S&A CWUL-05

Summary of Contents for S&A CWUL-05

  • Page 1 No. 1.1 CWUL-05/10/20 Ultraviolet Laser Exclusive Chiller User Manual...
  • Page 2 CWUL-05/10/20 Series Catalog <1> Cautions --------------------------------------------------------------------- 3 <2> Contour and parts induction ------------------------------------------ 4 <3> Installation ------------------------------------------------------------------ 5 <4> Operation and parameters adjustment ---------------------------- 6 <5> Alarm and output ports ------------------------------------------------- 10 <6> Technical parameters ---------------------------------------------------- 11 <7> Water pump performance curve ------------------------------------- 14...
  • Page 3 CWUL-05/10/20 Series Thank using machine from GUANGZHOU TEYU ELECTROMECHANICAL CO., LTD. Please read the User Manual carefully before use and keep it properly. This User Manual is not a quality warranty book. GUANGZHOU TEYU ELECTROMECHANICAL CO., LTD reserves the rights to the interpretation of any correction of typographical errors, improper mentioned information and product improvement.
  • Page 4 CWUL-05/10/20 Series <2> Outlook and Components TEMPERATURE CONTROLLER POWER SWITCH AIRINLET (FILTER GAUZE) WATER INJECTION PORT POWER SOCKET(WITH FUSE) (WITH FUSE) ALARM OUTPUT TERMINAL COOLING WATER OUTLET COOLING WATER INLET WATER LEVEL GAUGE AIR OUTLET DRAIN...

  • Page 5: Installation

    6. Parameters of temperature controller adjustment Default setting of CWUL-05/10/20 series UV laser chiller temperature controller is 25℃ water temperature cooling UV parameter, usually do not need to adjust the control parameter ,but if special require for specific temperature ,please...
  • Page 6 CWUL-05/10/20 Series <4> Operation status and parameters adjustment Default setting of T-506B new model intelligent temperature controller is Intelligent temperature mode ,water temperature is setting 25℃, customer could adjust the temperature according to requirement. 1.Temperature controller panel introduction (1). Indicators of temperature controller working status:...
  • Page 7 CWUL-05/10/20 Series 2. Restore to default setting Press “ ” buttons at the same time and hold still while turn on the machine, until the controller display “rE”. Release the buttons the controller will enter working status after 6 seconds. And then all parameter value settings restored to default setting.
  • Page 8 CWUL-05/10/20 Series 5、Advanced settings adjustment ” button while press SET button for 5 seconds until 00 （1） Press and hold the displayed in upper window and PAS in lower window. Then press keys to select the password (default setting is 8), and then press the SET button, if the password is correct, F0 displays, entering into setting status, means the temperature controller is under parameter setting status.
  • Page 9 CWUL-05/10/20 Series change the content code to F4, and press SET button enter setting parameter values, press button set the parameter to 5,return to content code after compete setting ,and then press button modifies the content code to F5,press button set up the...
  • Page 10 CWUL-05/10/20 Series <5> Alarm and output terminal In order to guarantee the equipment will not be effected while abnormal situation happens on the chiller, CWUL-05/10/20 series chillers possess alarm protection function. 1. Alarm output terminals and wiring diagram. 2. Alarm causes and working status table.

  • Page 11: Specifications

    CWUL-05/10/20 Series <6> Specifications CWUL-05 Mode CWUL-05AH CWUL-05BH CWUL-05DH Voltage AC 1P 220V AC 1P 110V AC 1P 220V Frequency 50Hz 60Hz 60Hz Current 0.25~2.1A 0.25~2.1A 0.38~2.45A Nominal cooling 0.37KW 0.56KW 0.54KW capacity Refrigerant R-134a Precision ± 0.2℃ Reducer Capillary...
  • Page 12 CWUL-05/10/20 Series CWUL-10 Mode CWUL-10AH CWUL-10BH CWUL-10DH CWUL-10AI CWUL-10BI CWUL-10DI Voltage AC 1P 220V AC 1P 220V AC 1P 110V AC 1P 220V AC 1P 220V AC 1P 110V Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz Current 0.25~2.3A 0.25~2.4A 0.45~4.15A 0.7~2.75A...
  • Page 13 CWUL-05/10/20 Series CWUL-20 Mode CWUL-20AH CWUL-20BH CWUL-20DH CWUL-20AI CWUL-20BI CWUL-20DI Voltage AC 1P 220V AC 1P 220V AC 1P 110V AC 1P 220V AC 1P 220V AC 1P 110V Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz Current 0.25~3.9A 0.25~4.1A 0.45~5.7A 0.7~4.35A...
  • Page 14 CWUL-05/10/20 Series <7> Refrigeration performance curve Performance curve of chiller under ambient temperature 20℃, 30℃ and 40℃:...

  • Page 15: Troubleshooting

    CWUL-05/10/20 Series <8> Troubleshooting Failure Failure Cause Approach Check and ensure the power interface Power cord is not plugged in place and the power plug is plugged in place and in good contact. Machine turned on but Open the electric box cover, check the...
