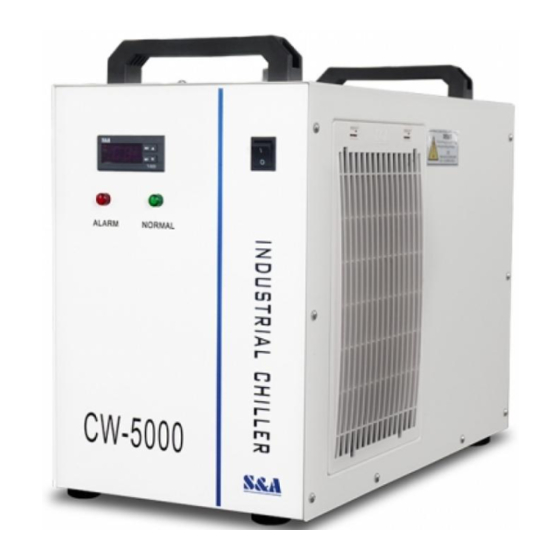

S&A CW-5000 User Manual

S&A CW-5000 User Manual

Industrial chiller

Advertisement

TY-JS-220308-001
CW-5000/5200
Industrial Chiller
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CW-5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for S&A CW-5000

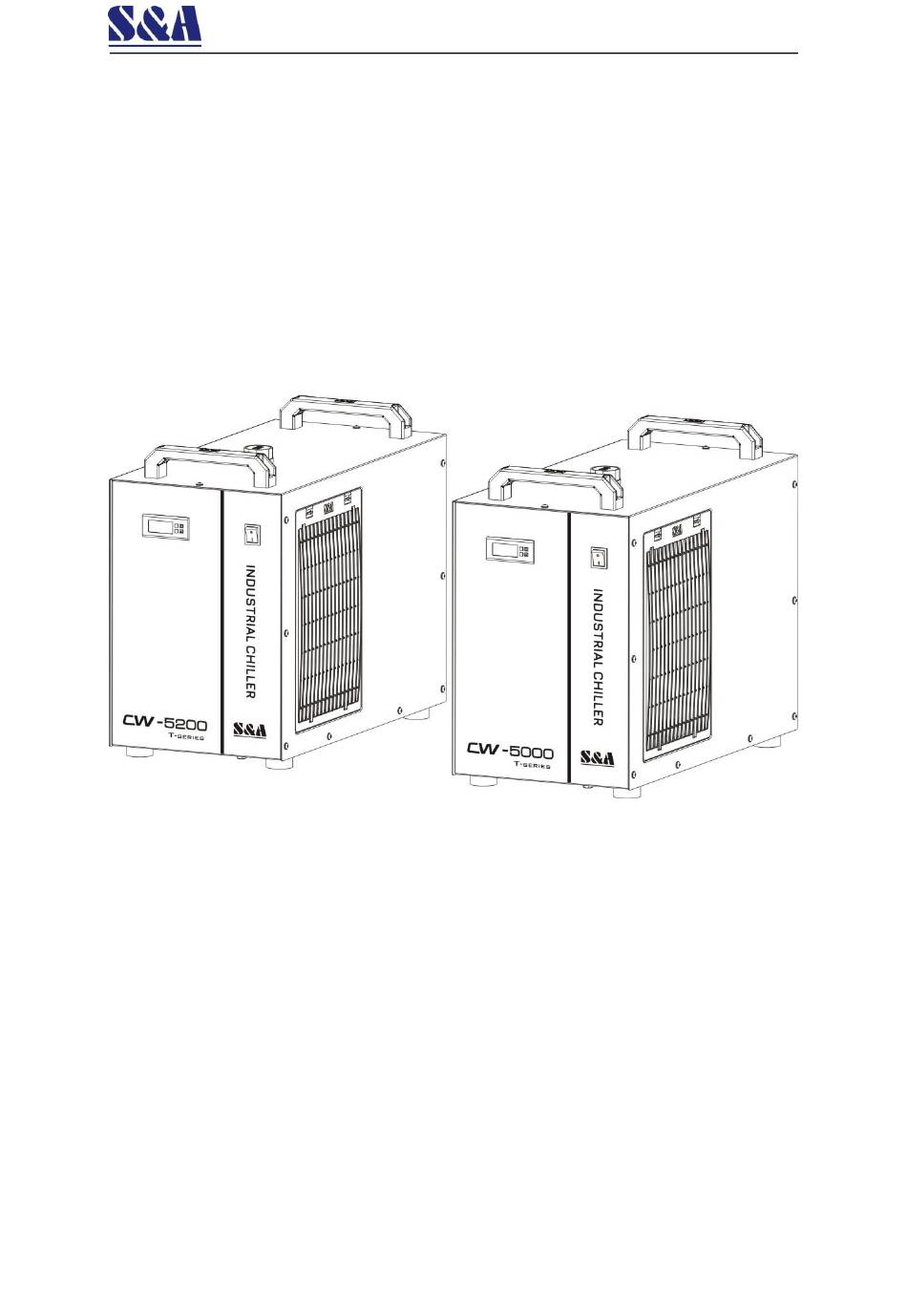

  • Page 1 TY-JS-220308-001 CW-5000/5200 Industrial Chiller User Manual...
  • Page 2 TY-JS-220308-001 FOREWORD Thanks for your purchase of our product. Please read this manual carefully before using and keep it properly so that you can refer to it whenever you need information. This manual is not a quality guarantee. Our company reserves the right to the interpretation of the correction of misprint and improperly described information and product improvement.
  • Page 3: Table Of Contents

    TY-JS-220308-001 CONTENTS Notice-----------------------------------------------------------------------------------------4 I. Overview--------------------------------------------------------------------------------- 7 II.Model Illustration-------------------------------------------------------------------- 7 III.Product Outlines & Parts-------------------------------------------------------- 8 IV.Installation---------------------------------------------------------------------------- 9 V.Operating States &Parameters Adjustment------------------------------- 11 VI.Alarm & Output Terminal-------------------------------------------------------- 13 VII.Maintenance-------------------------------------------------------------------------14 VIII. Simple Troubleshooting ------------------------------------------------------- 15...
  • Page 4: Notice

    TY-JS-220308-001 Notice In order to ensure your personal safety and avoid property loss, you must pay attention to this manual, but not limited to the following warning notices. General electric knowledge and safety standards should also be followed. DANGER Failure to take safety measures will result in death or serious personal injury.
  • Page 5 TY-JS-220308-001 DANGER Failure to take safety measures will result in death or serious personal injury. Notice Operation Guideline The equipment must be firmly fixed during transport and Transport and installation. Otherwise, there will be a danger of tipping or installation falling.
  • Page 6 TY-JS-220308-001 air inlet and 1.5 meters around the air outlet. If the air inlet and the air outlet are blocked, the cooling ability that the equipment should have cannot be realized. a) Make sure that the water supply pipe of equipment is not blocked;...
  • Page 7: Overview

    TY-JS-220308-001 I. Overview This product is an industrial cooling device designed and manufactured for laser cutting, laser welding, laser marking, laser engraving and other equipment that uses laser processing. It can provide a temperature-stable cooling medium for the above application scenarios.
  • Page 8: Product Outlines & Parts

    TY-JS-220308-001 III. Product Outlines & Parts TEMPERATURE CONTROLLER POWER SWITCH AIR INLET (FILTER GAUZE) WATER INJECTION POWER SOCKET (WITH FUSE) ALARM OUTPUT TERMINAL COOLING WATER OUTLET COOLING WATER INLET WATER LEVEL GAUGE AIR OUTLET OUTFALL Note: The above-mentioned product outlines and part names are only for one of the models, and they will be slightly different in different models.
  • Page 9: Installation

    TY-JS-220308-001 IV. Installation 1. Open the package and check whether the machine is in good condition and whether the accessories are complete. 2. Please ensure that the working voltage of the chiller is stable and normal. Because the refrigeration compressor is sensitive to the power supply voltage, the normal working voltage of our company's standard products is 210~240V (110V model is 100~120V).
  • Page 10 TY-JS-220308-001 (1) After turning on the power switch, the circulating pump of the chiller starts to work. When the new machine is turned on for the first time, there will be more air bubbles in the pipeline, which will cause the machine to alarm occasionally, and it will return to normal after a few minutes of operation.
  • Page 11: Operating States &Parameters Adjustment

    TY-JS-220308-001 (2) Exhaust Air After adding water for the first time or replacing water, exhaust the air in the water pump to start use, otherwise the equipment will be damaged. The exhaust method is as follows : Method 1: Under the state of shutting down, after adding water, remove the water outlet and connect the water pipe, drain for 2 minutes, and then install it firmly.
  • Page 12 TY-JS-220308-001 don’t release the buttons until the controller displays rE. The con troller works in normal order in 6s and is restored to factory set tings. 3.Press ▼ key to show t1. Press ▼ key again to show room temperature (Meanwhile D1 is flashing, displaying room temperature); Continue to press ▼...
  • Page 13: Alarm & Output Terminal

    TY-JS-220308-001 Order Code Value in Case 1 Value in Case 2 Items Temperature setting Temperature Difference Values Refrigeration return difference Way of control Alarm for over high water temperature Alarm for over low water temperature Alarm for over high room temperature Password The allowed highest water temperature The allowed lowest water temperature...
  • Page 14: Maintenance

    TY-JS-220308-001 Display Alarm Buzzer OUT H1、H2 OUT H1、H3 Condition code Circulating pump works properly DISCONNECTION BREAKOVER Ultrahigh room temp Sounds BREAKOVER DISCONNECTION Ultrahigh water temp Sounds BREAKOVER DISCONNECTION Ultralow water temp Sounds BREAKOVER DISCONNECTION Faulted room temp sensor Sounds BREAKOVER DISCONNECTION Faulted water temp sensor Sounds...
  • Page 15 TY-JS-220308-001 with spare fuse if necessary and check whether the power supply voltage is stable; Check and ensure the power interface and the power plug is plugged in place and in good contact. Check the water level gauge Flow Alarm,use a display, add water until the level water pipe directly Water level in the storage water tank is...
