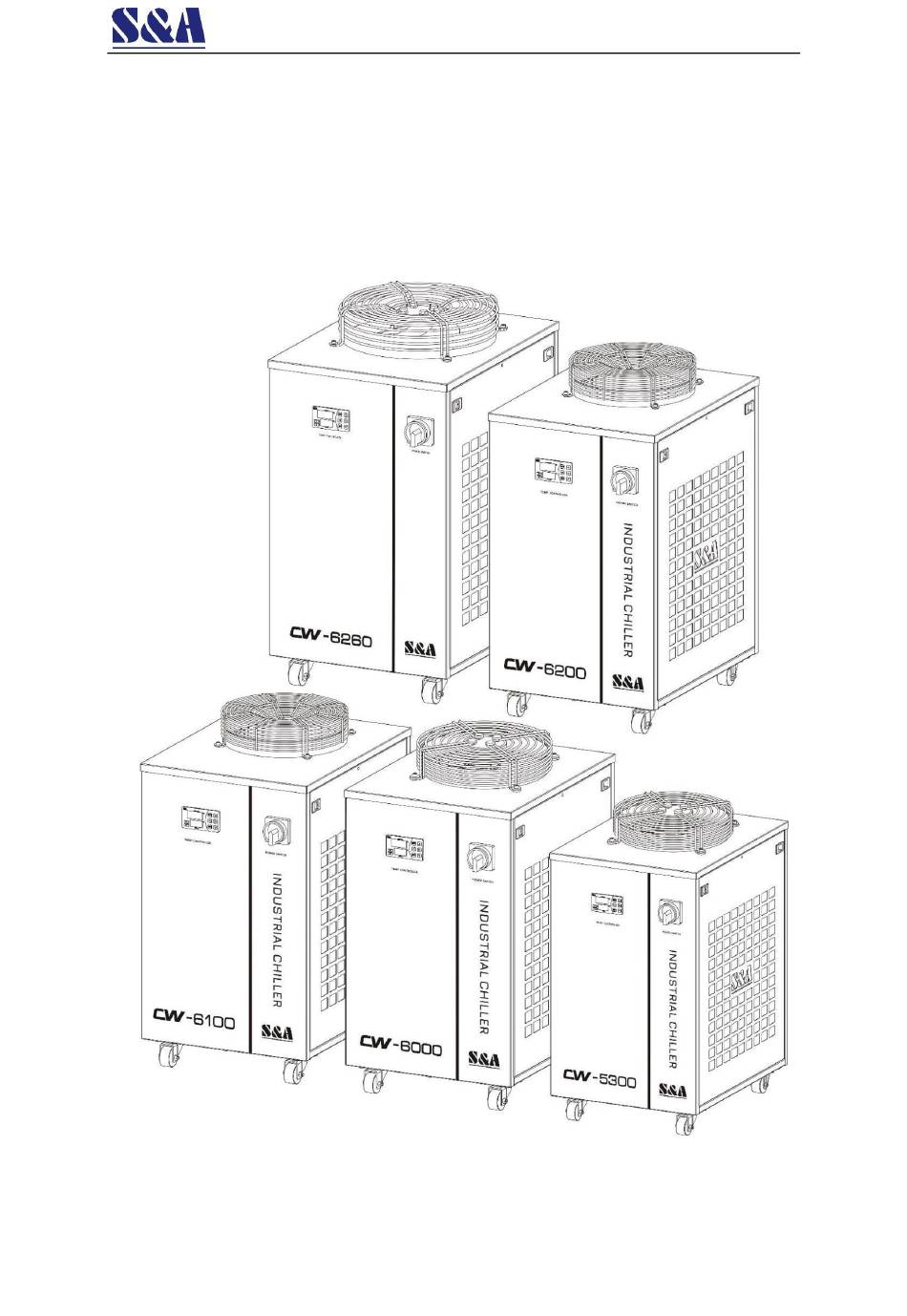

- Page 1 TY-JS-20319-003 CW-5300/6000/6100/6200/6260 Industrial Circulating Chiller Installation & Operation Instructions...
- Page 2 TY-JS-20319-003 FOREWORD Thanks for your purchase of our product. Please read this manual carefully before using and keep it properly so that you can refer to it whenever you need information. This manual is not a quality guarantee. Our company reserves the right to the interpretation of the correction of misprint and improperly described information and product improvement.
-
Page 3: Table Of Contents
TY-JS-20319-003 CONTENTS Notice ........................4 Overview ......................7 Model Illustration ................... 7 III. Product Outlines & Parts ................. 7 IV. Installation ...................... 9 Operating States & Parameter Adjustment ..........11 VI. Alarm & Output Terminal ................13 VII. Maintenance ....................14... -
Page 4: Notice
TY-JS-20319-003 Notice Please strictly adhere to the usage guidelines and requirements provided, as accidents caused by improper operation (or use not in accordance with instructions) will be the responsibility of the user, and our company will not be held liable. Notice Operation Guideline The operation should be... - Page 5 TY-JS-20319-003 Notice Operation Guideline The equipment must be firmly fixed during transport and Transport and installation. Otherwise, there will be a danger of tipping or installation falling. The power cable terminal must be equipped with the electric leakage and overload protection device according to the rated Electrical protection current indicated on the equipment nameplate.
- Page 6 TY-JS-20319-003 a) Make sure that the water supply pipe of equipment is not blocked; b) It is necessary to check the water pipe and the water pump to confirm that there is a proper amount of water entering the Before commissioning water pump and exhaust it through the water pump exhaust valve, otherwise it will cause damage to the water pump;...
-
Page 7: Overview

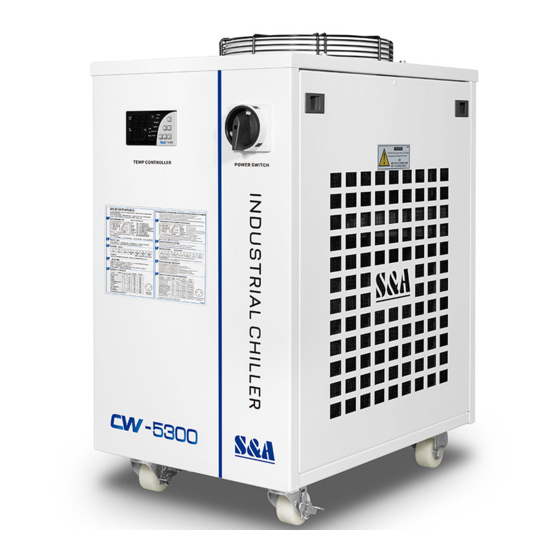

TY-JS-20319-003 I. Overview This product is an industrial cooling device designed and manufactured for laser cutting, laser welding, laser marking, laser engraving and other equipment that uses laser processing. It can provide a temperature-stable cooling medium for the above application scenarios. - Page 8 TY-JS-20319-003 Note: The above-mentioned product outlines and part names are only for one of the models. The outlines and parts installation may be slightly different in different models.
-
Page 9: Installation
TY-JS-20319-003 IV. Installation 1. Open the package and check whether the machine is in good condition and whether the accessories are complete. 2. Please ensure that the working voltage of the chiller is stable and normal. Because the refrigeration compressor is sensitive to the power supply voltage, the normal working voltage of our company's standard products is 210~240V (110V model is 100~120V). - Page 10 TY-JS-20319-003 free of impurities, so as to prevent impurities from entering the waterway and causing blockage or pump failure. 5. Plug in the power cord and turn on the power switch (it is forbidden to start without water). (1) After turning on the power switch, the circulating pump of the chiller starts to work. When the new machine is turned on for the first time, there will be more air bubbles in the pipeline, which will cause the machine to alarm occasionally, and it will return to normal after a few minutes of operation.
-
Page 11: Operating States & Parameter Adjustment
TY-JS-20319-003 (2) Exhaust Air After adding water for the first time or replacing water, exhaust the air in the water pump to start use, otherwise the equipment will be damaged. The exhaust method is as follows ： Method 1: Under the state of shutting down, after adding water, remove the water outlet and connect the water pipe, drain for 2 minutes, and then install it firmly. - Page 12 TY-JS-20319-003 Press “→” key once to enter status display menu and it indicates t1 which suggests temperature of room temperature sensor. Press “→” key twice to indicate t2 which suggests flow rate. (L/min, with 0.1 resolution) Press “→” key three times to return to normal operation. When first powered on, press “↓”...
-
Page 13: Alarm & Output Terminal
TY-JS-20319-003 Case 1: Cooling water temperature is controlled by the intelligent control mode. The required water temperature is from 25℃ to 31℃ and the set water temperature is 3℃ lower than the air temperature. Under the condition of constant air temperature, the fluctuation should not exceed ±0.5℃. -
Page 14: Maintenance
TY-JS-20319-003 2. Alarm causes and working status table. Display Alarm Buzzer H1 and H2 H1 and H3 Condition code Circulating pump works open circuit connected properly Ultra-high room temp Sounds connected open circuit Ultra-high water temp Sounds connected open circuit Ultra-low water temp Sounds connected... - Page 15 TY-JS-20319-003 VIII. Simple Troubleshooting Failure Failure Cause Approach Check and ensure the power interface Power cord is not plugged and the power plug is plugged in place and in good contact. in place Machine turned on but Pull out the fuse box from the power unelectrified supply interface of the chiller, check the fuse,...
- Page 16 TY-JS-20319-003 Attachment – Schematic CW-5300 （flow sensor） CW-5300（flow switch）...
- Page 17 TY-JS-20319-003 CW-6000（flow sensor） CW-6000（flow switch）...
- Page 18 TY-JS-20319-003 CW-6100/6200/6260（flow sensor） CW-6100/6200/6260（flow switch）...
- Page 19 TY-JS-20319-003 Brand: 特域机电 S&A Product Name: Water Chiller Manufacturer's Company Name: Guangzhou TEYU Electromechanical Co., Ltd Manufacturer's Address: No. 50, Zhongchuang Road, Shengshi Industrial Zone, Zhongcun Town, Panyu District, Guangzhou Sales Company: Shanghai Top Nine Industrial Co., Ltd. Seller's Company Address: No.208 Wulian Road, Room164, Shanghai Pudong New District, China, 200129, CN E-mail: coletechcn@126.com TEL: +86 18017012480...
- Page 20 TY-JS-20319-003...
